Product Introduction

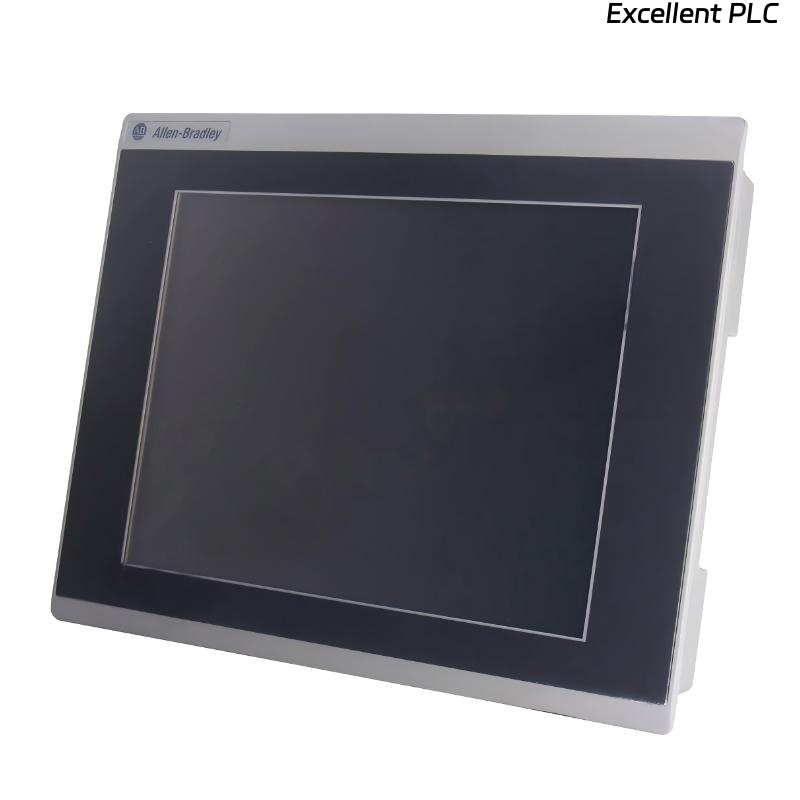

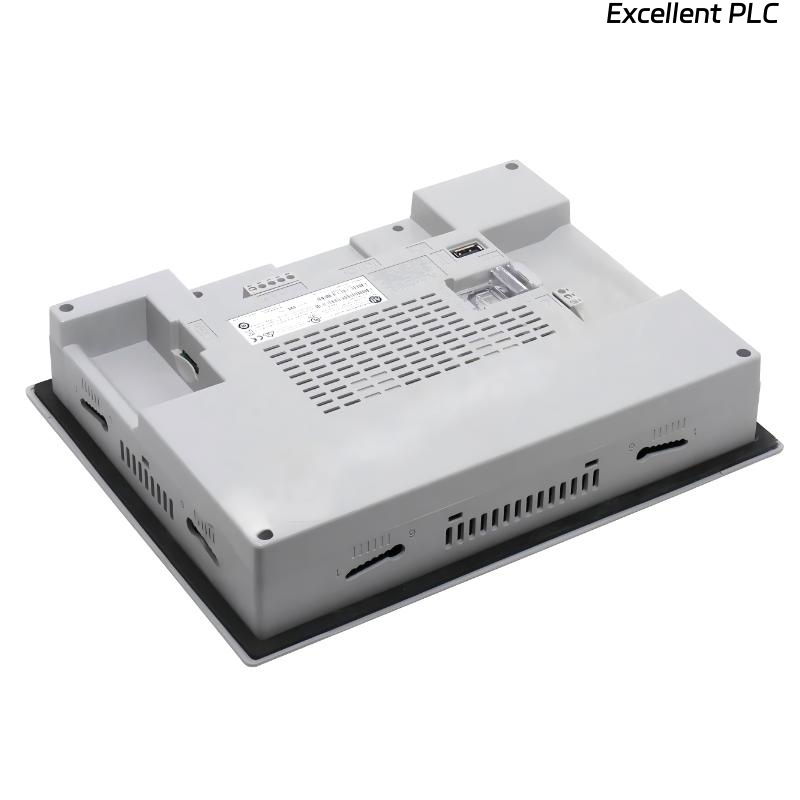

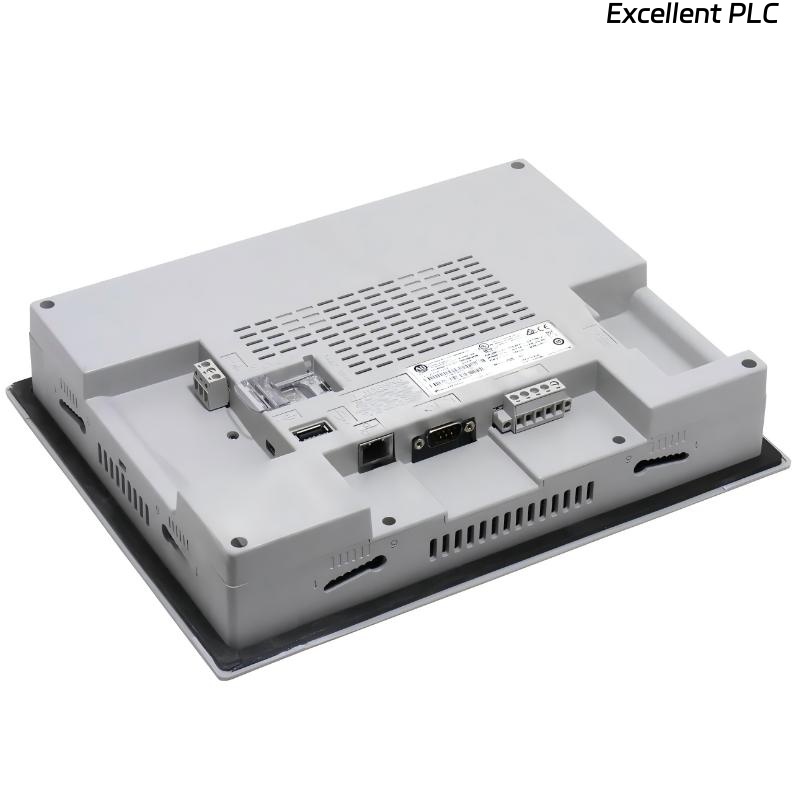

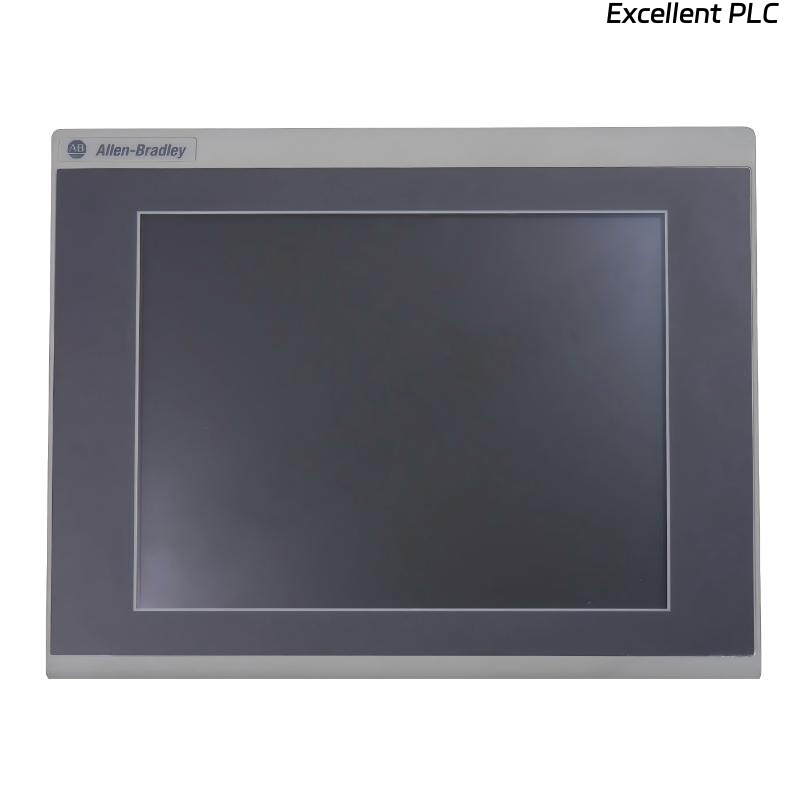

The Allen Bradley 2711R-T10T PanelView 800 HMI Terminal is a versatile and compact human-machine interface designed for industrial automation, process visualization, and machine control applications. Featuring a responsive touchscreen and a 10-inch color TFT display, this terminal provides operators with clear access to machine status, alarms, diagnostics, and operational data in real time.
The PanelView 800 series is developed for small to medium-sized automation systems that require dependable HMI functionality, flexible communication capabilities, and simple integration with industrial controllers. Its 800 × 600 SVGA display resolution delivers sharp graphics and clear text visibility, improving operator interaction and overall system monitoring efficiency.
This model supports Ethernet communication along with RS-232/422/485 serial interfaces, allowing seamless integration with PLC systems, drives, and industrial control devices. Equipped with 256 MB internal storage and 256 MB RAM, the terminal delivers stable performance for industrial visualization applications. Powered by a 24 VDC input supply, the unit is suitable for packaging systems, OEM machinery, material handling equipment, and manufacturing automation environments requiring reliable touchscreen HMI operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 2711R-T10T |
| Series | PanelView 800 |
| Display Size | 10 Inch |
| Display Type | Color TFT Display |
| Resolution | 800 × 600 SVGA |
| Input Method | Touchscreen |
| Communication Port | Ethernet |
| Serial Communication | RS-232/422/485 |
| Internal Storage | 256 MB |
| RAM Memory | 256 MB |
| Input Voltage | 24 VDC |
| Mounting Type | Panel Mount |
| Interface Type | Human Machine Interface (HMI) |
| Display Technology | TFT Color Display |
| Cooling Method | Passive Cooling |
| Application Type | Industrial Operator Terminal |
| Dimensions | 287 × 55 × 225 mm |
| Weight | 1.64 kg |
Applications
• Industrial Automation: Provides real-time monitoring and operator control for automated production systems.
• Packaging Machinery: Suitable for packaging lines, labeling equipment, and filling systems requiring graphical visualization.
• OEM Equipment: Ideal for machine builders requiring reliable touchscreen HMI functionality.
• Material Handling Systems: Supports monitoring and control of conveyor and transport systems.
• Process Visualization: Displays machine status, alarms, diagnostics, and operational data clearly and efficiently.
Advantages
• Large Touchscreen Interface: The 10-inch display improves operator visibility and machine interaction.
• High-Resolution Graphics: SVGA resolution provides sharp text and clear graphical process visualization.
• Flexible Connectivity: Ethernet and RS-232/422/485 communication support broad industrial compatibility.
• Reliable Performance: 256 MB internal storage and RAM ensure stable operation for industrial HMI applications.
• Compact Industrial Design: Panel-mounted construction saves space while maintaining dependable functionality.
• Easy System Integration: Compatible with Allen Bradley PLCs and industrial automation systems.
