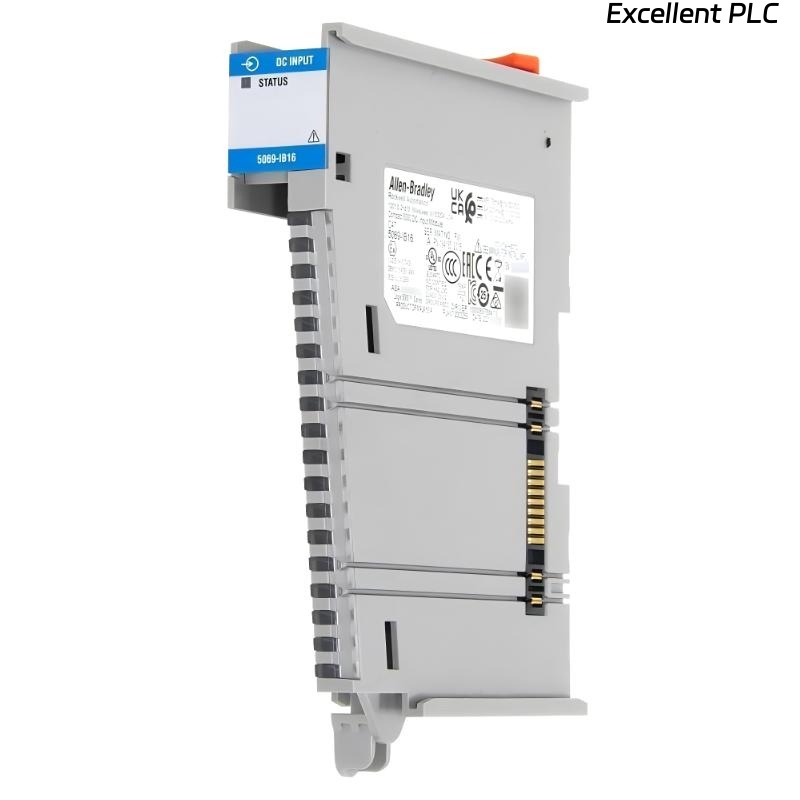

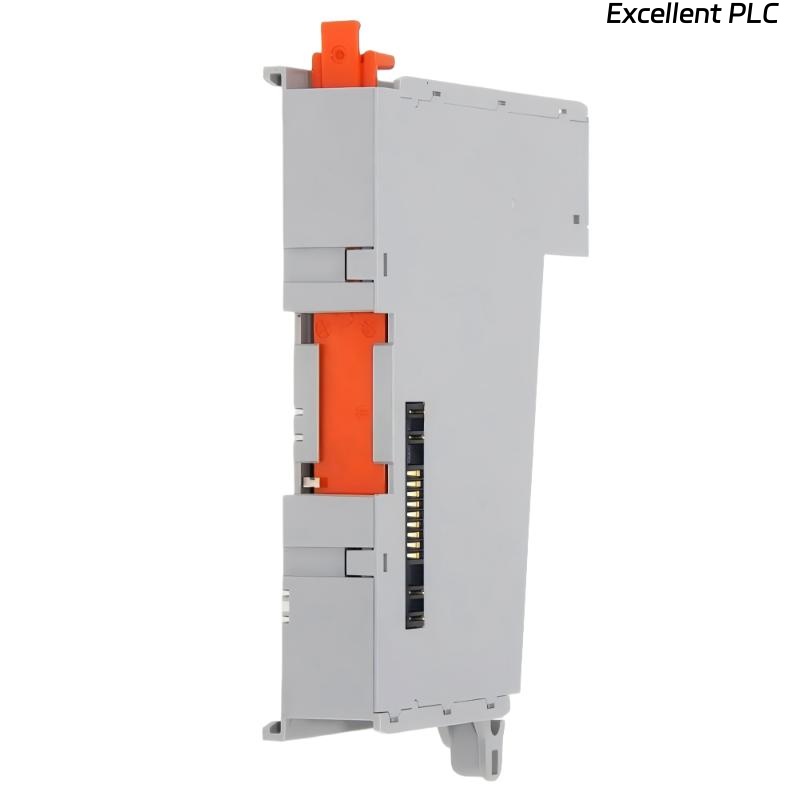

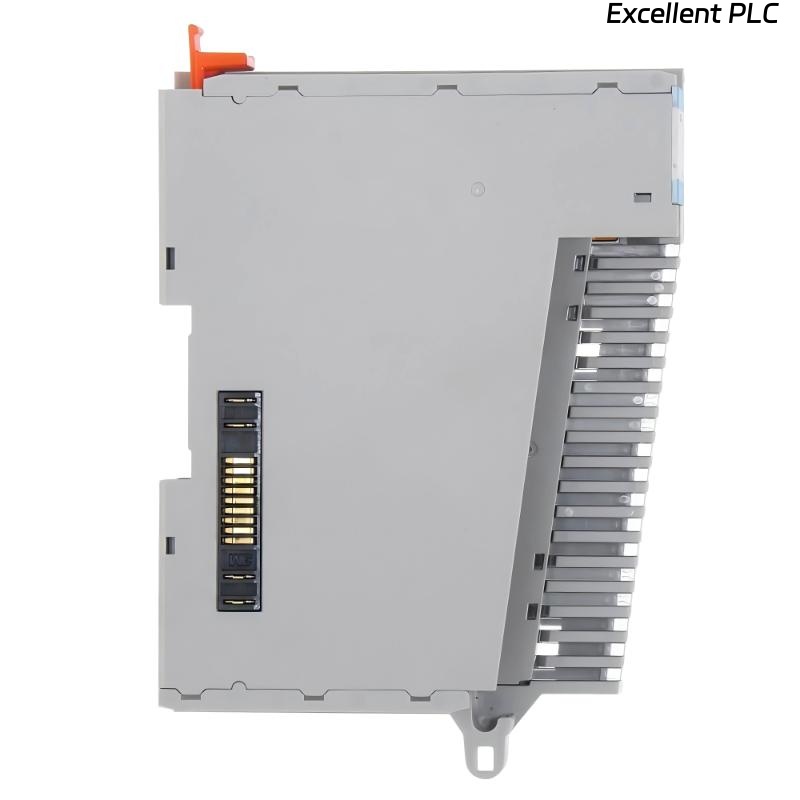

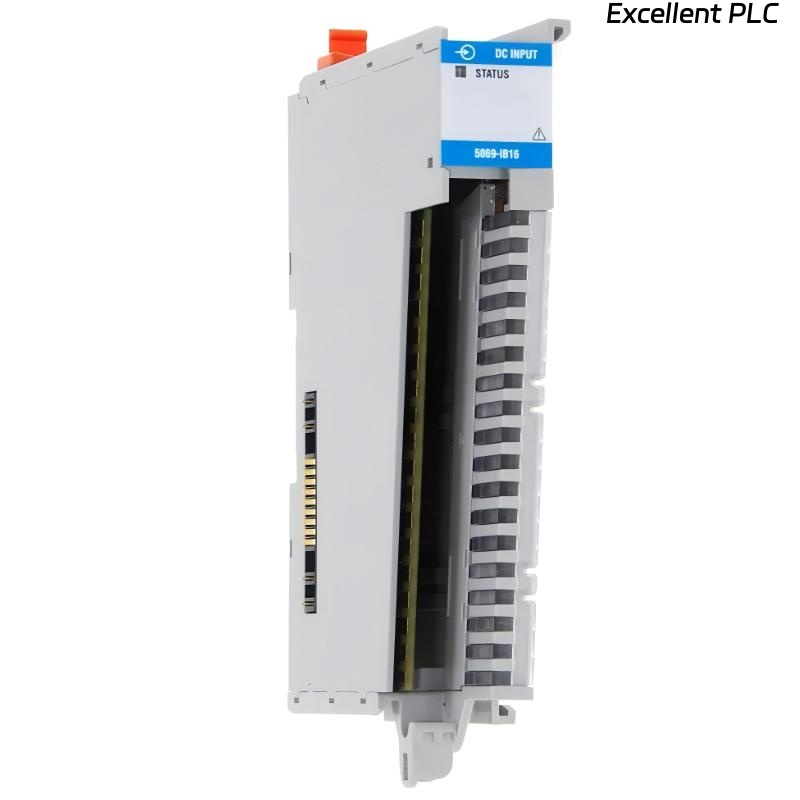

Allen Bradley 5069-IB16 Compact 5000 Digital Sinking Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 5069-IB16 Compact 5000 Digital Sinking Input Module is a high-density industrial input module designed for CompactLogix and Compact 5000 automation platforms. It provides reliable digital signal monitoring for industrial control systems requiring accurate detection of field input devices such as sensors, switches, push buttons, and proximity devices.
Featuring 16 sinking input channels, the module supports 12–24 VDC digital input signals commonly used in modern industrial automation environments. Its compact structure allows efficient installation in high-density control panels while maintaining dependable signal processing performance for machine control and distributed I/O applications.
The 5069-IB16 integrates seamlessly into Compact 5000 architectures and supports scalable industrial automation systems requiring fast and stable digital input acquisition. Designed for rack mounting, the module is suitable for manufacturing automation, material handling systems, packaging equipment, and OEM machine control applications where compact and reliable digital input functionality is essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 5069-IB16 |
| Series | Compact 5000 |
| Product Type | Digital Sinking Input Module |
| Input Channels | 16 Channel |
| Input Type | Sinking Input |
| Input Voltage Range | 12–24 VDC |
| Signal Type | Digital DC Input |
| Mounting Type | Rack Mount |
| Controller Compatibility | CompactLogix / Compact 5000 |
| Application Type | Industrial Digital Signal Monitoring |
| Wiring Configuration | High-Density Terminal Design |
| Communication Architecture | Compact 5000 I/O |
| Cooling Method | Passive Cooling |
| Industrial Use | Automation and Machine Control |
| Dimensions | 144.6 × 22 × 105.4 mm |
| Weight | 0.175 kg |
Applications
• Industrial Automation Systems: Monitors digital input signals from industrial sensors and control devices.
• Machine Control Applications: Used for signal acquisition from switches, push buttons, and proximity sensors.
• Material Handling Equipment: Supports conveyor monitoring and automated transport systems.
• Packaging Machinery: Provides reliable digital input processing for packaging and production equipment.
• OEM Equipment: Suitable for compact industrial machine control systems requiring high-density I/O.
Advantages
• High-Density Input Design: 16 input channels maximize I/O capacity while minimizing panel space usage.
• Reliable Digital Signal Processing: Ensures stable monitoring of industrial input devices.
• Compact Rack-Mount Structure: Simplifies installation in compact industrial control cabinets.
• Seamless CompactLogix Integration: Designed for efficient operation with Compact 5000 systems.
• Supports Standard Industrial Voltage: Compatible with commonly used 12–24 VDC input signals.
• Efficient Distributed I/O Architecture: Ideal for scalable industrial automation systems.
FAQ
- What is the main function of this module?
It monitors and processes digital input signals from industrial field devices and sensors. - How many input channels are included?
The module provides 16 digital sinking input channels. - What voltage range does the module support?
It supports 12–24 VDC digital input signals. - What type of input configuration does the module use?
It uses a sinking input configuration for industrial DC signal monitoring. - What systems is this module compatible with?
It is compatible with Allen Bradley CompactLogix and Compact 5000 automation systems. - What applications commonly use this module?
It is widely used in machine automation, conveyors, packaging systems, and industrial process monitoring. - How is the module installed?
The module is designed for rack mounting within Compact 5000 I/O assemblies. - Can the module monitor industrial sensors?
Yes, it is commonly used for monitoring proximity sensors, switches, and push buttons. - What is the benefit of the compact design?
The slim structure allows high-density I/O installation while reducing cabinet space requirements. - Is the module suitable for distributed I/O systems?
Yes, it is designed for scalable distributed industrial automation architectures.
Related Models
| Model | Type | Channels | Voltage | Features |
|---|---|---|---|---|
| 5069-IB16 | Digital Input Module | 16 | 12–24 VDC | Sinking Input |
| 5069-OB16 | Digital Output Module | 16 | 24 VDC | DC Output |
| 5069-OW16 | Relay Output Module | 16 | Relay Output | Normally Open |
| 5069-IF8 | Analog Input Module | 8 | Analog | Precision Input |
| 5069-OF8 | Analog Output Module | 8 | Analog | Precision Output |
| 5069-AENTR | EtherNet/IP Adapter | — | Industrial Ethernet | Distributed I/O |
Popular Models
| Model | Type | Channels | Voltage | Features |
|---|---|---|---|---|
| 5069-IB16 | Digital Input Module | 16 | 12–24 VDC | Compact 5000 |
| 5069-OB16 | Digital Output Module | 16 | 24 VDC | High Density |
| 5069-OW16 | Relay Output Module | 16 | Relay | Normally Open |
| 5069-AENTR | EtherNet/IP Adapter | — | Ethernet | Dual Port |
| 5069-AEN2TR | EtherNet/IP Adapter | — | Gigabit Ethernet | Dual 1GB |
| 5069-L306ER | CompactLogix Controller | — | Industrial Control | Motion Ready |
