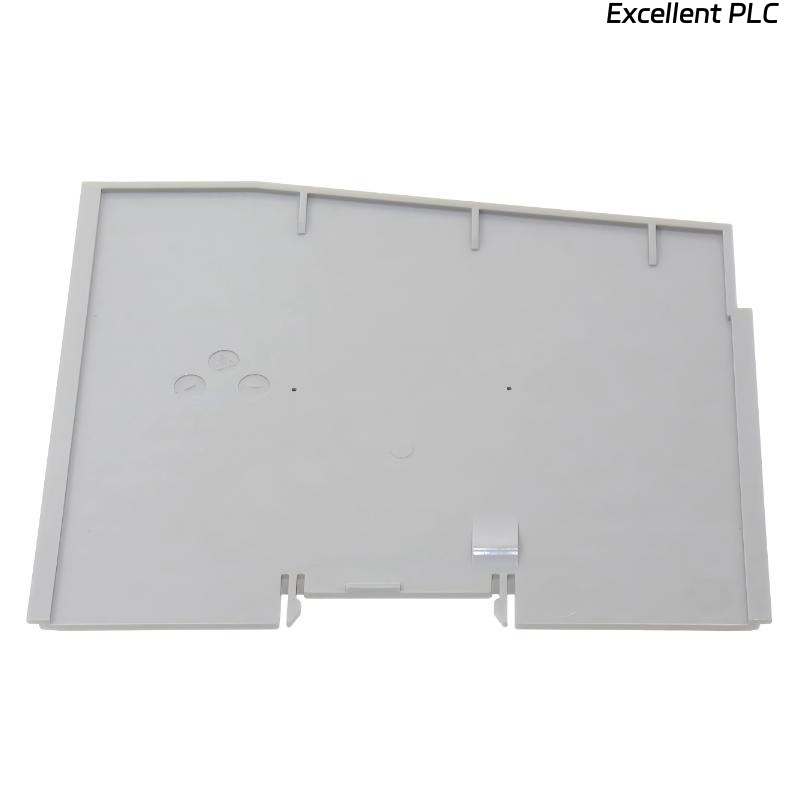

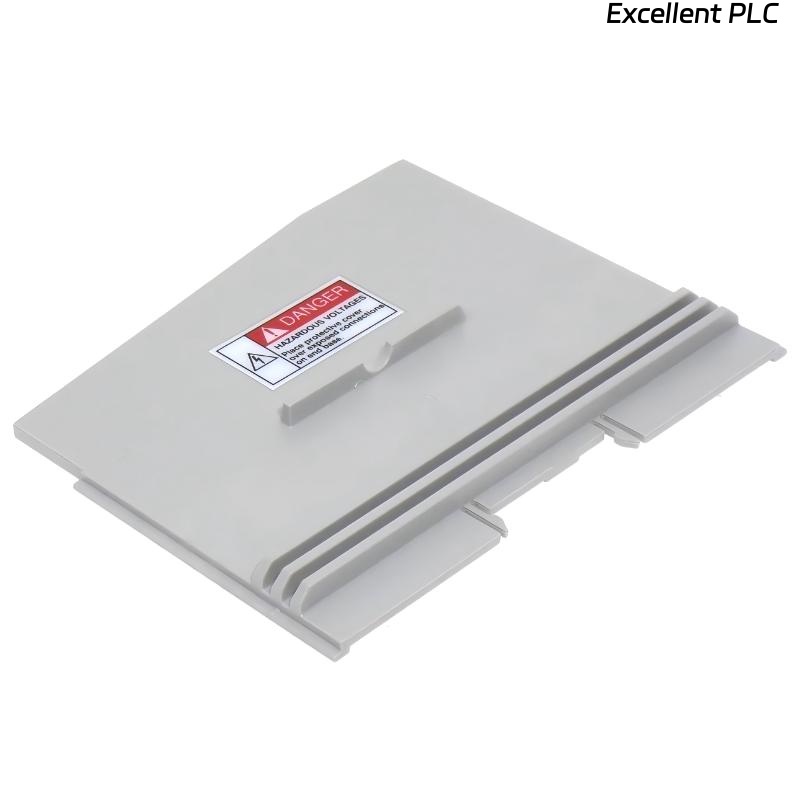

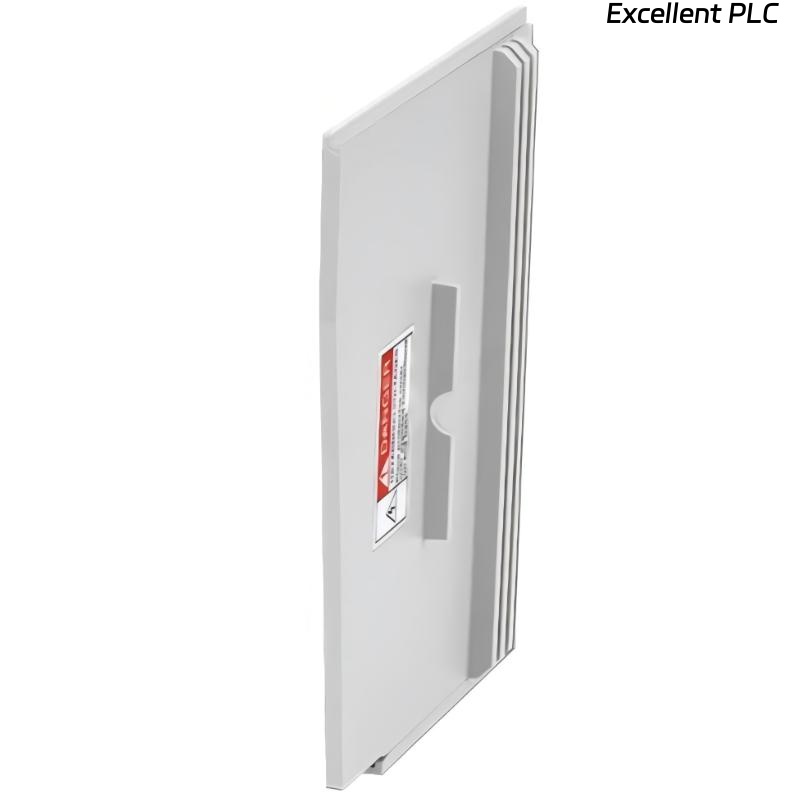

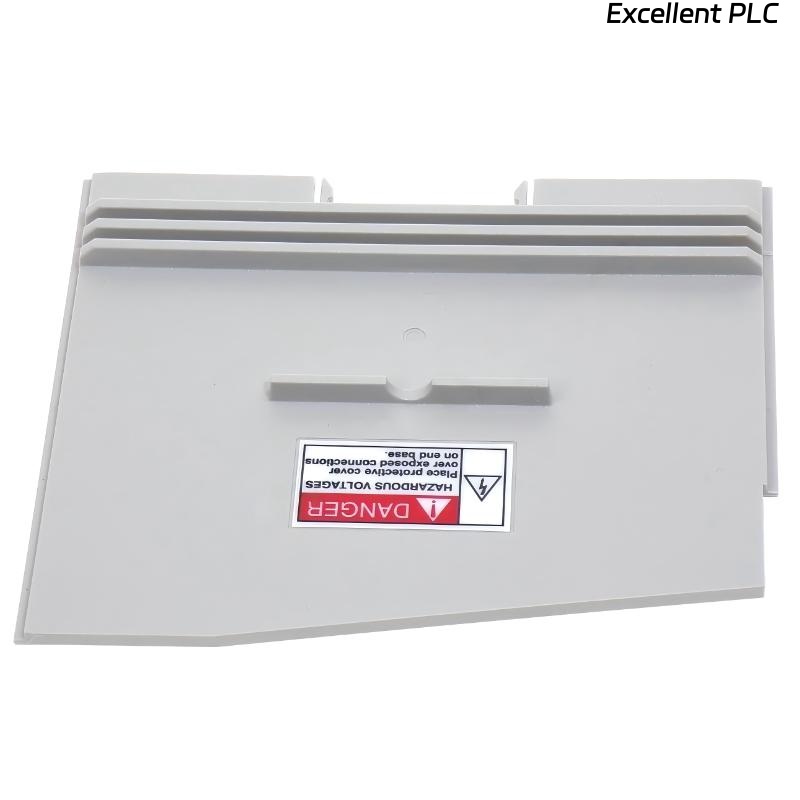

Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap

Product Introduction

The Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap is an essential termination module designed for Compact 5000 I/O systems and CompactLogix 5380 automation platforms. Installed at the right end of a local Compact 5000 I/O assembly, the module completes the backplane connection and ensures stable communication and power distribution across the I/O system.

Designed for modern high-performance industrial automation architectures, the 5069-ECR supports high-speed backplane communication for faster data transfer between controllers and connected I/O modules. It is engineered to support systems with up to 31 local Bulletin 5069 I/O modules, making it suitable for scalable automation environments requiring efficient distributed control.

The module incorporates embedded power distribution functionality, supplying field power to connected I/O modules while simplifying system wiring. Integrated diagnostic capabilities, including a scrolling display for system health monitoring, help improve troubleshooting efficiency and maintenance visibility. The CompactLogix 5380 platform also supports embedded 1 Gigabit switch technology for Device Level Ring (DLR) and linear Ethernet topologies, enabling reliable industrial network communication and flexible system configuration.

Product Specifications

Applications

• CompactLogix Automation Systems: Completes local Compact 5000 I/O assemblies in industrial control systems.

• Distributed I/O Architectures: Supports scalable distributed automation networks with multiple I/O modules.

• Manufacturing Automation: Used in high-speed industrial production and process control applications.

• Packaging and Material Handling: Suitable for automated conveyors, packaging lines, and machine control systems.

• OEM Equipment Integration: Ideal for machine builders using CompactLogix 5380 control architectures.

Advantages

• High-Speed Backplane Communication: Enables fast data transfer between controllers and I/O modules.

• Supports Large I/O Configurations: Handles up to 31 local Bulletin 5069 I/O modules.

• Integrated Power Distribution: Provides field power to connected I/O modules, reducing wiring complexity.

• Enhanced Diagnostics: Scrolling display improves visibility of system health and troubleshooting information.

• Advanced Ethernet Support: Embedded 1Gb switch technology supports DLR and linear network topologies.

• Compact DIN Rail Design: Saves cabinet space and simplifies installation.
