Allen Bradley 5094-MB Flex 5000 Mounting Base

Product Introduction

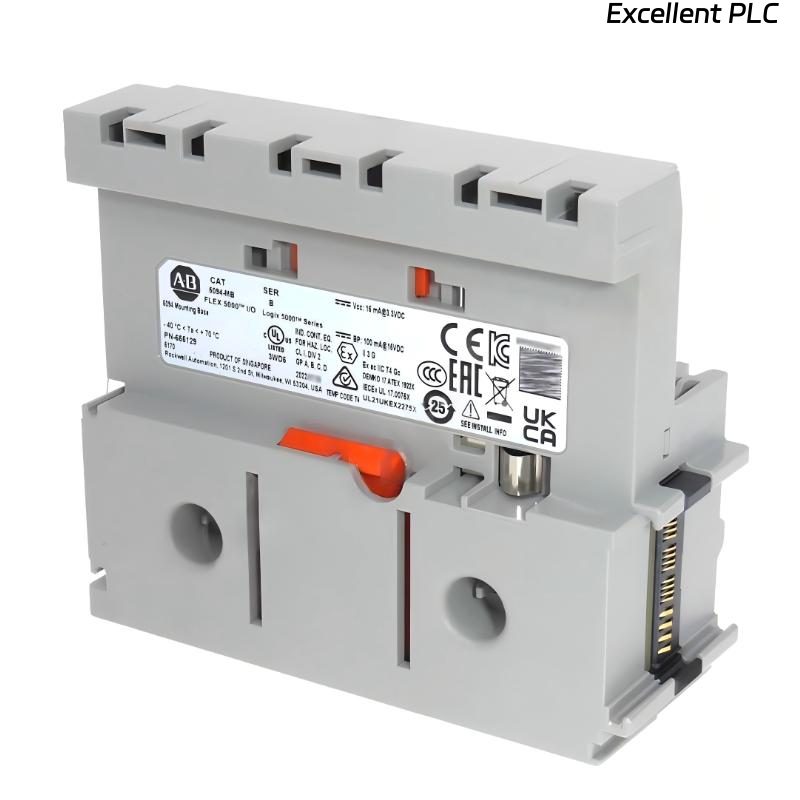

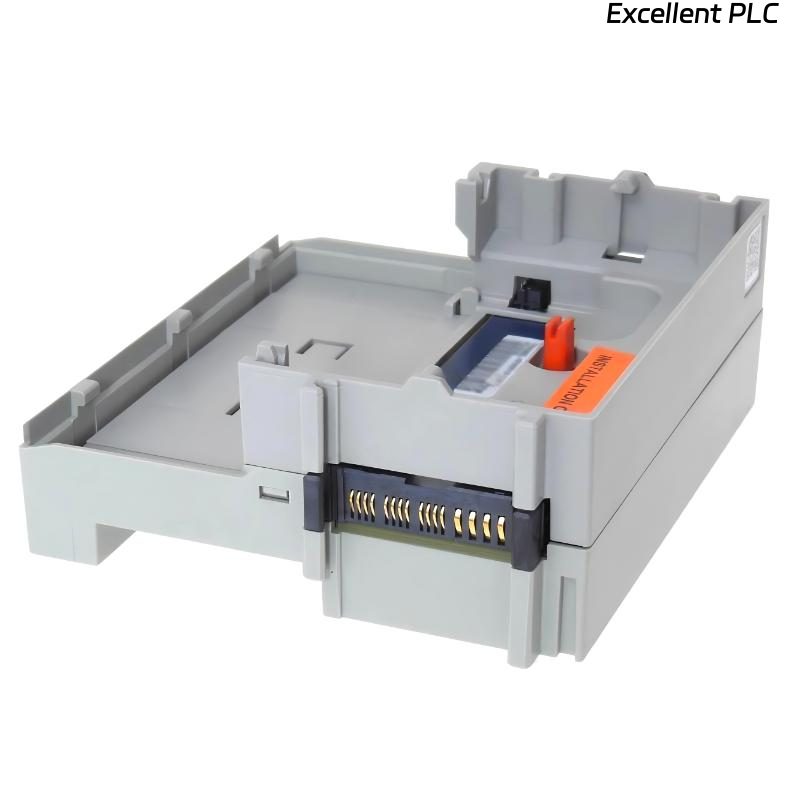

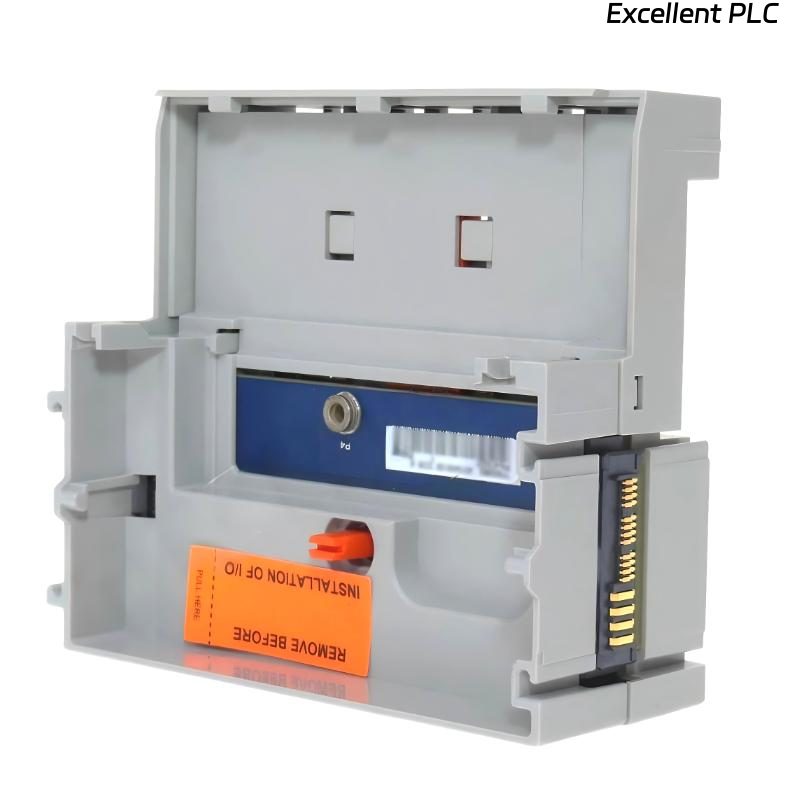

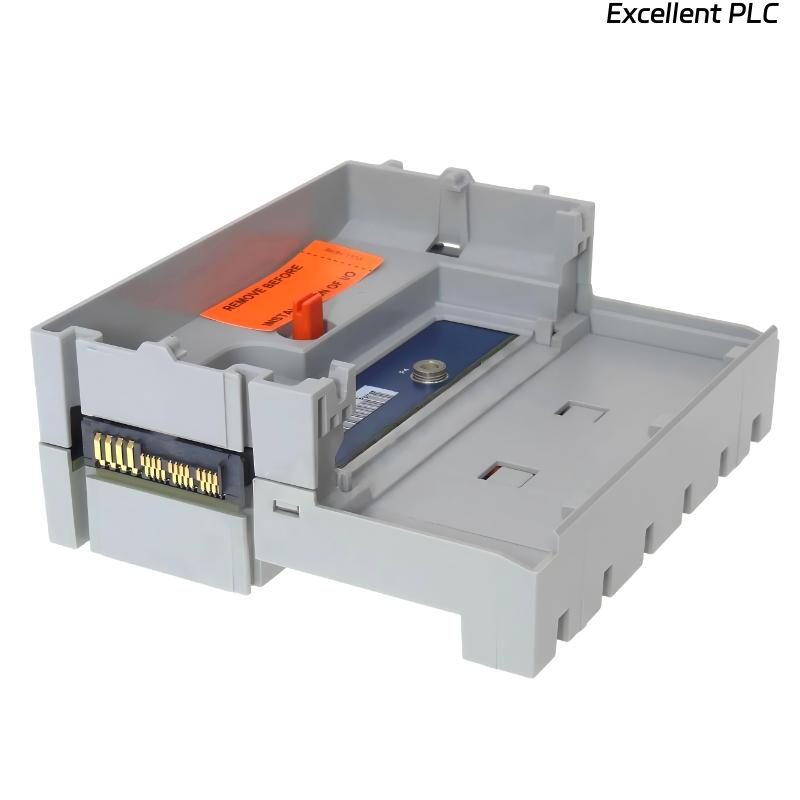

The Allen Bradley 5094-MB Flex 5000 Mounting Base is a fundamental hardware component used within the FLEX 5000 I/O platform, providing both mechanical support and electrical interconnection for system modules. It serves as the base onto which FLEX 5000 I/O modules are installed, forming the backbone for backplane communication and field power distribution.

Designed to mount directly onto a standard DIN rail, the 5094-MB simplifies system assembly while ensuring secure installation in industrial control panels. It distributes 15 VDC backplane power across connected modules and enables seamless communication between I/O modules and the EtherNet/IP adapter. Its compact and lightweight design makes it ideal for scalable distributed I/O systems where flexibility and space efficiency are important.

This mounting base plays a critical role in building modular automation systems, allowing easy expansion, maintenance, and replacement of I/O modules without complex rewiring.

---

Product Specifications

---

Applications

• Distributed I/O systems, providing the physical and electrical foundation for FLEX 5000 modules.

• Industrial automation panels, enabling organized and modular installation of I/O components.

• Manufacturing systems, supporting scalable expansion of input and output modules.

• Process control applications, ensuring reliable backplane communication between modules.

• Machine building projects, simplifying system assembly and maintenance.

---

Advantages

• DIN rail mounting design enables quick and secure installation in control panels.

• Integrated backplane communication ensures reliable data exchange between modules.

• 15 VDC power distribution simplifies wiring and reduces system complexity.

• Compact and lightweight construction supports high-density panel layouts.

• Modular system architecture allows easy expansion and maintenance.

• Seamless compatibility with FLEX 5000 modules ensures efficient system integration.

FAQ

1. What is the purpose of the 5094-MB mounting base?
   It provides mechanical mounting and electrical interconnection for FLEX 5000 I/O modules.
2. How is the mounting base installed?
   It mounts directly onto a standard DIN rail using a snap-on design.
3. Does the mounting base supply power to modules?
   Yes, it distributes 15 VDC backplane power to connected modules.
4. Does it support communication between modules?
   Yes, it enables backplane communication across the FLEX 5000 system.
5. Is this base required for every FLEX 5000 module?
   Yes, each module is installed onto a mounting base for proper operation.
6. Can the system be expanded easily?
   Yes, additional bases and modules can be added to expand the system.
7. Is it suitable for industrial environments?
   Yes, it is designed for reliable operation in industrial control systems.
8. What types of modules can be installed on this base?
   All FLEX 5000 I/O modules are compatible with this mounting base.
9. Does it reduce wiring complexity?
   Yes, it simplifies both power distribution and communication connections.
10. What role does it play in system reliability?
    It ensures stable mechanical support and consistent electrical connectivity between modules.
