Product Introduction

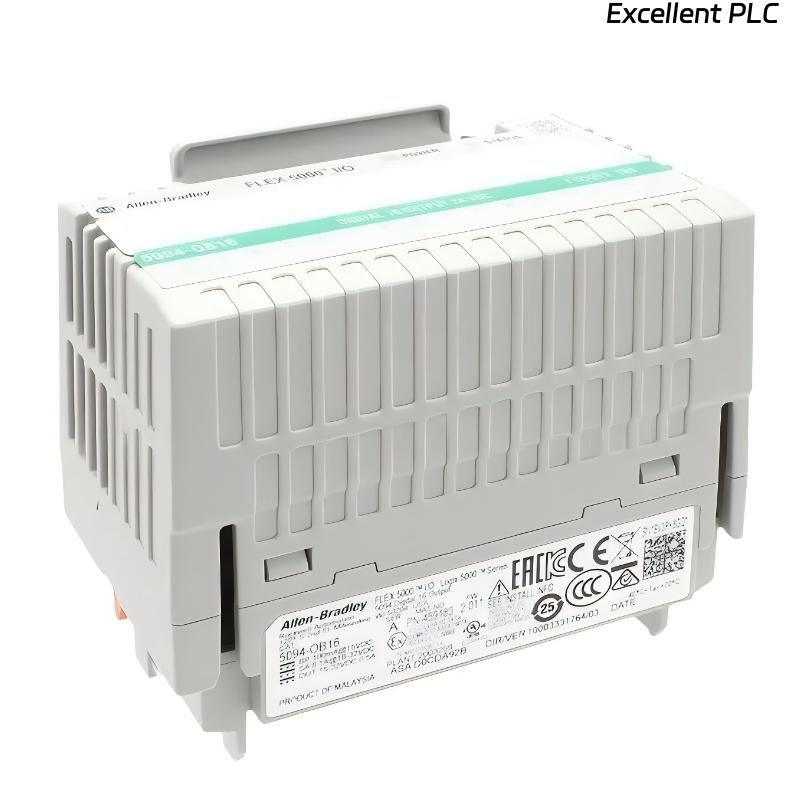

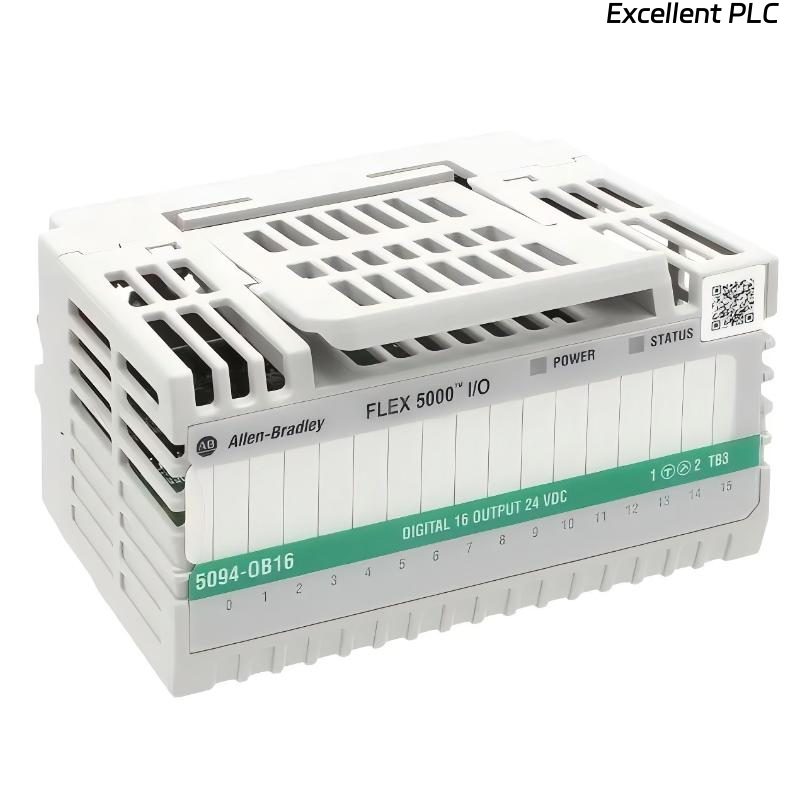

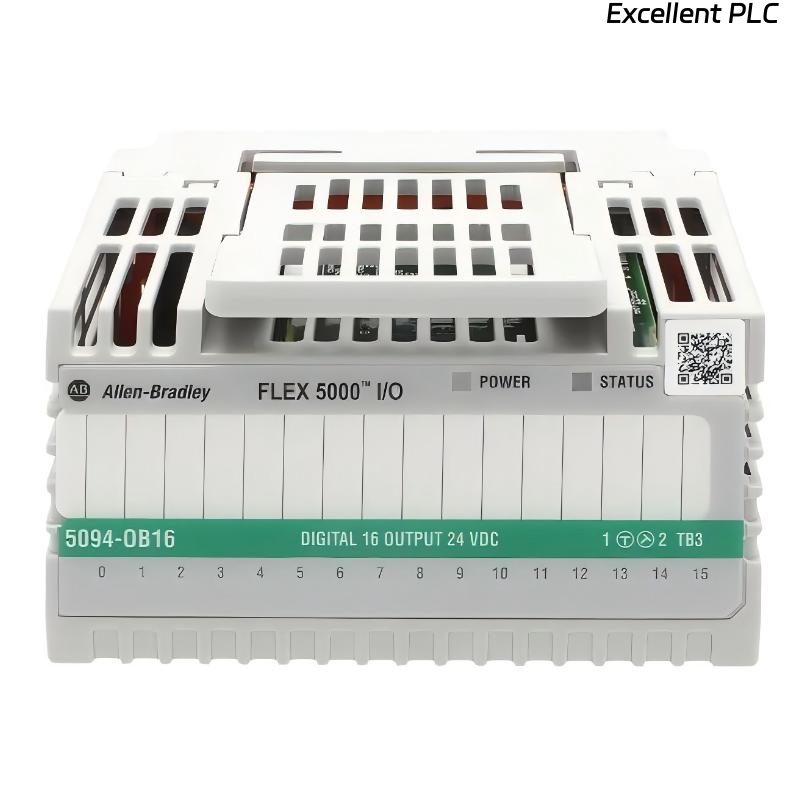

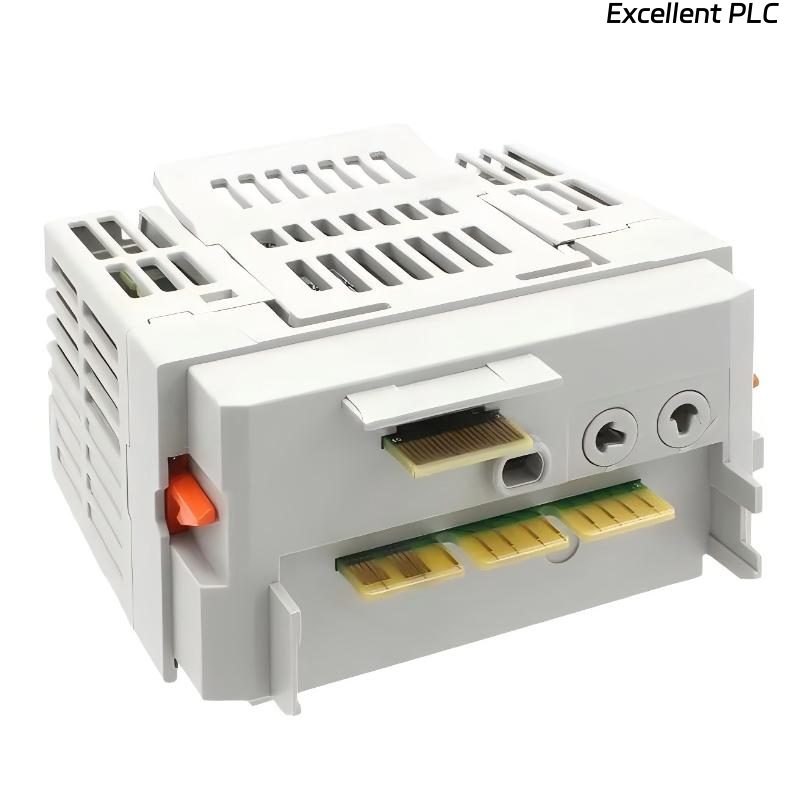

The Allen Bradley 5094-OB16 Flex 5000 Digital Output Module is a high-density output module designed for reliable control of field devices in modern distributed I/O systems. As part of the FLEX 5000 platform, this module converts digital control signals from a Logix controller into physical outputs used to drive actuators such as relays, solenoids, contactors, and indicator devices.
Featuring 16 digital output points, the 5094-OB16 provides efficient control in compact installations while maintaining high performance and reliability. It operates on a 24 VDC output voltage with a 100 mA per point rating, making it suitable for a wide range of industrial control applications. Designed for harsh environments, the module supports an extended temperature range from -40°C to +70°C, ensuring stable operation under extreme conditions.
With seamless integration into FLEX 5000 systems and EtherNet/IP architectures, the module supports advanced diagnostics and flexible configuration, simplifying system design and maintenance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 5094-OB16 |
| Series | FLEX 5000 |
| Type | Digital Output Module |
| Output Points | 16 Points |
| Output Voltage | 24 VDC |
| Output Current | 100 mA per channel |
| Signal Type | Digital |
| Configuration | Software Configurable |
| Communication | EtherNet/IP (via adapter) |
| Operating Temperature | -40°C to +70°C |
| Diagnostics | Output Status Monitoring, Fault Detection |
| Mounting Type | FLEX 5000 Base Assembly |
| Environmental Rating | Industrial Grade |
| Dimensions | 94 × 54 × 87 mm |
| Weight | 0.105 kg |
Applications
• Industrial automation systems, controlling actuators such as relays, solenoids, and contactors.
• Manufacturing lines, enabling precise control of machines and automated processes.
• Material handling systems, managing conveyor operations and sorting equipment.
• Process control applications, supporting reliable switching of field devices.
• Machine building projects, providing flexible and scalable digital output control.
Advantages
• 16-point high-density output design reduces panel space and improves system efficiency.
• 24 VDC output with 100 mA per channel supports a wide range of industrial devices.
• Wide temperature range (-40°C to +70°C) ensures reliable operation in harsh environments.
• Integrated diagnostics improve troubleshooting and reduce downtime.
• Flexible system integration within FLEX 5000 architecture simplifies configuration.
• Compact and lightweight design supports high-density installations.
