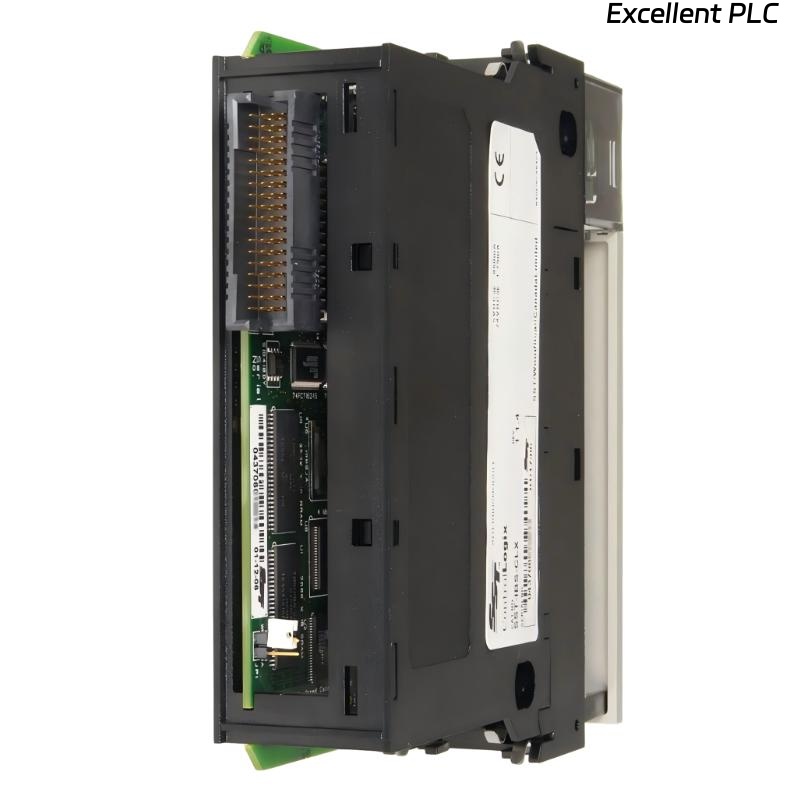

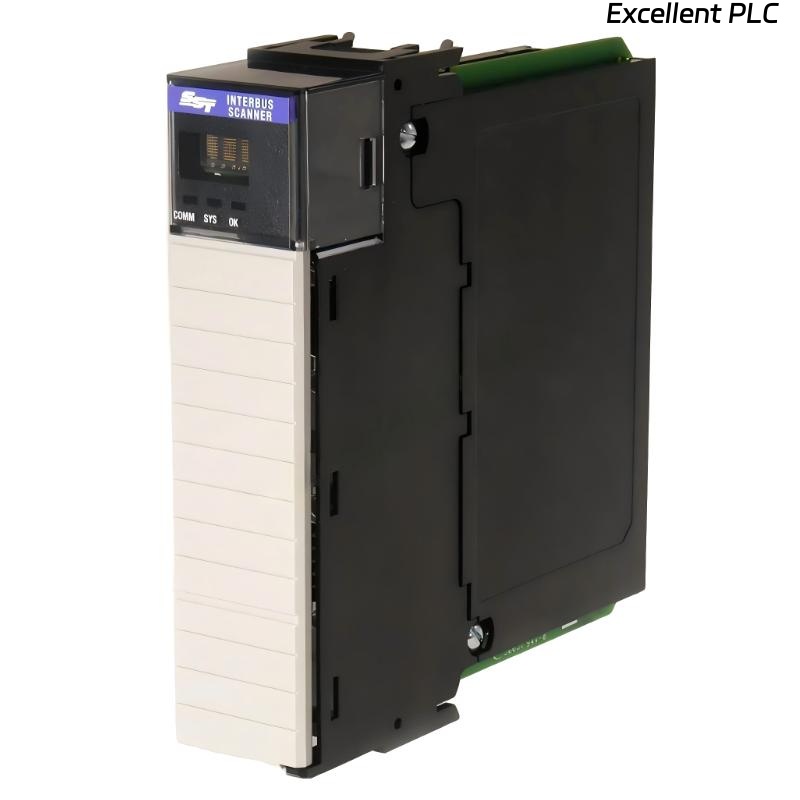

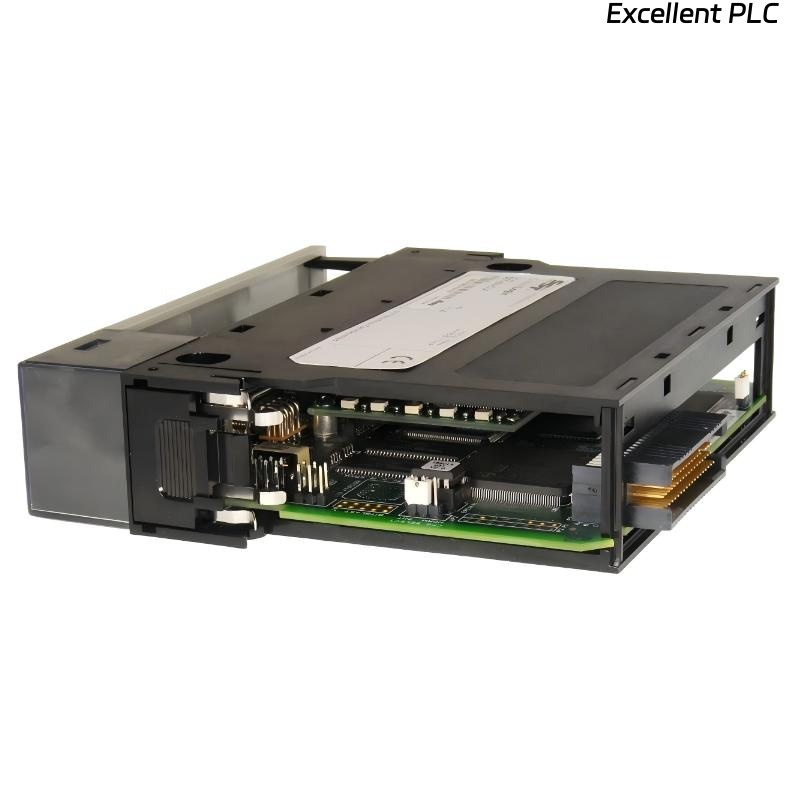

Allen Bradley SST-IBS-CLX ControlLogix Scanner Interbus Module

Product Introduction

The Allen Bradley SST-IBS-CLX is a ControlLogix Scanner Interbus Module designed to integrate INTERBUS networks with ControlLogix systems. It enables reliable communication between INTERBUS modules on an INTERBUS network and the ControlLogix backplane, providing seamless connectivity for industrial automation and process control applications.

This module supports both 5 VDC and 24 VDC power inputs and features serial configuration via RS-232, ensuring flexible and efficient setup and communication within your industrial network.

---

Product Specifications

---

Applications

• INTERBUS Network Integration – Connects INTERBUS modules to ControlLogix backplane for efficient industrial communication.

• Industrial Automation – Ideal for factory automation and process control applications requiring seamless network interoperability.

• System Monitoring and Control – Provides reliable real-time data exchange between INTERBUS modules and ControlLogix processors.

• Legacy System Connectivity – Supports integration of older INTERBUS devices into modern ControlLogix systems.

• Flexible Installation – Compact size allows installation in tight control cabinet spaces.

---

Advantages

• Seamless INTERBUS Integration – Ensures reliable communication between INTERBUS modules and ControlLogix processors.

• Dual Voltage Support – Operates on both 5 VDC and 24 VDC for flexible power configuration.

• RS-232 Configuration – Simplifies setup and diagnostics of the module.

• Compact and Robust – Lightweight and DIN-rail/backplane mountable for easy industrial panel integration.

• Enhanced Industrial Networking – Improves system efficiency and data exchange reliability in multi-device networks.

FAQ

1. Which networks does the SST-IBS-CLX module support?
   It supports INTERBUS networks for communication with ControlLogix systems.
2. How is the module configured?

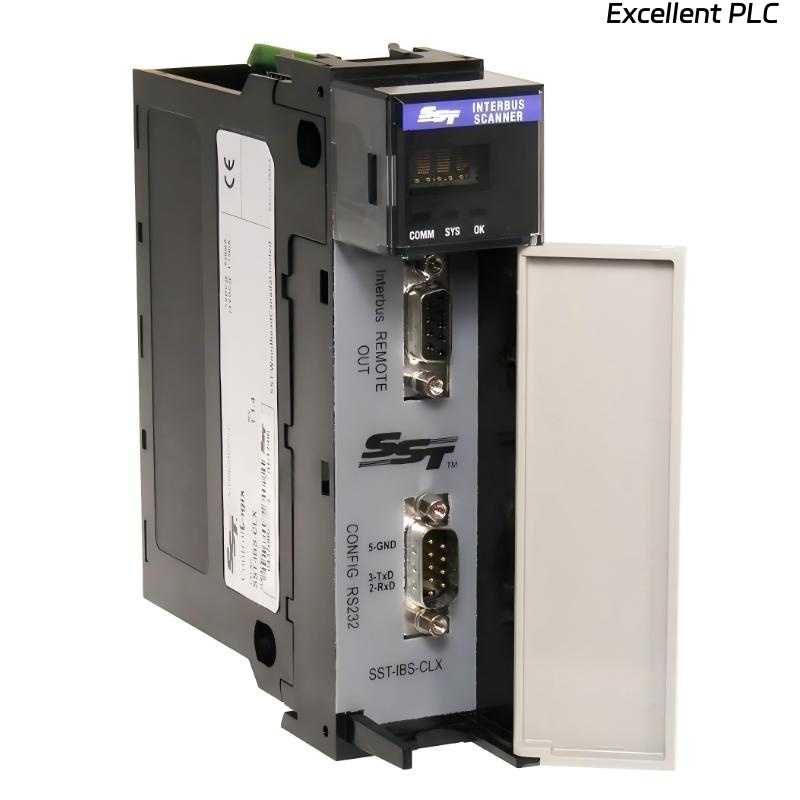

   Via 1 x RS-232 Serial Configuration Port (CONFIG).
3. Can it communicate with multiple INTERBUS devices?
   Yes, it enables communication between the ControlLogix backplane and multiple INTERBUS modules.
4. What voltage inputs does the module support?
   It operates on 5 VDC @ 850 mA and 24 VDC @ 1.75 mA.
5. How is the module mounted?
   It can be DIN-rail mounted or installed directly on the ControlLogix backplane.
6. Is the module certified for industrial use?
   Yes, it is CE certified.
7. What is the operating temperature range?
   The module operates safely from 0°C to 60°C.
8. Can it integrate legacy INTERBUS devices?
   Yes, it allows older INTERBUS devices to communicate with modern ControlLogix systems.
9. Does it improve system communication reliability?
   Yes, it ensures stable and reliable data exchange between INTERBUS modules and the ControlLogix backplane.
10. Is setup and troubleshooting simplified?
    Yes, RS-232 configuration makes setup and diagnostics straightforward.
