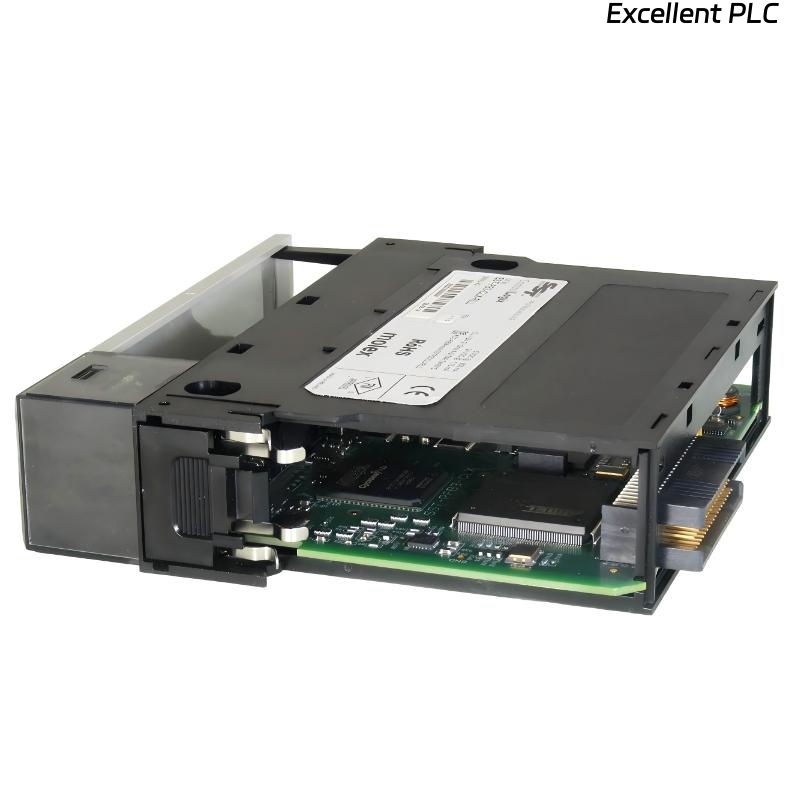

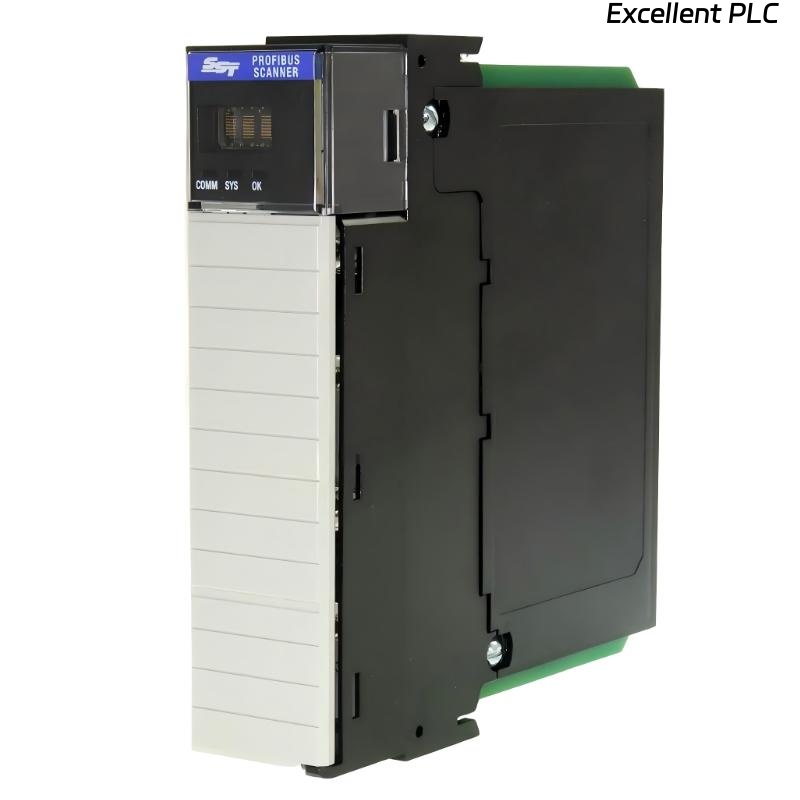

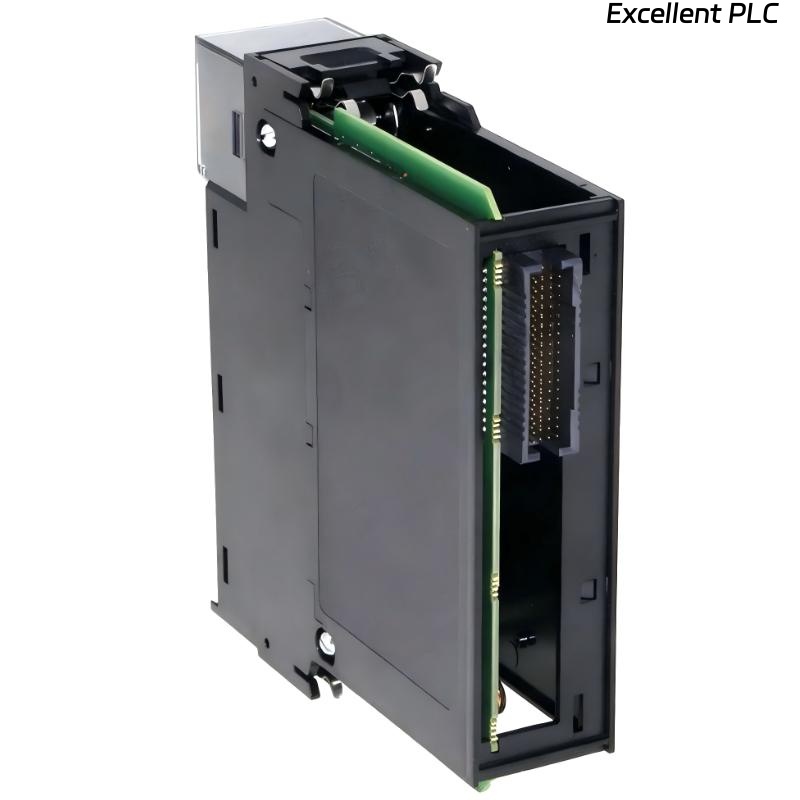

Allen Bradley SST-PB3-CLX-RLL Profibus DP Remote I/O Scanner Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley SST-PB3-CLX-RLL is a Profibus DP Remote I/O Scanner Module designed to integrate PROFIBUS DP networks with ControlLogix systems. It allows a ControlLogix processor to communicate efficiently with DP remote I/O devices, providing reliable data transfer for industrial automation and process control applications.

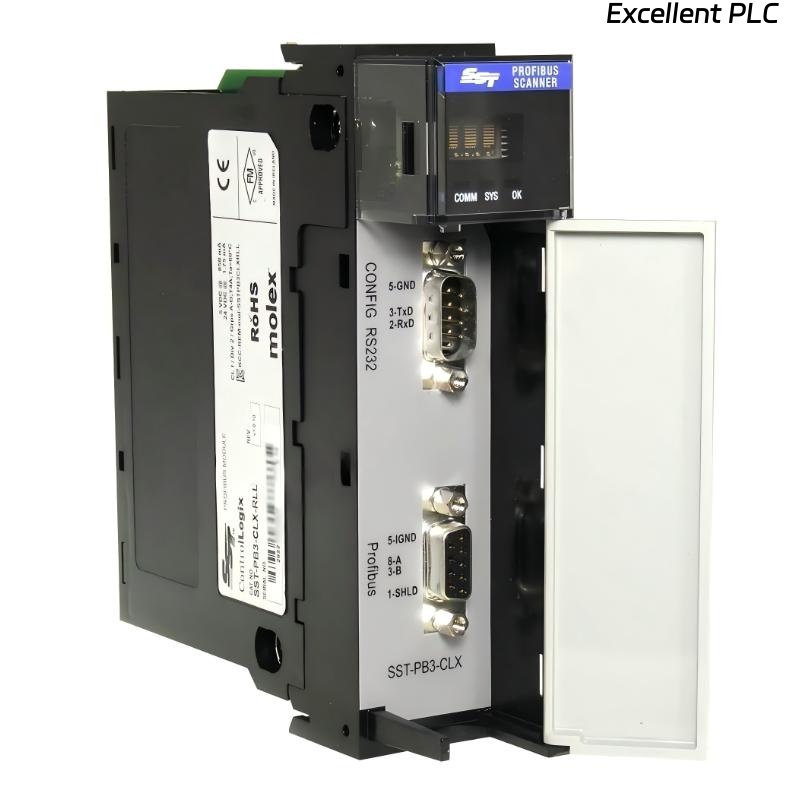

The module features RS-232 configuration and an RS-485 PROFIBUS interface, ensuring flexible setup and seamless communication within industrial networks.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Profibus DP Remote I/O Scanner Module |
| Configuration Port | 1 x RS-232 Serial Configuration Port (CONFIG) |
| PROFIBUS Interface | 1 x RS-485 Interface Port (PROFIBUS DP) |
| Function | Enables communication between ControlLogix processor and PROFIBUS DP remote I/O devices |
| Compliance | CE certified |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | DIN-rail / backplane mountable |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.2 kg |
Applications
• PROFIBUS DP Network Integration – Connects ControlLogix processors with DP remote I/O devices for efficient and reliable industrial communication.
• Industrial Automation – Suitable for factory automation, process control, and distributed I/O systems.
• System Monitoring and Control – Enables real-time data exchange between the ControlLogix backplane and remote I/O devices.
• Legacy Device Integration – Supports older PROFIBUS DP devices, allowing them to interface with modern ControlLogix systems.
• Flexible Installation – Compact and DIN-rail/backplane mountable for tight panel space environments.
Advantages
• Seamless PROFIBUS Integration – Ensures reliable communication between ControlLogix processors and DP remote I/O devices.
• RS-232 Configuration – Simplifies setup, commissioning, and troubleshooting of the module.
• Compact and Robust Design – DIN-rail/backplane mountable, suitable for industrial panel integration.
• Enhanced Industrial Networking – Improves system efficiency and reliability in multi-device networks.
• Flexible Deployment – Compatible with distributed I/O architectures and legacy PROFIBUS DP devices.
FAQ
- Which networks does the SST-PB3-CLX-RLL module support?
It supports PROFIBUS DP networks for communication with ControlLogix systems. - How is the module configured?
Via 1 x RS-232 Serial Configuration Port (CONFIG). - Can it communicate with multiple DP remote I/O devices?
Yes, it enables communication between ControlLogix processors and multiple DP remote I/O devices. - What type of PROFIBUS interface does it use?
It uses an RS-485 interface for PROFIBUS DP communication. - How is the module mounted?
It is DIN-rail or ControlLogix backplane mountable. - Is the module certified for industrial use?
Yes, it is CE certified. - What is the operating temperature range?
The module operates from 0°C to 60°C. - Can it integrate legacy PROFIBUS DP devices?
Yes, it allows older DP remote I/O devices to communicate with modern ControlLogix systems. - Does it improve system reliability?
Yes, it ensures stable and consistent data exchange between DP devices and the ControlLogix processor. - Is setup and troubleshooting simplified?
Yes, RS-232 configuration allows for easy setup and diagnostics.
Related Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| SST-PB3-CLX-RLL | Profibus DP Remote I/O Scanner Module | 1 x RS-232, 1 x RS-485 | 5/24 VDC |
| SST-IBS-CLX | ControlLogix Scanner Interbus Module | 1 x RS-232, 1 x INTERBUS | 5/24 VDC |
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x Ethernet + 1 CFG | 5–24 VDC |
| PLX31-MBTCP-MBS4 | Modbus TCP/IP to Modbus Serial Gateway | 4 x Serial | 10–36 VDC |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP/IP Gateway | 1 x Ethernet | 10–36 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
Popular Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| SST-PB3-CLX-RLL | Profibus DP Remote I/O Scanner Module | 1 x RS-232, 1 x RS-485 | 5/24 VDC |
| SST-IBS-CLX | ControlLogix Scanner Interbus Module | 1 x RS-232, 1 x INTERBUS | 5/24 VDC |
| PLX31-MBTCP-MBS4 | Modbus TCP/IP to Modbus Serial Gateway | 4 x Serial | 10–36 VDC |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP/IP Gateway | 1 x Ethernet | 10–36 VDC |
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x Ethernet + 1 CFG | 5–24 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
