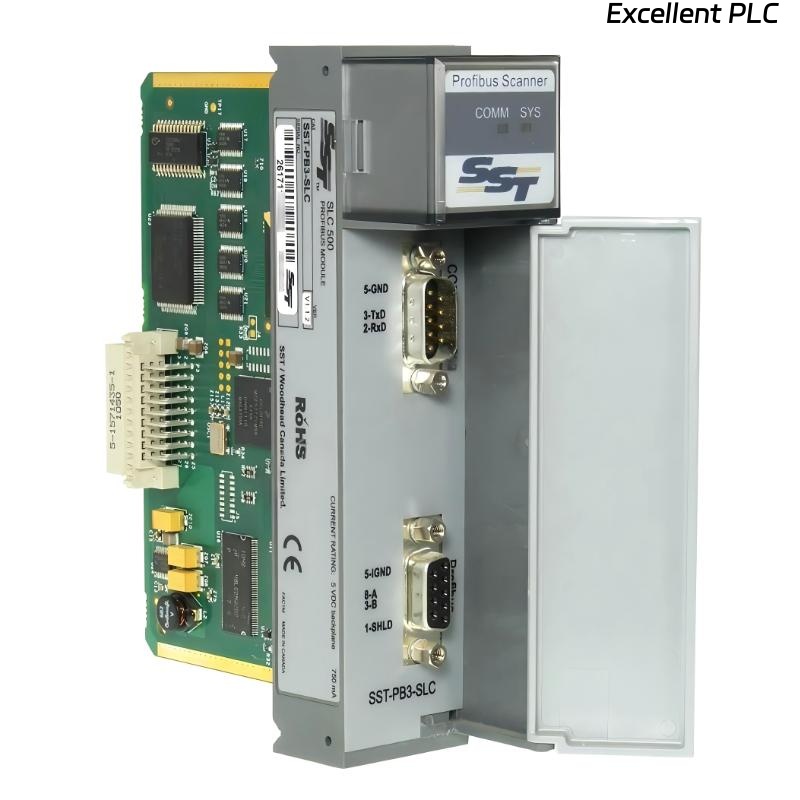

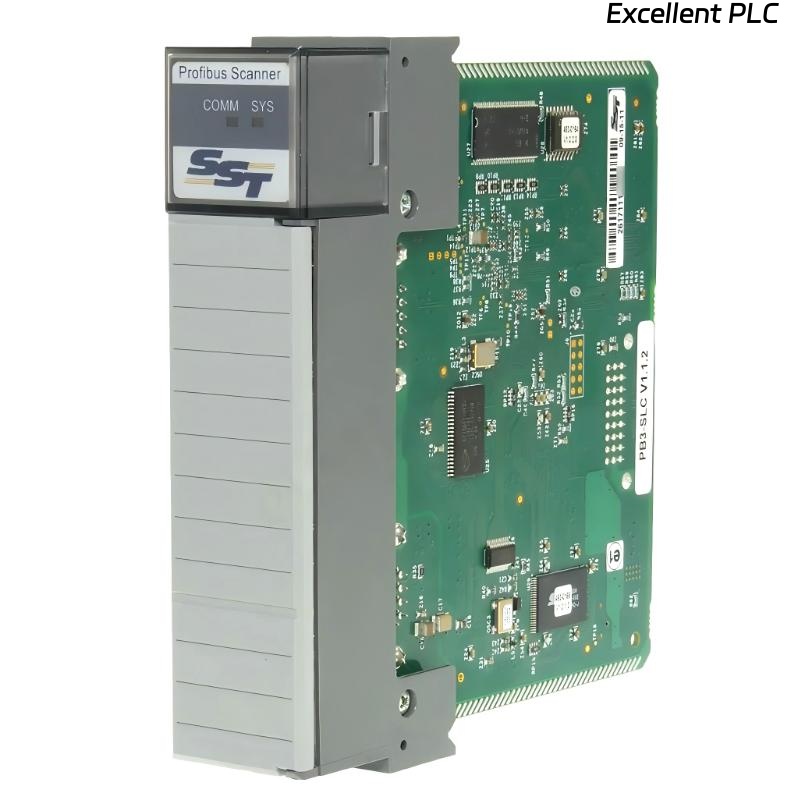

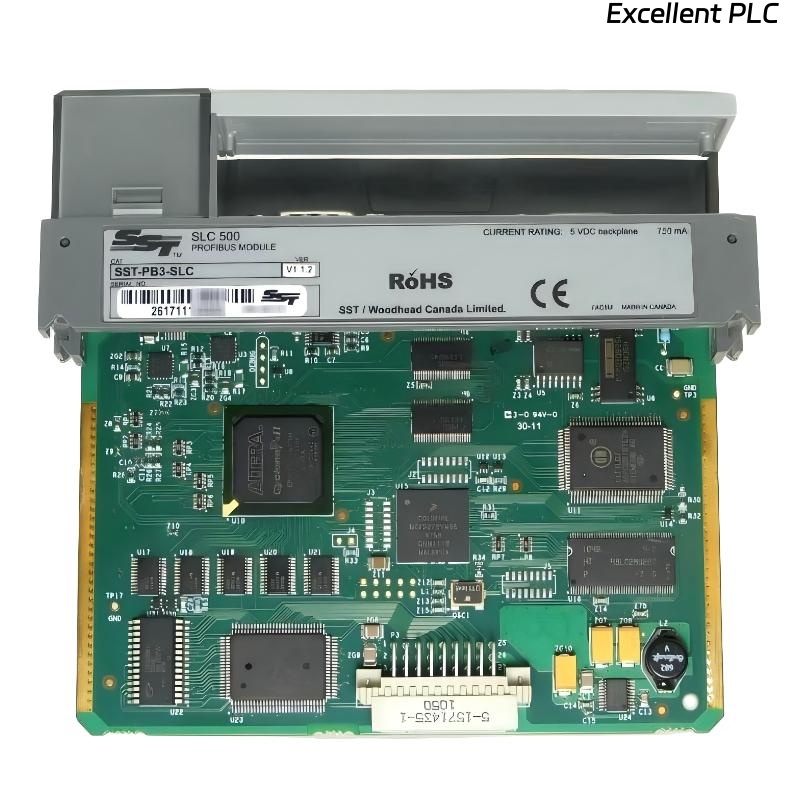

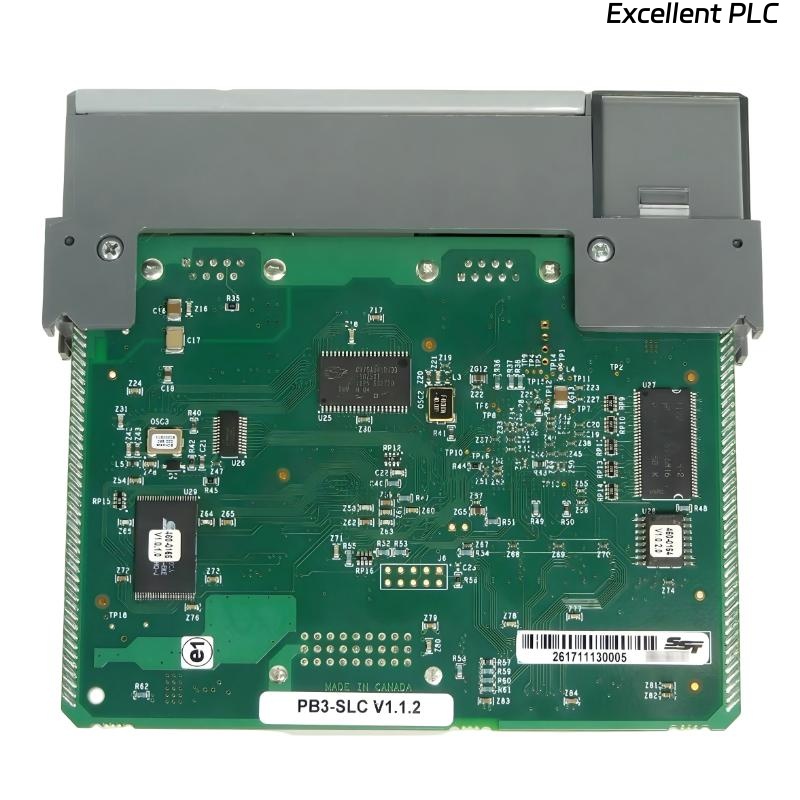

Allen Bradley SST-PB3-SLC Profibus DP Remote I/O Scanner Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley SST-PB3-SLC is a Profibus DP Remote I/O Scanner Module designed for SLC500 controllers. It enables communication between an SLC processor (SLC 5/03 or later) and DP remote I/O devices on a PROFIBUS network.
This module acts as a PROFIBUS DP Remote I/O Scanner, capable of scanning up to 125 slaves, with each slave supporting 244 bytes of input data and 244 bytes of output data. Its RS-232 configuration port and RS-485 PROFIBUS interface allow for efficient setup and reliable communication.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Profibus DP Remote I/O Scanner Module |
| Controller Compatibility | SLC500 (SLC 5/03 or later) |
| Configuration Port | 1 x RS-232 Serial Configuration Port (CONFIG) |
| PROFIBUS Interface | 1 x RS-485 Interface Port (PROFIBUS DP V0/V1 Master/Slave) |
| Function | Enables communication between SLC processor and DP remote I/O devices |
| Scan Capacity | Up to 125 DP slaves, 244 bytes input/output per slave |
| Power Supply | 5 VDC @ 750 mA |
| Operating Temperature | 0°C to 50°C |
| Compliance | CE certified |
| Mounting Type | DIN-rail / backplane mountable |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.48 kg |
Applications
• PROFIBUS DP Integration for SLC500 – Connects SLC500 controllers with DP remote I/O devices for reliable industrial communication.
• Distributed I/O Scanning – Scans up to 125 slaves, allowing large-scale distributed automation systems.
• Industrial Automation – Ideal for factory automation and process control applications.
• Legacy Device Connectivity – Enables older PROFIBUS DP devices to communicate with SLC500 systems.
• Flexible Configuration – RS-232 setup simplifies commissioning and network management.
Advantages
• High Scan Capacity – Can scan up to 125 slaves with 244 bytes input/output per slave for efficient distributed I/O control.
• PROFIBUS DP Master/Slave Support – Provides flexible network topology options.
• RS-232 Configuration – Simplifies setup, diagnostics, and maintenance.
• Compact and Robust – DIN-rail/backplane mountable for easy industrial panel integration.
• Reliable Communication – Ensures stable and predictable data exchange between SLC500 processors and PROFIBUS DP devices.
FAQ
- Which controllers are compatible with the SST-PB3-SLC module?
It is compatible with SLC500 controllers, SLC 5/03 or later. - How many PROFIBUS DP devices can it scan?
It can scan up to 125 DP slaves. - What type of PROFIBUS interface does it use?
It uses an RS-485 interface supporting PROFIBUS DP V0/V1 Master/Slave. - How is the module configured?
Via 1 x RS-232 Serial Configuration Port (CONFIG). - What is the module’s power requirement?
It operates on 5 VDC @ 750 mA. - Is the module certified for industrial use?
Yes, it is CE certified. - What is the operating temperature range?
The module operates safely from 0°C to 50°C. - Can it connect to legacy PROFIBUS DP devices?
Yes, it allows older DP remote I/O devices to communicate with SLC500 processors. - Does it improve system reliability?
Yes, it ensures stable and predictable data exchange between SLC500 controllers and DP remote I/O devices. - Is setup and troubleshooting simplified?
Yes, RS-232 configuration allows for easy setup and diagnostics.
Related Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| SST-PB3-SLC | Profibus DP Remote I/O Scanner Module for SLC500 | 1 x RS-232, 1 x RS-485 | 5 VDC |
| SST-PB3-CLX-RLL | Profibus DP Remote I/O Scanner Module for ControlLogix | 1 x RS-232, 1 x RS-485 | 5/24 VDC |
| SST-IBS-CLX | ControlLogix Scanner Interbus Module | 1 x RS-232, 1 x INTERBUS | 5/24 VDC |
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x Ethernet + 1 CFG | 5–24 VDC |
| PLX31-MBTCP-MBS4 | Modbus TCP/IP to Modbus Serial Gateway | 4 x Serial | 10–36 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
Popular Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| SST-PB3-SLC | Profibus DP Remote I/O Scanner Module for SLC500 | 1 x RS-232, 1 x RS-485 | 5 VDC |
| SST-PB3-CLX-RLL | Profibus DP Remote I/O Scanner Module for ControlLogix | 1 x RS-232, 1 x RS-485 | 5/24 VDC |
| SST-IBS-CLX | ControlLogix Scanner Interbus Module | 1 x RS-232, 1 x INTERBUS | 5/24 VDC |
| PLX31-MBTCP-MBS4 | Modbus TCP/IP to Modbus Serial Gateway | 4 x Serial | 10–36 VDC |
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x Ethernet + 1 CFG | 5–24 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
