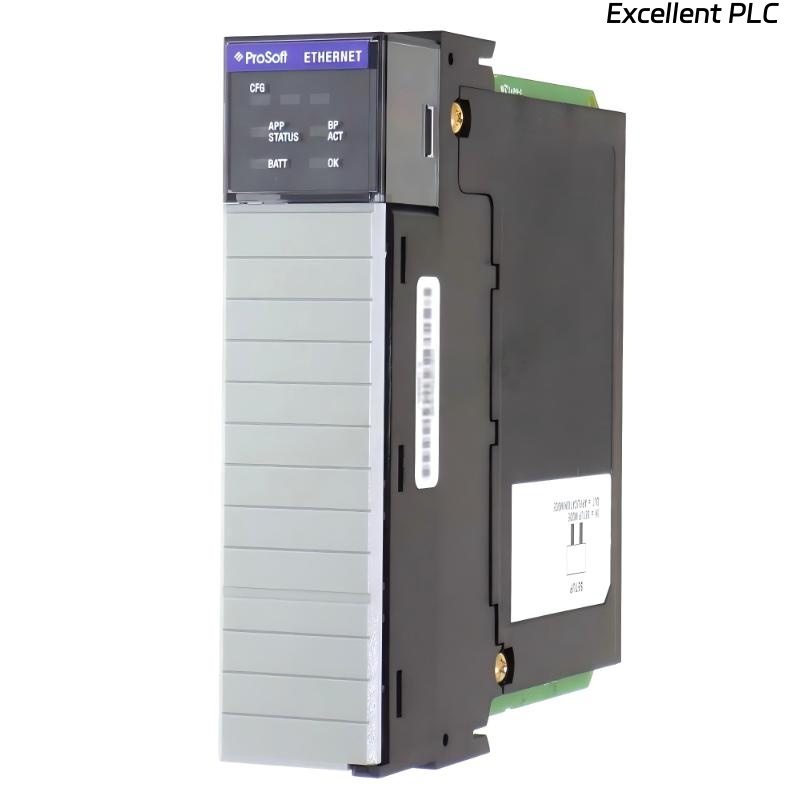

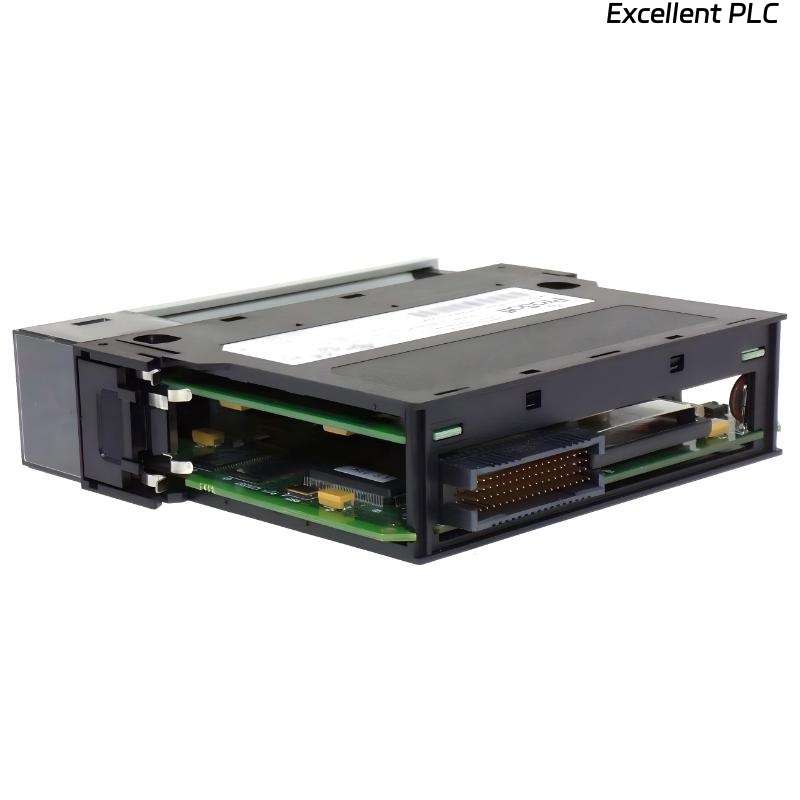

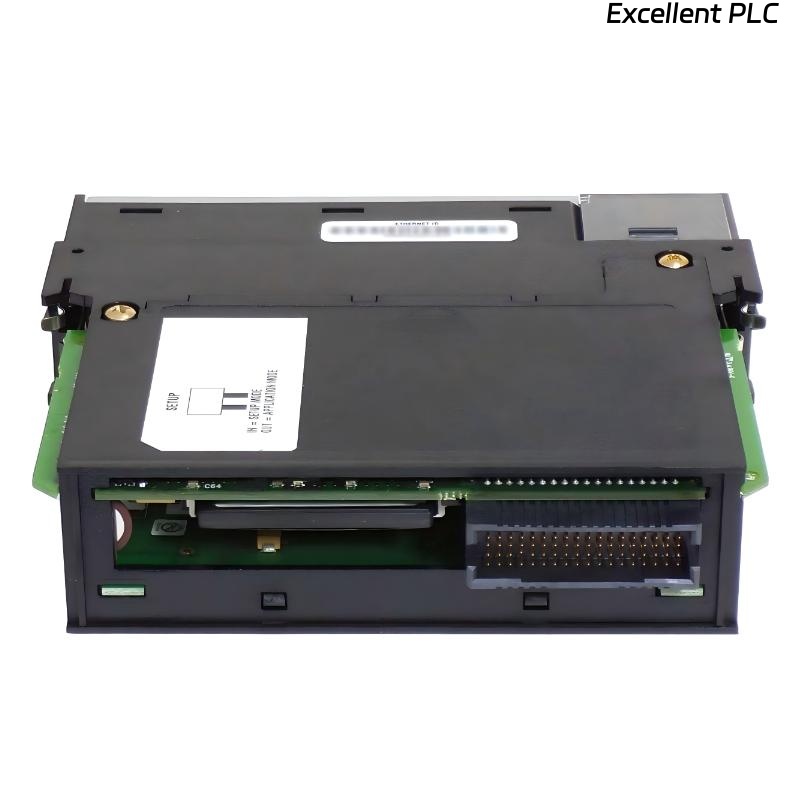

ProSoft MVI56-MNET Modbus TCP/IP Client/Server Network Interface Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft MVI56-MNET is a Modbus TCP/IP Client/Server Network Interface Module designed for Allen-Bradley ControlLogix processors. It allows these processors to communicate seamlessly with Modbus-compatible devices over Ethernet, supporting both client and server operations for flexible network integration.

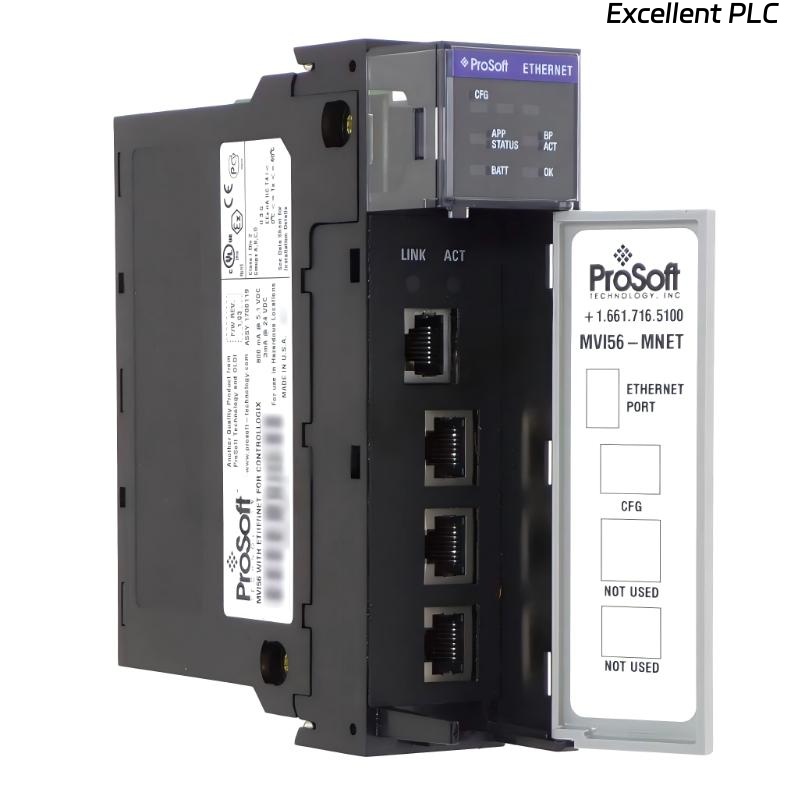

Equipped with 1 RJ45 Serial Configuration Port (CFG) and 1 RJ45 Ethernet Port, the module enables reliable and efficient data exchange for industrial automation, process monitoring, and control applications. It is ideal for integrating ControlLogix processors into existing Modbus networks, bridging legacy and modern devices.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Modbus TCP/IP Client/Server Network Interface Module |
| Compatibility | Allen-Bradley ControlLogix Processors |
| Configuration Port | 1 x RJ45 Serial (CFG) |
| Ethernet Port | 1 x RJ45 Ethernet (Modbus) |
| Supported Protocols | Modbus TCP/IP Client and Server |
| Programming Capability | Configurable via ControlLogix programming environment |
| Operating Voltage | 5–24 VDC |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | 0°C to 60°C |
| Compliance | CE, UL certified |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.28 kg |
Applications
• Modbus Network Integration – Connects ControlLogix processors with Modbus devices for both client and server roles.
• Data Acquisition – Collects and serves process data from multiple Modbus-enabled devices.
• Process Automation – Facilitates automation workflows requiring TCP/IP-based Modbus communication.
• Industrial Device Integration – Bridges ControlLogix processors with legacy or third-party Modbus equipment.
• Flexible Networking – Supports simultaneous client/server operation for versatile network architectures.
Advantages
• Client/Server Capability – Operates as both Modbus TCP/IP client and server, providing network flexibility.
• High-Speed Connectivity – 10/100 Mbit/s Ethernet ensures fast and reliable data exchange.
• Compact Design – Lightweight and panel-mountable for convenient integration.
• Easy Configuration – Configurable through the ControlLogix programming environment.
• Industrial Reliability – CE and UL certified for dependable operation in industrial environments.
FAQ
- What processors is the MVI56-MNET compatible with?
It is compatible with Allen-Bradley ControlLogix processors. - Does this module support both client and server functions?
Yes, it can operate as both a Modbus TCP/IP client and server. - How many ports does it have?
It has 1 RJ45 Serial Configuration Port (CFG) and 1 RJ45 Ethernet Port (Modbus). - What is the operating voltage range?
The module operates between 5 VDC and 24 VDC. - Can it interface with multiple Modbus devices?
Yes, it supports communication with multiple Modbus-compatible devices over Ethernet. - Is programming required for configuration?
Yes, configuration is performed through the ControlLogix programming environment. - What is the operating temperature range?
It operates safely from 0°C to 60°C. - How is the module mounted?
It can be mounted on a DIN rail or directly on a panel. - Does it support high-speed Ethernet communication?
Yes, it supports 10/100 Mbps Ethernet for reliable data transfer. - Is the module certified for industrial use?
Yes, it is CE and UL certified for industrial applications.
Related Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x RJ45 Ethernet + 1 CFG | 5–24 VDC |
| MVI56E-MNETC | Modbus TCP/IP Client Enhanced Module | 1 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MCMR | Modbus Master/Slave Communication Module | 2 x Modbus + 1 CFG | 5–24 VDC |
| MVI56-MNETI | Industrial Modbus TCP/IP Client Module | 1 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MNET-GW | Modbus TCP/IP Gateway Module | 2 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MNET-PRO | Programmable Modbus TCP/IP Client Module | 1 x RJ45 Ethernet | 5/24 VDC |
Popular Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI56-MNET | Modbus TCP/IP Client/Server Network Interface Module | 1 x RJ45 Ethernet + 1 CFG | 5–24 VDC |
| MVI56E-MNETC | Modbus TCP/IP Client Enhanced Module | 1 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MCMR | Modbus Master/Slave Communication Module | 2 x Modbus + 1 CFG | 5–24 VDC |
| MVI56-MNETI | Industrial Modbus TCP/IP Client Module | 1 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MNET-GW | Modbus TCP/IP Gateway Module | 2 x RJ45 Ethernet | 5/24 VDC |
| MVI56-MNET-PRO | Programmable Modbus TCP/IP Client Module | 1 x RJ45 Ethernet | 5/24 VDC |
