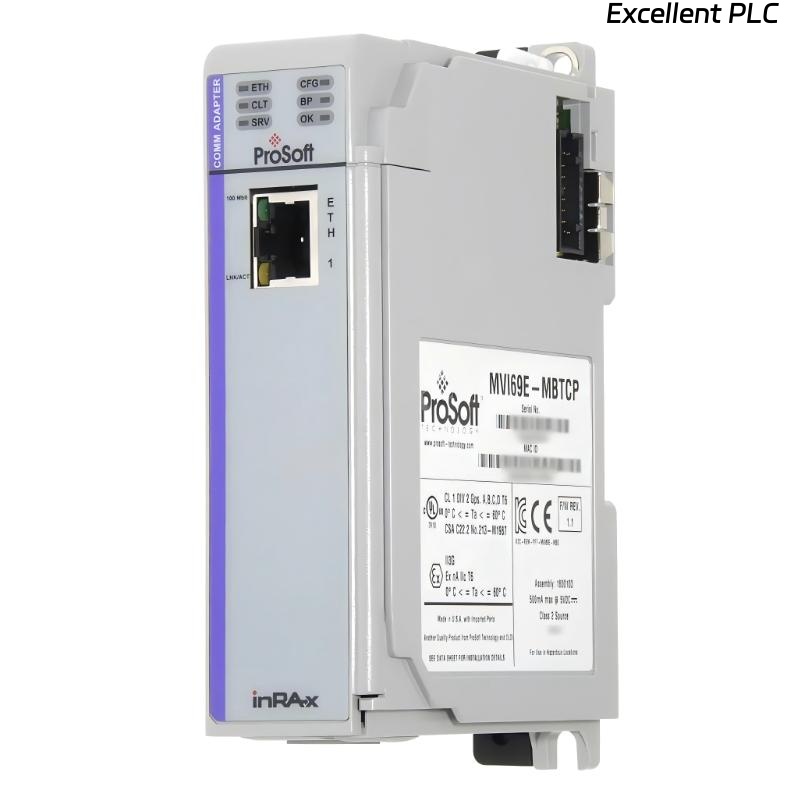

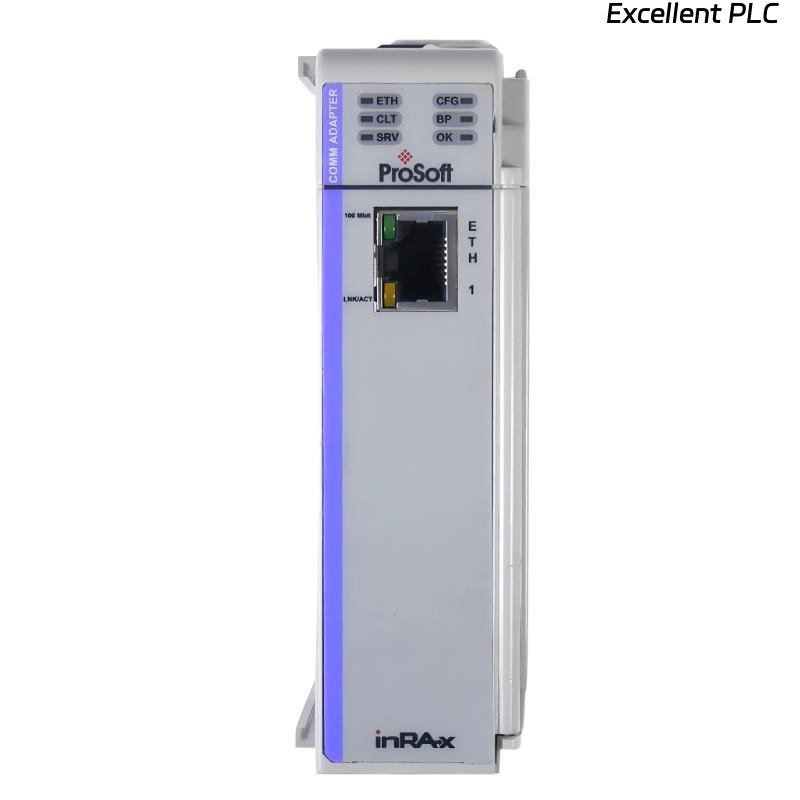

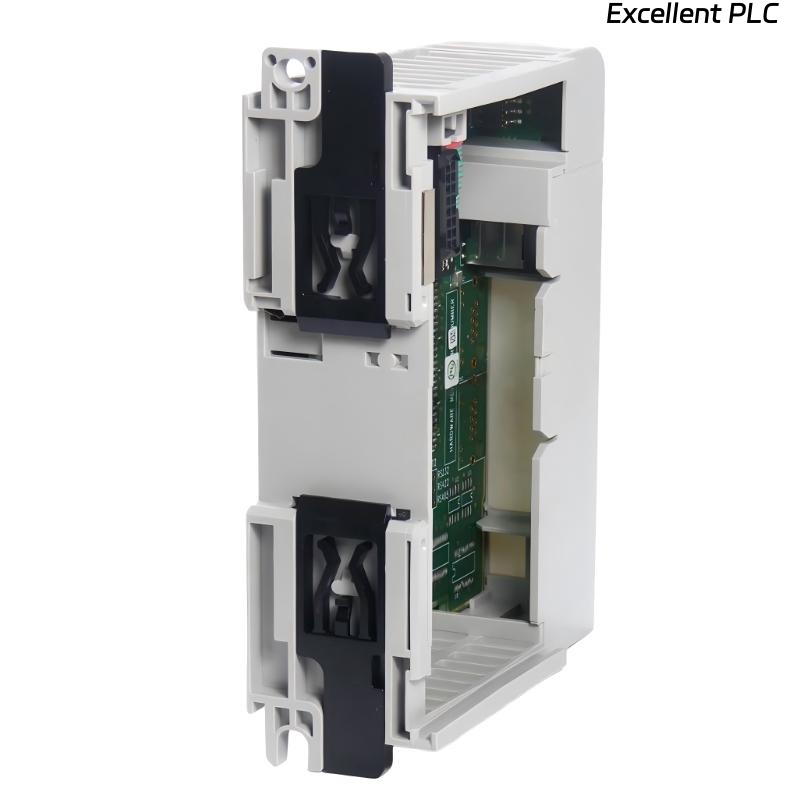

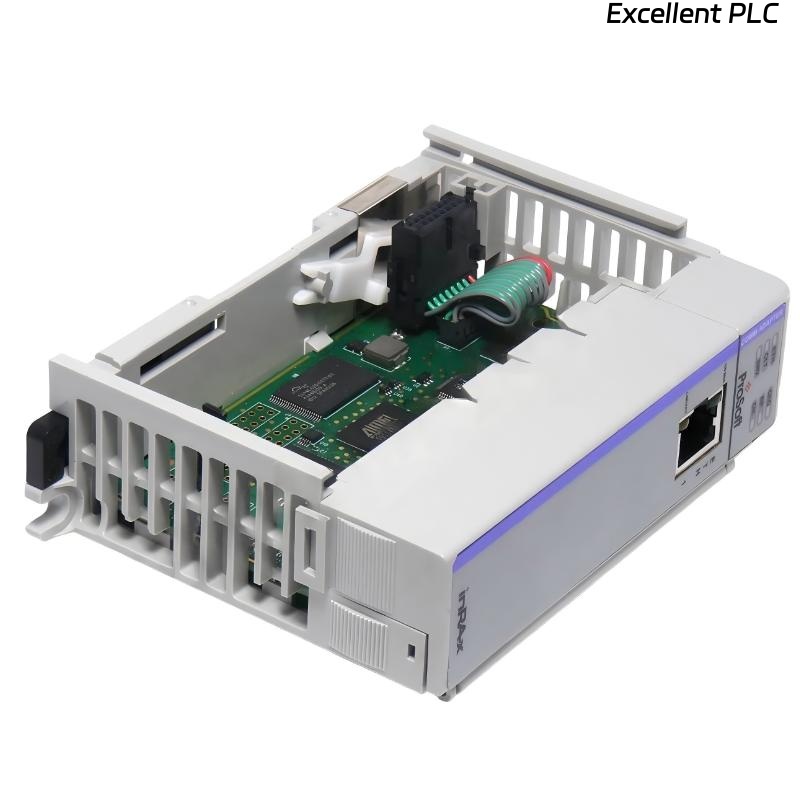

ProSoft MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft MVI69E-MBTCP is a Modbus TCP/IP Enhanced Communication Module designed for Allen-Bradley CompactLogix or MicroLogix platforms. It enables these controllers to communicate seamlessly with a wide range of Modbus-compatible devices, supporting both client and server operations for flexible network integration.
Equipped with 1 x 10/100 Mbps Ethernet Port, the module facilitates diagnostic and application data exchange, providing reliable and efficient communication for industrial automation, process monitoring, and control applications. This module is ideal for integrating CompactLogix or MicroLogix controllers into existing Modbus networks, bridging modern and legacy devices.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Modbus TCP/IP Enhanced Communication Module |
| Compatibility | Allen-Bradley CompactLogix or MicroLogix Controllers |
| Ethernet Port | 1 x 10/100 Mbps Ethernet |
| Supported Protocols | Modbus TCP/IP Client and Server |
| Programming Capability | Configurable via CompactLogix or MicroLogix programming environment |
| Operating Voltage | 5–24 VDC |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | 0°C to 60°C |
| Compliance | CE, UL certified |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.48 kg |
Applications
• Modbus Network Integration – Connects CompactLogix or MicroLogix controllers with Modbus-compatible devices for both client and server roles.
• Data Acquisition – Collects and serves process data from multiple Modbus-enabled devices.
• Process Automation – Facilitates automation workflows requiring TCP/IP-based Modbus communication.
• Industrial Device Integration – Bridges controllers with legacy or third-party Modbus equipment.
• Diagnostic Monitoring – Supports Ethernet-based diagnostic and application data for improved system monitoring.
Advantages
• Client/Server Capability – Operates as both Modbus TCP/IP client and server, providing network flexibility.
• High-Speed Ethernet – 10/100 Mbps port ensures fast and reliable data transfer.
• Compact Design – Lightweight and panel-mountable for convenient integration in tight spaces.
• Flexible Configuration – Configurable through CompactLogix or MicroLogix programming environment.
• Reliable Industrial Operation – CE and UL certified for dependable use in industrial environments.
FAQ
- What controllers is the MVI69E-MBTCP compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix controllers. - Does this module support both client and server functions?
Yes, it can operate as both a Modbus TCP/IP client and server. - How many Ethernet ports does it have?
It has 1 x 10/100 Mbps Ethernet port. - What is the operating voltage range?
The module operates between 5 VDC and 24 VDC. - Can it interface with multiple Modbus devices?
Yes, it supports multiple Modbus devices over Ethernet. - Is programming required for configuration?
Yes, configuration is performed through CompactLogix or MicroLogix programming environments. - What is the operating temperature range?
It operates safely from 0°C to 60°C. - How is the module mounted?
It can be mounted on a DIN rail or directly on a panel. - Does it support diagnostic monitoring?
Yes, it supports Ethernet-based diagnostic and application data for monitoring purposes. - Is the module certified for industrial use?
Yes, it is CE and UL certified for industrial applications.
Related Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI69E-MBTCP | Modbus TCP/IP Enhanced Communication Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MBTCP | Modbus TCP/IP Client/Server Module | 1 x Ethernet | 5–24 VDC |
| MVI69E-MNETC | Enhanced Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNETI | Industrial Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNET-GW | Modbus TCP/IP Gateway Module | 2 x Ethernet | 5–24 VDC |
| MVI69-MNET-PRO | Programmable Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
Popular Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI69E-MBTCP | Modbus TCP/IP Enhanced Communication Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MBTCP | Modbus TCP/IP Client/Server Module | 1 x Ethernet | 5–24 VDC |
| MVI69E-MNETC | Enhanced Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNETI | Industrial Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNET-GW | Modbus TCP/IP Gateway Module | 2 x Ethernet | 5–24 VDC |
| MVI69-MNET-PRO | Programmable Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
