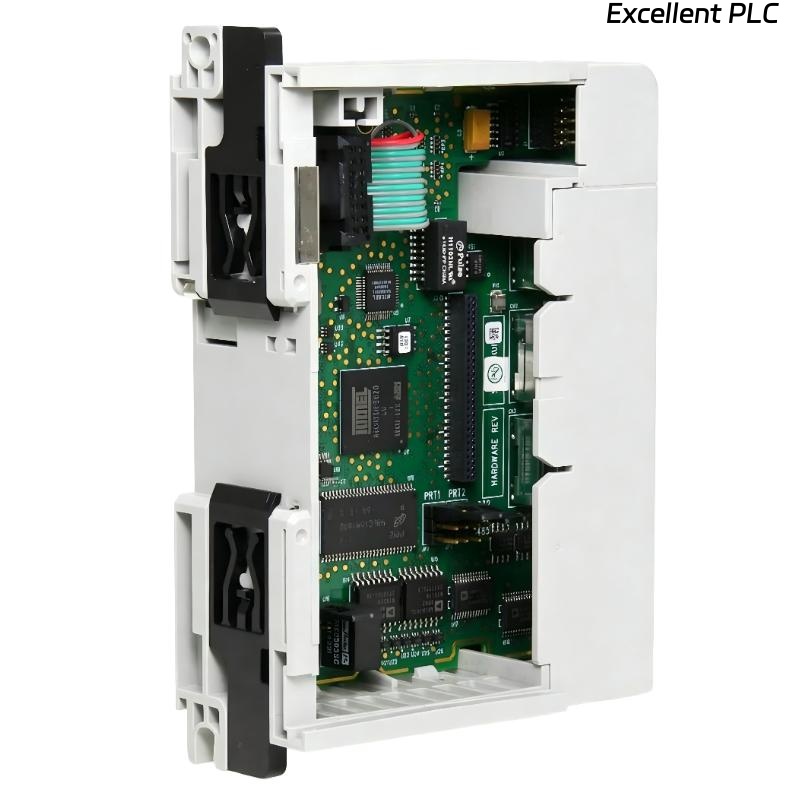

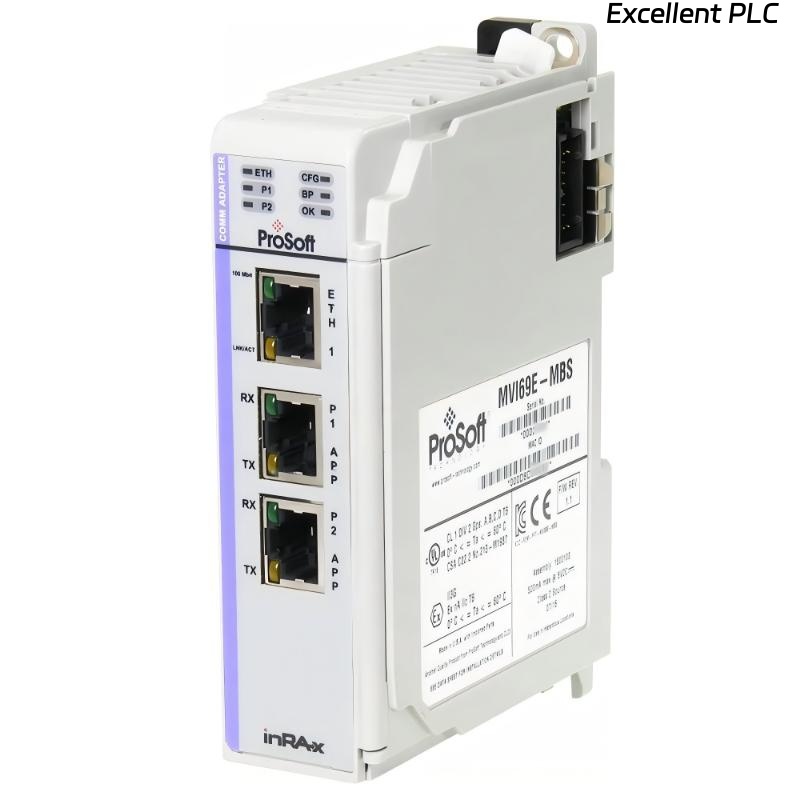

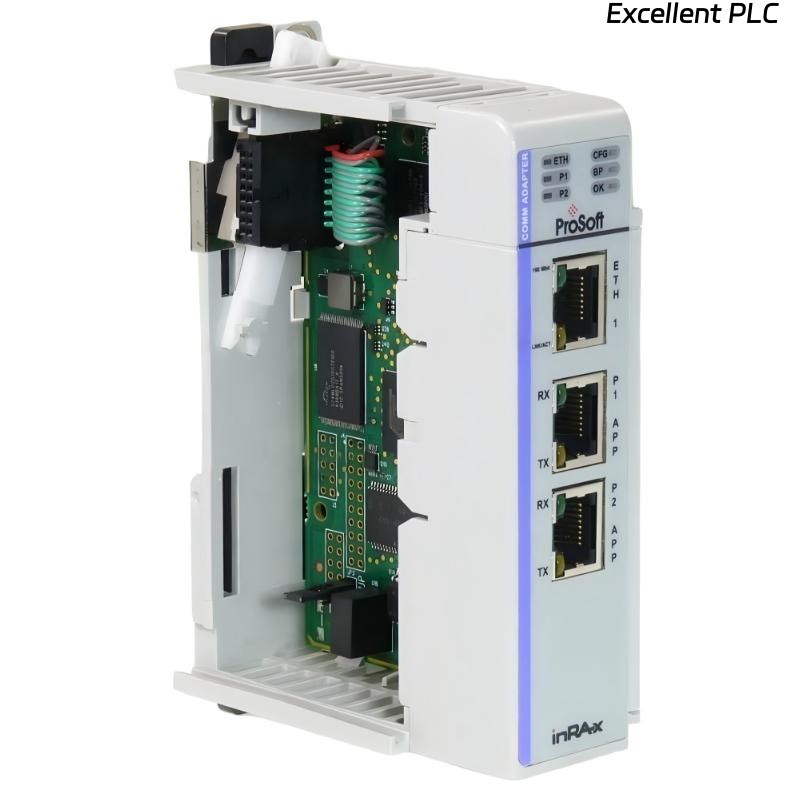

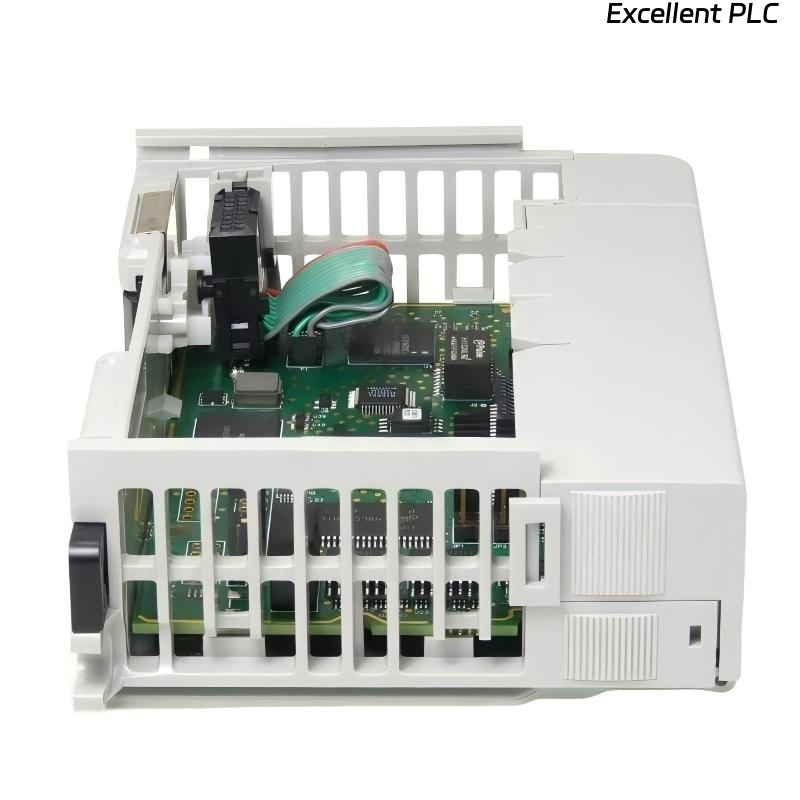

ProSoft MVI69E-MBS Modbus Serial Enhanced Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft MVI69E-MBS is a Modbus Serial Enhanced Communication Module designed for Allen-Bradley CompactLogix and MicroLogix platforms. It enables controllers to communicate with a wide range of Modbus-compatible devices, supporting both Master and Slave functionality for flexible network deployment.
Equipped with 1 Ethernet port (10/100 Mbps) and 2 serial ports (RS-232, RS-485, or RS-422), the module provides a versatile interface for industrial automation systems. This module is ideal for legacy device integration, process control, and network expansion in complex Modbus networks.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Modbus Serial Enhanced Communication Module |
| Compatibility | Allen-Bradley CompactLogix or MicroLogix Controllers |
| Ethernet Port | 1 x 10/100 Mbps RJ45 |
| Serial Ports | 2 x RS-232/RS-485/RS-422 RJ45 |
| Protocol Support | Modbus Master/Slave |
| Connectivity | Can support multiple devices on both Ethernet and serial ports |
| Data Handling | Acts as an input/output interface between Modbus network and controller |
| Operating Voltage | 5–24 VDC |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | 0°C to 60°C |
| Compliance | CE, UL certified |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.64 kg |
Applications
• Modbus Network Integration – Connects CompactLogix or MicroLogix controllers with both Master and Slave Modbus devices, providing flexible network configurations.
• Multi-Device Communication – Supports multiple serial and Ethernet devices for efficient data collection and control.
• Industrial Automation – Ideal for process control workflows that require reliable Modbus communication across multiple platforms.
• Legacy Device Connectivity – Bridges modern controllers with existing serial-based Modbus devices, extending network compatibility.
• Network Expansion – Enables expansion of Modbus networks using both serial and Ethernet connectivity without complex rewiring.
Advantages
• Master/Slave Flexibility – Operates in either Master or Slave mode, allowing versatile deployment in various network topologies.
• Multiple Communication Ports – 1 Ethernet port plus 2 serial ports support simultaneous device connections for enhanced integration.
• High-Speed Connectivity – 10/100 Mbps Ethernet ensures fast and reliable data exchange with minimal latency.
• Compact and Durable – Lightweight and panel- or DIN rail-mountable, providing space-saving installation in industrial cabinets.
• Industrial Reliability – CE and UL certifications guarantee robust performance in demanding environments.
FAQ
- Which controllers is the MVI69E-MBS compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix controllers. - Can this module function as both Master and Slave?
Yes, it supports both Modbus Master and Slave operation. - How many ports does the module have?
It has 1 Ethernet port and 2 serial ports (RS-232, RS-485, or RS-422). - What types of devices can be connected?
It can interface with a wide variety of Modbus-compatible devices over serial or Ethernet. - What is the operating voltage range?
The module operates safely at 5–24 VDC. - Does the module require configuration or programming?
Yes, configuration is performed via CompactLogix or MicroLogix programming tools. - What is the operating temperature range?
It operates from 0°C to 60°C. - How is the module mounted?
It can be mounted on a DIN rail or directly on a panel. - Is the module certified for industrial use?
Yes, it is CE and UL certified. - Can it support multiple devices simultaneously?
Yes, the combination of Ethernet and serial ports allows connections to multiple devices at once.
Related Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI69E-MBS | Modbus Serial Enhanced Communication Module | 1 x Ethernet + 2 serial | 5–24 VDC |
| MVI69E-MBTCP | Modbus TCP/IP Enhanced Communication Module | 1 x Ethernet | 5–24 VDC |
| MVI69-PDPMV1 | PROFIBUS DP V1 Master Communication Module | 1 x RS-232 + 1 RS-485 | 5–24 VDC |
| MVI69-MNETI | Industrial Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNET-GW | Modbus TCP/IP Gateway Module | 2 x Ethernet | 5–24 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
Popular Models
| Model Number | Description | Ports | Voltage |
|---|---|---|---|
| MVI69E-MBS | Modbus Serial Enhanced Communication Module | 1 x Ethernet + 2 serial | 5–24 VDC |
| MVI69E-MBTCP | Modbus TCP/IP Enhanced Communication Module | 1 x Ethernet | 5–24 VDC |
| MVI69-PDPMV1 | PROFIBUS DP V1 Master Communication Module | 1 x RS-232 + 1 RS-485 | 5–24 VDC |
| MVI69-MNETI | Industrial Modbus TCP/IP Client Module | 1 x Ethernet | 5–24 VDC |
| MVI69-MNET-GW | Modbus TCP/IP Gateway Module | 2 x Ethernet | 5–24 VDC |
| MVI56E-MCMR | Modbus Master/Slave Enhanced Communication Module | 2 x Ethernet + 1 CFG | 5–24 VDC |
