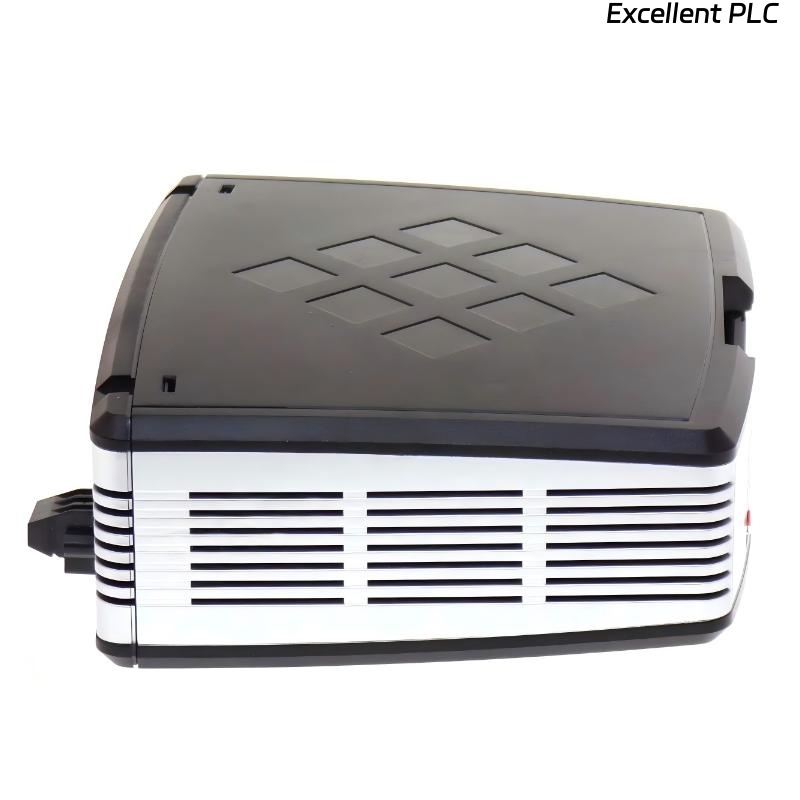

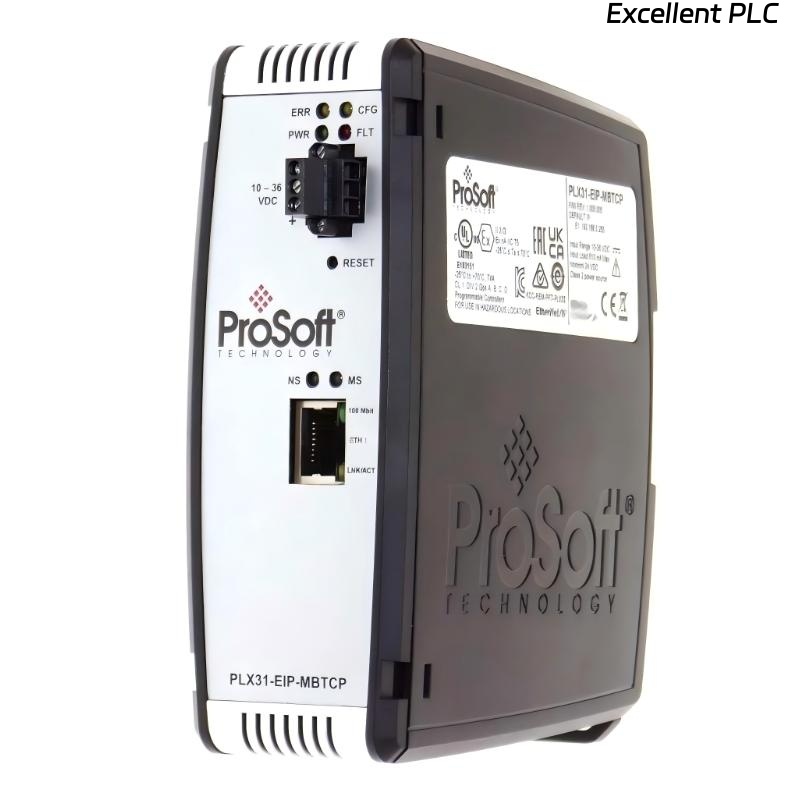

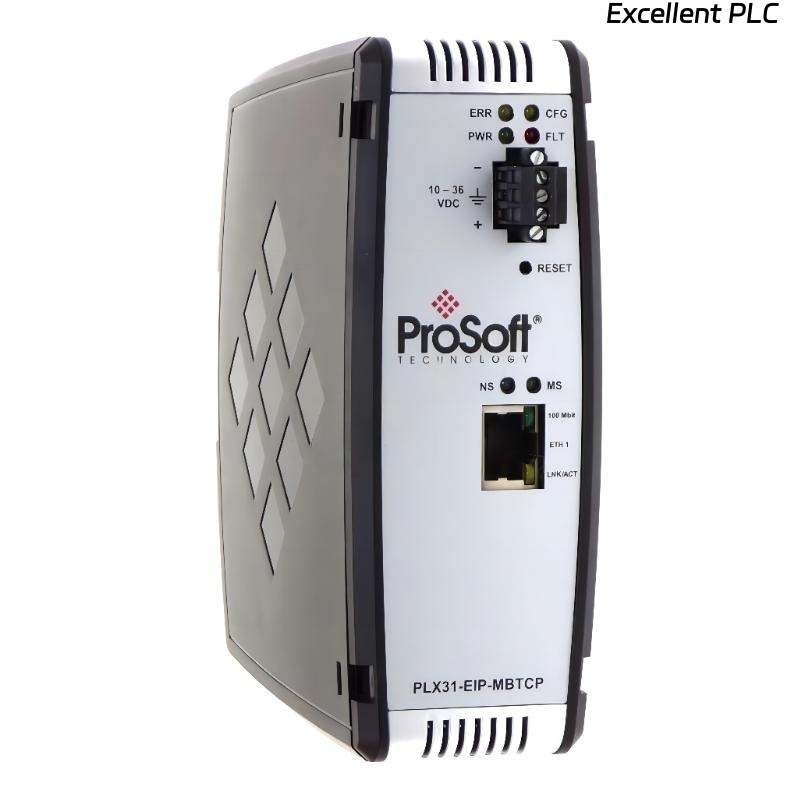

ProSoft PLX31-EIP-MBTCP EtherNet/IP To Modbus TCP/IP Gateway

Product Introduction

The ProSoft PLX31-EIP-MBTCP is an EtherNet/IP to Modbus TCP/IP Gateway designed to connect Allen-Bradley EtherNet/IP networks with Modbus TCP/IP devices. It provides a seamless interface for controllers to communicate efficiently with multiple Modbus-compatible devices, making it ideal for industrial automation, process control, and network integration applications.

This gateway supports remote configuration and diagnostics, prioritization of I/O data to optimize Ethernet bandwidth, and the storage of configuration files on an SD card. Its DIN-rail mountable design and robust power supply range ensure reliable operation in demanding industrial environments.

---

Product Specifications

---

Applications

• EtherNet/IP to Modbus TCP/IP Conversion – Connects Allen-Bradley EtherNet/IP networks with Modbus TCP/IP devices for seamless data exchange.

• High-Volume Data Transfer – Supports up to 10,000 16-bit registers, enabling large-scale data exchange between networks.

• Remote Configuration and Diagnostics – Simplifies setup and troubleshooting of industrial networks.

• Optimized Network Performance – Allows prioritization of RPIs for status or control data to maximize Ethernet bandwidth.

• Industrial Automation and Control – Ideal for factory automation, process monitoring, and multi-vendor network integration.

---

Advantages

• Secure and Reliable Communication – Module switch provides secure configuration for robust industrial networking.

• High Data Capacity – Handles a large number of registers for efficient communication in complex applications.

• Flexible Mounting – DIN-rail mountable for space-efficient installation in control panels.

• Easy Integration – Works with both EtherNet/IP and Modbus TCP/IP networks, reducing integration complexity.

• Remote Management – Remote configuration and diagnostics save time on maintenance and troubleshooting.

FAQ

1. Which networks does the PLX31-EIP-MBTCP support?
   It supports Allen-Bradley EtherNet/IP and Modbus TCP/IP networks.
2. How many registers can be used for data exchange?
   Up to 10,000 16-bit registers can be exchanged.
3. Can the module be configured remotely?
   Yes, it supports remote configuration and diagnostics.
4. Does the module support secure configuration?
   Yes, using the module switch for v1.04 and later firmware versions.
5. What is the operating voltage range?
   It operates between 10 V DC and 36 V DC.
6. How is the module mounted?
   It is DIN-rail mountable.
7. Can it prioritize certain I/O data?
   Yes, RPIs can be set for status and control data to optimize Ethernet bandwidth.
8. Is there support for storing configuration files?

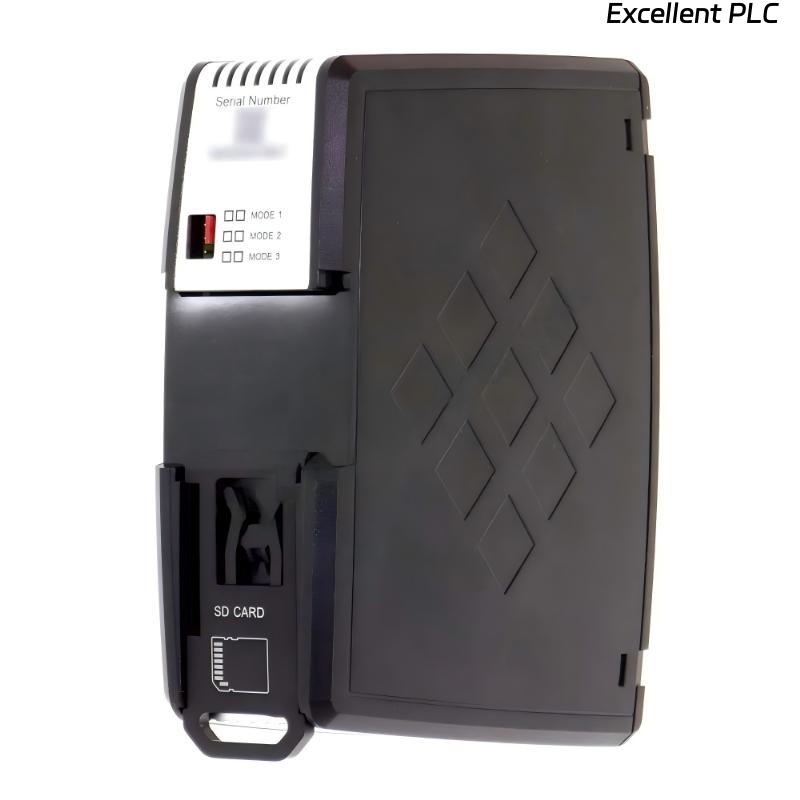

   Yes, it supports configuration storage via the SD card slot.
9. What is the operating temperature range?
   It operates safely from 0°C to 60°C.
10. Is the module certified for industrial use?
    Yes, it is CE and UL certified.
