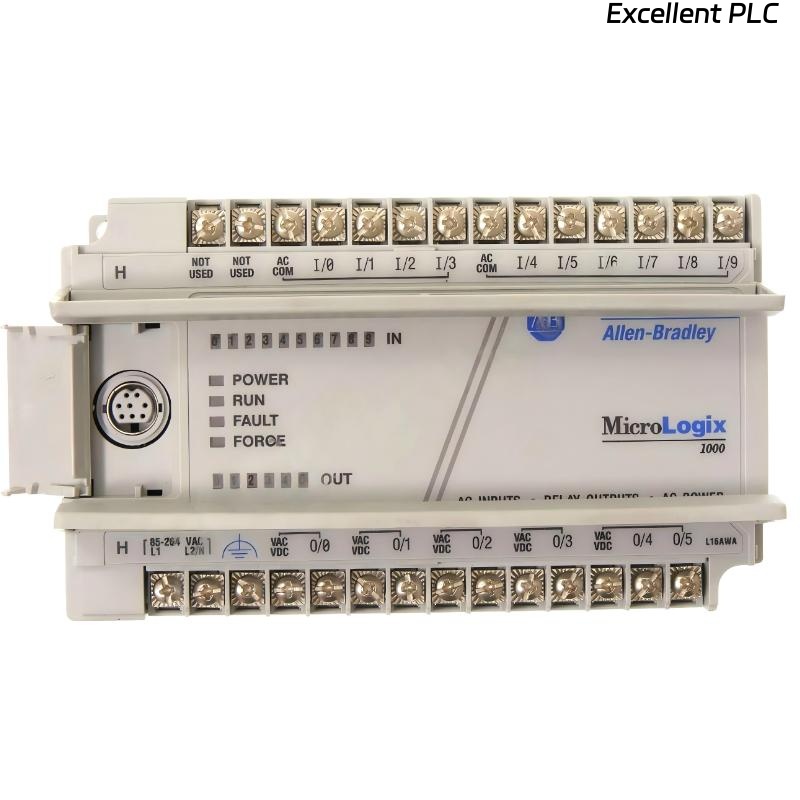

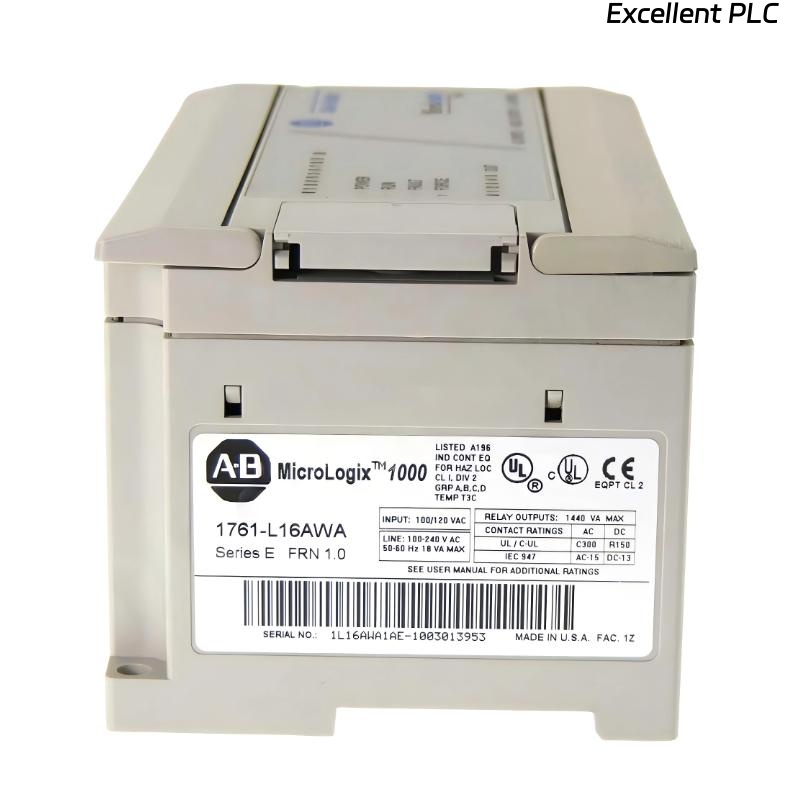

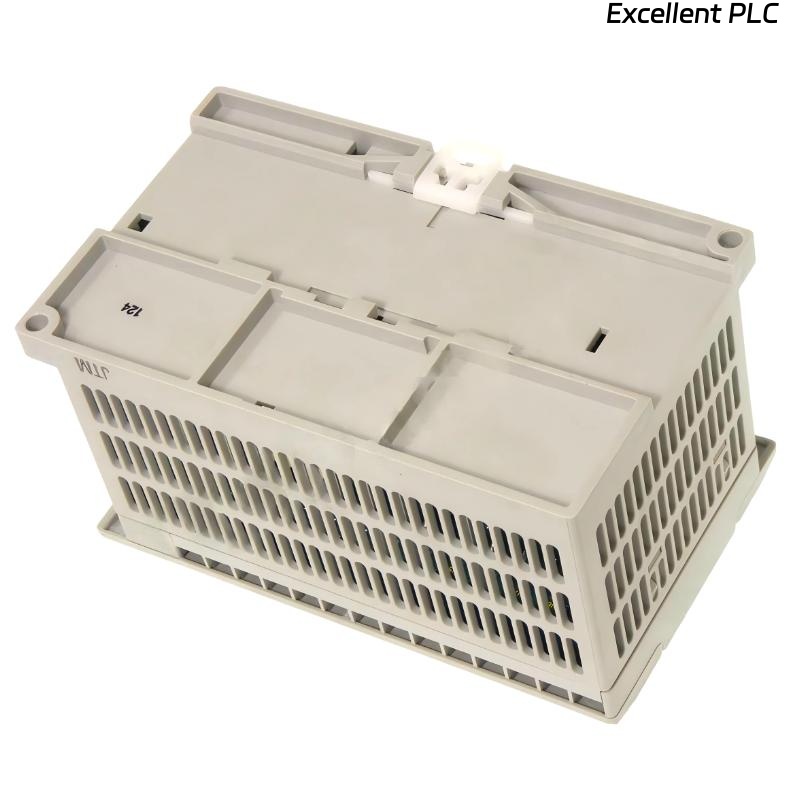

Allen Bradley 1761-L16AWA MicroLogix 1000 Programmable Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1761-L16AWA is a MicroLogix 1000 programmable controller designed for small to medium standalone automation systems. Powered by 120/240 VAC, it integrates 10 digital inputs and 6 relay outputs, providing a flexible solution for OEM equipment, machine control, and simple industrial automation applications.
This controller is ideal for applications that require AC-powered operation while maintaining reliable control over motors, alarms, and sequencing processes. Its robust design ensures long-term stability and dependable performance in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L16AWA |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 120/240 VAC |
| Digital Inputs | 10 × AC/DC Compatible Inputs |
| Outputs | 6 × Relay Outputs |
| User Memory | 1 KB EEPROM |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 133 × 73 × 80 mm |
| Weight | 0.386 kg |
Applications
● Standalone machine automation for small to medium industrial equipment.
● Motor control and interlock logic in AC-powered systems.
● Conveyor and packaging systems requiring simple sequencing.
● Alarm monitoring and signal switching applications.
● OEM panel-mounted equipment with AC supply availability.
● Small process control systems with basic I/O needs.
Advantages
● AC-powered design compatible with standard 120/240 VAC systems.
● Integrated digital I/O simplifies installation and reduces wiring.
● Relay outputs suitable for switching AC or DC loads.
● Compact form factor fits into tight panel spaces.
● EEPROM memory ensures program retention during power cycles.
● Easy programming using RSLogix 500 software.
FAQ
-
What power supply does the 1761-L16AWA require?
It operates on 120/240 VAC. -
How many digital inputs and outputs are available?
10 digital inputs and 6 relay outputs. -
Are the outputs relay or transistor type?
The outputs are relay type. -
How much user memory is available?
1 KB of EEPROM memory. -
Which programming software is compatible?
RSLogix 500 is used to program this controller. -
Can it control AC motors?
Yes, relay outputs can control AC motors or contactors within rated limits. -
Does it support expansion modules?
MicroLogix 1000 series controllers have fixed I/O with limited expansion capability. -
Is it suitable for OEM panel applications?
Yes, designed for compact panels and small equipment. -
Can it manage alarm and signal logic?
Yes, digital inputs and relay outputs can be used for alarms and signal control. -
What applications is this controller best suited for?
Standalone machine automation, OEM equipment, simple motor control, and basic process sequencing.
Related Models
| Model | Description |
|---|---|
| 1761-L10BWA | MicroLogix 1000, 6 I/O AC-powered Controller |
| 1761-L16BWB | MicroLogix 1000, 16 I/O DC-powered Controller |
| 1761-L10BXB | MicroLogix 1000, Mixed Output DC/Relay Controller |
| 1761-L20BWB | MicroLogix 1000, 20 I/O DC-powered Controller |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
Popular Models
| Model | Description |
|---|---|
| 1761-L16AWA | MicroLogix 1000, 16 I/O AC-powered Controller |
| 1761-L10BWA | MicroLogix 1000, AC-powered Controller |
| 1761-L16BWB | MicroLogix 1000, DC-powered Controller |
| 1761-L10BXB | MicroLogix 1000, Mixed Output DC/Relay Controller |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
