Allen Bradley 5069-AENTR Compact 5000 I/O EtherNet/IP Adapter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

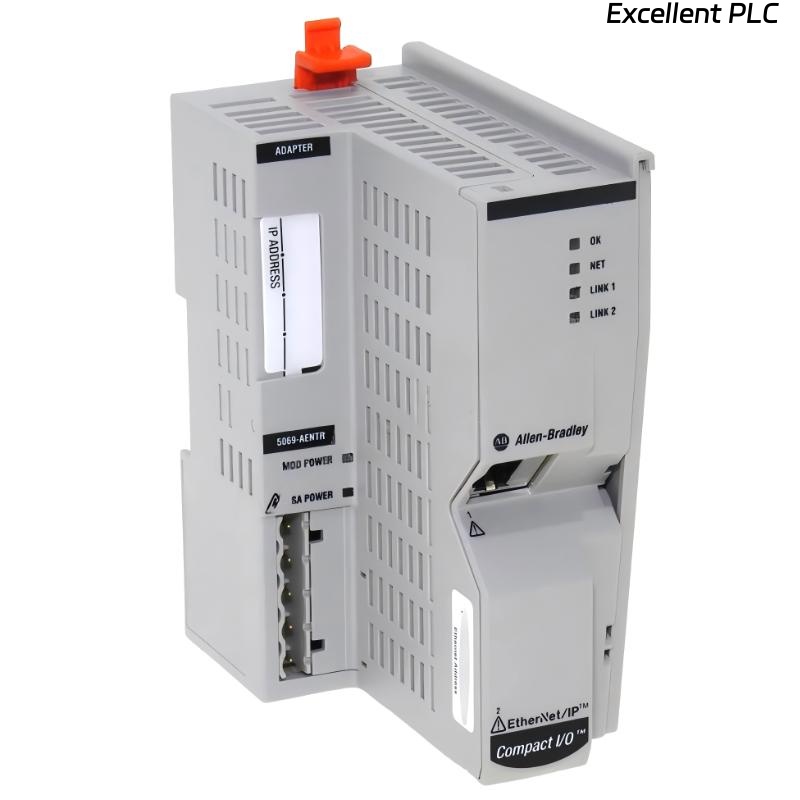

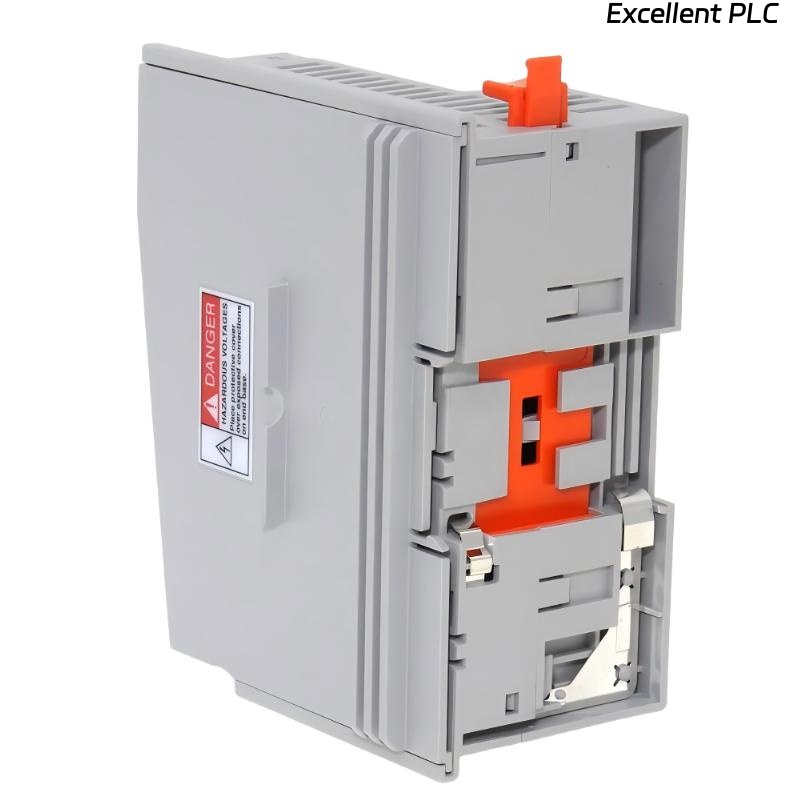

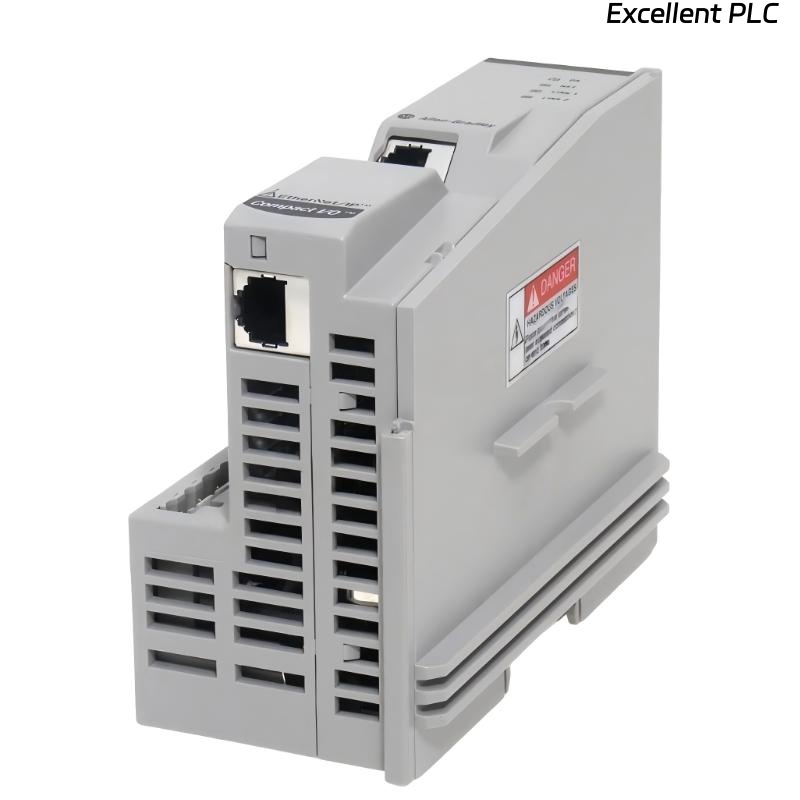

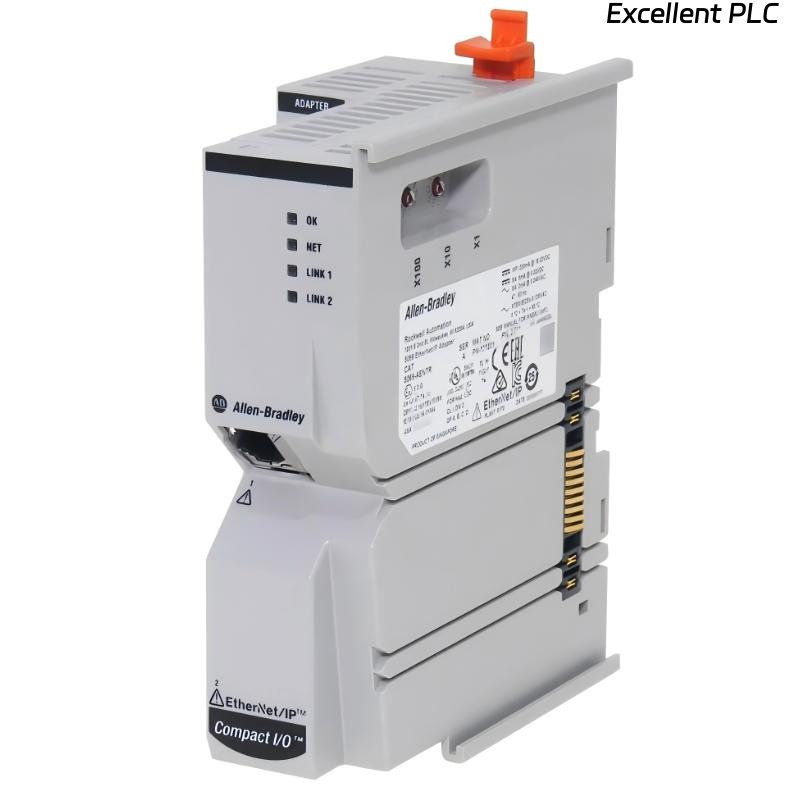

The Allen Bradley 5069-AENTR Compact 5000 I/O EtherNet/IP Adapter is a high-speed industrial communication adapter designed for Compact 5000 distributed I/O systems and Logix5000 automation architectures. It enables efficient EtherNet/IP communication between 5069 Compact I/O modules and Logix5000 controllers, supporting reliable real-time industrial data exchange in modern automation environments.
This slim dual-port communication adapter supports 10/100/1000 Mbps Ethernet connectivity, providing high-speed data transfer for manufacturing systems, process automation, packaging machinery, and distributed industrial control applications. The module is engineered to support up to 31 local Compact 5000 I/O modules, making it suitable for scalable industrial automation systems requiring flexible distributed I/O configurations.
The 5069-AENTR provides both system-side and field-side power to connected Compact I/O modules, simplifying system architecture and reducing additional power supply requirements. Configured through the Studio 5000 Logix Designer application, the adapter integrates seamlessly into Allen Bradley Logix5000 control platforms. Its compact DIN rail design allows efficient installation inside industrial control cabinets while maintaining reliable industrial network performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 5069-AENTR |
| Series | Compact 5000 |
| Product Type | EtherNet/IP I/O Adapter |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | Slim Dual Port |
| Communication Speed | 10/100/1000 Mbps |
| Controller Compatibility | Logix5000 Controllers |
| Supported I/O Modules | Up to 31 Local I/O Modules |
| Power Distribution | System-Side and Field-Side Power |
| Configuration Software | Studio 5000 Logix Designer |
| Mounting Type | DIN Rail Mounting |
| Application Type | Distributed Industrial I/O |
| Network Architecture | Industrial Ethernet |
| Cooling Method | Passive Cooling |
| Dimensions | 123 × 63 × 105.4 mm |
| Weight | 0.485 kg |
Applications
• Distributed I/O Systems: Provides EtherNet/IP communication between Compact 5000 I/O modules and Logix5000 controllers.
• Manufacturing Automation: Supports high-speed industrial networking for automated production systems.
• Packaging Machinery: Enables reliable communication for packaging and processing equipment.
• Material Handling Systems: Used in conveyors and automated transport systems requiring distributed control.
• OEM Machine Building: Suitable for scalable machine automation architectures with multiple I/O modules.
Advantages
• High-Speed Gigabit Communication: Supports fast 10/100/1000 Mbps EtherNet/IP networking.
• Slim Compact Design: Saves cabinet space while maintaining high communication performance.
• Supports Up to 31 I/O Modules: Enables scalable distributed I/O system expansion.
• Integrated Power Distribution: Provides both system-side and field-side power to Compact I/O modules.
• Seamless Logix5000 Integration: Fully compatible with Studio 5000 Logix Designer environments.
• Reliable Industrial Networking: Designed for stable operation in demanding automation applications.
FAQ
- What is the primary function of this EtherNet/IP adapter?
It provides communication between Compact 5000 I/O modules and Logix5000 controllers over an EtherNet/IP network. - What communication speeds are supported?
The adapter supports 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet communication speeds. - How many I/O modules can this adapter support?
It supports up to 31 local Compact 5000 I/O modules. - What software is used to configure the module?
The adapter is configured using Studio 5000 Logix Designer software. - Does the module provide power to connected I/O modules?
Yes, it provides both system-side and field-side power distribution. - What applications commonly use this adapter?
It is commonly used in manufacturing automation, packaging systems, process control, and distributed I/O applications. - What type of network does the module use?
It uses industrial EtherNet/IP communication architecture. - How is the module installed?
The adapter is designed for DIN rail mounting inside industrial control cabinets. - What is the advantage of the slim dual-port design?
The slim design reduces panel space requirements while dual ports allow flexible network configurations. - Is this adapter compatible with Logix5000 controllers?
Yes, it is specifically designed for integration with Allen Bradley Logix5000 systems.
Related Models
| Model | Type | Communication | Ports | Features |
|---|---|---|---|---|
| 5069-AENTR | EtherNet/IP Adapter | EtherNet/IP | Dual Port | Supports 31 I/O |
| 5069-AEN2TR | EtherNet/IP Adapter | EtherNet/IP | Dual 1GB | High-Speed Communication |
| 5069-IB16 | Digital Input Module | Compact 5000 | — | 16 Channel |
| 5069-OB16 | Digital Output Module | Compact 5000 | — | DC Output |
| 5069-OW16 | Relay Output Module | Compact 5000 | — | Relay Switching |
| 5069-L306ER | CompactLogix Controller | EtherNet/IP | Dual Port | Motion Ready |
Popular Models
| Model | Type | Communication | Ports | Features |
|---|---|---|---|---|
| 5069-AENTR | EtherNet/IP Adapter | EtherNet/IP | Dual Port | Distributed I/O |
| 5069-AEN2TR | EtherNet/IP Adapter | EtherNet/IP | Dual 1GB | High-Speed Networking |
| 5069-L306ER | CompactLogix Controller | EtherNet/IP | Dual Port | Advanced Control |
| 5069-IB16 | Digital Input Module | Compact 5000 | — | High Density |
| 5069-OB16 | Digital Output Module | Compact 5000 | — | Compact Design |
| 5069-OW16 | Relay Output Module | Compact 5000 | — | Relay Output Control |
