Product Introduction

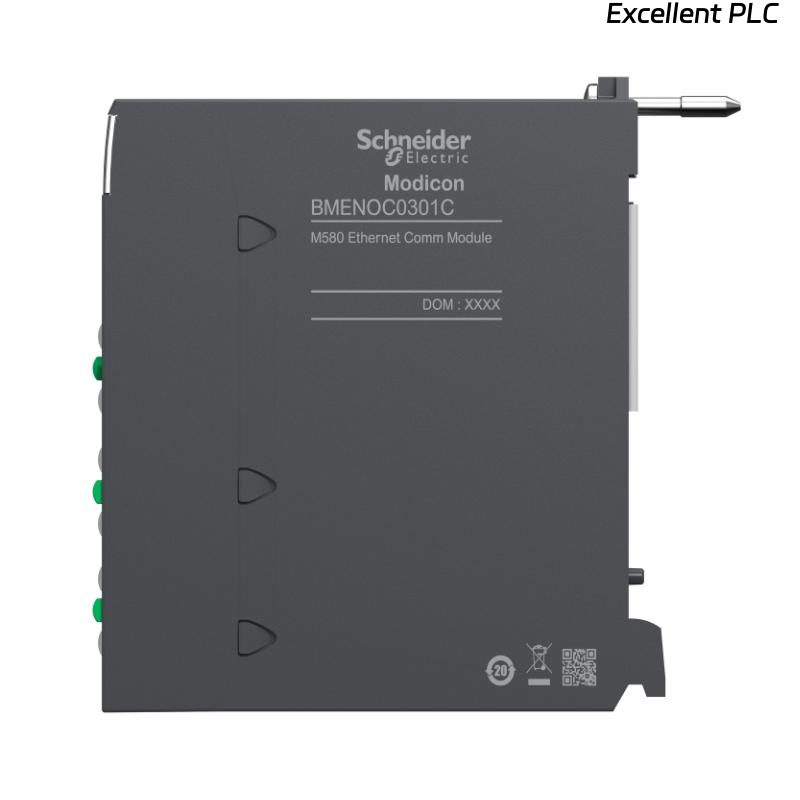

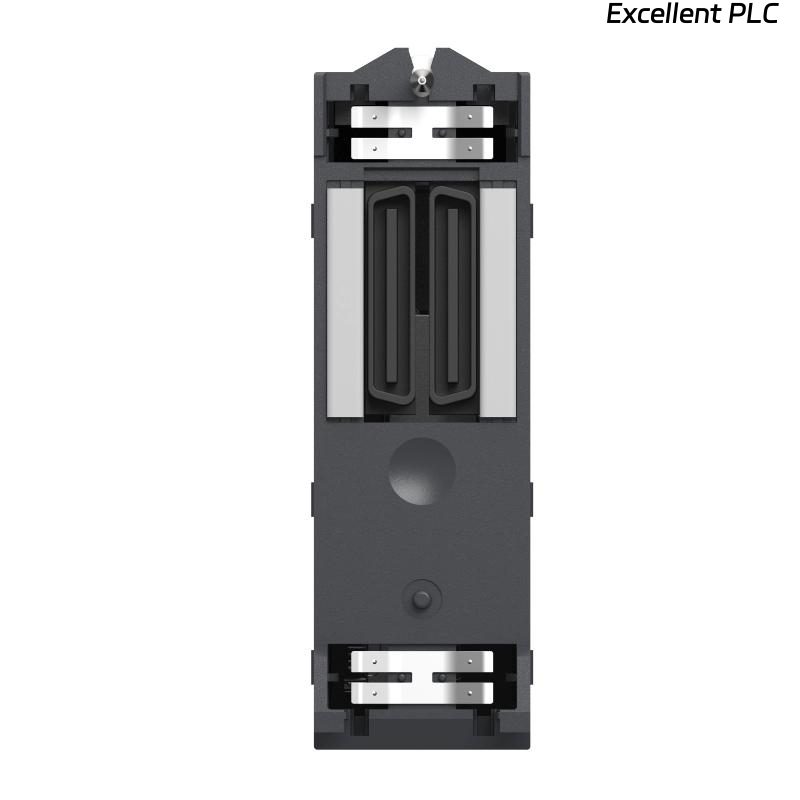

The Schneider BMENOC0301C Ethernet Communication Module is a high-performance network communication module designed for the Modicon M580 Programmable Automation Controller (PAC) platform. It provides advanced Ethernet connectivity for industrial automation systems, enabling reliable data exchange between controllers, remote I/O devices, HMIs, SCADA systems, and enterprise networks.

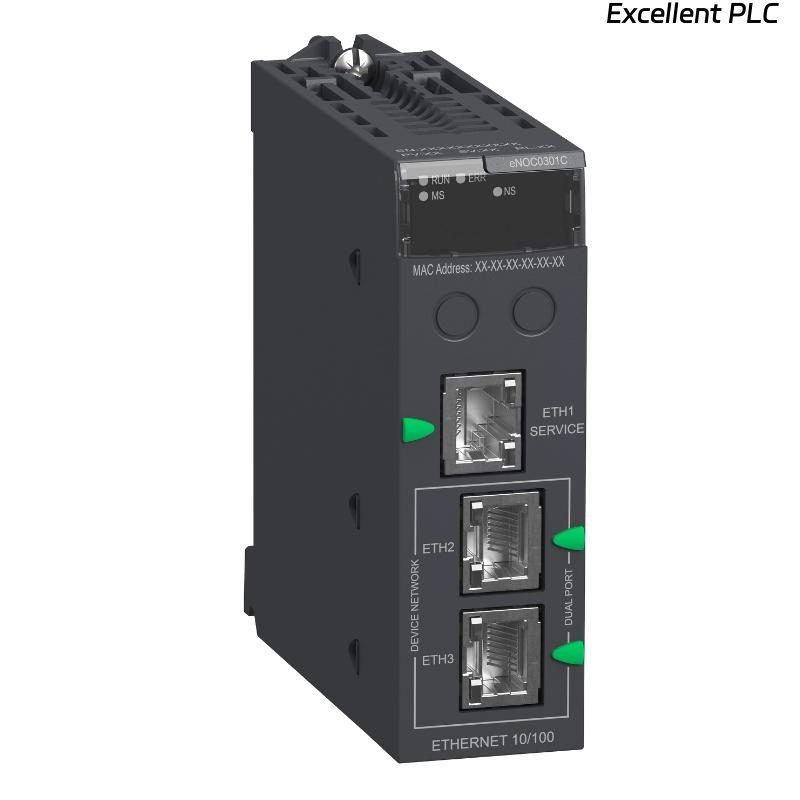

Equipped with three coated Ethernet RJ45 ports and an integrated multiport switch, the BMENOC0301C supports a wide range of industrial communication services, including Modbus TCP, EtherNet/IP, SNMP network management, and Rapid Spanning Tree Protocol (RSTP). The protective coating on the circuit board enhances durability and allows operation in harsh industrial environments.
The module is widely used in manufacturing facilities, power generation plants, water treatment systems, oil and gas operations, and process industries requiring secure and reliable Ethernet communications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMENOC0301C |
| Product Type | Ethernet Communication Module |
| Manufacturer | Schneider Electric |
| Series | Modicon M580 |
| Ethernet Ports | 3 RJ45 Ports |
| Port Protection | Coated Ports |
| Communication Protocols | Modbus TCP, EtherNet/IP |
| Network Features | Embedded Multiport Switch, RSTP, SNMP |
| Communication Services | I/O Scanner, Messaging, FDR Server, Bandwidth Management |
| Current Consumption | 555 mA |
| Power Supply | Internal Power Supply |
| Protection Rating | IP20 |
| Dimensions | 103.7 × 32 × 86 mm |
| Weight | 0.2 kg |
Applications
• Industrial Ethernet Networks – Provides communication between automation devices and controllers.
• Modicon M580 Systems – Expands network connectivity within M580 architectures.
• SCADA Integration – Enables communication with supervisory control systems.
• Remote I/O Networks – Supports Ethernet-based distributed I/O communications.
• Manufacturing Facilities – Connects production equipment and automation devices.
• Power Generation Plants – Facilitates monitoring and control data exchange.
• Water & Wastewater Facilities – Supports plant-wide Ethernet communications.
• Oil & Gas Operations – Enables reliable communication in critical process applications.
• Process Automation Systems – Integrates controllers, HMIs, and field devices.
• Industrial Network Management – Supports diagnostics and network monitoring functions.
Advantages
• Three Ethernet RJ45 Ports – Provides flexible network connectivity options.
• Protective Circuit Board Coating – Enhances reliability in harsh industrial environments.
• Modbus TCP and EtherNet/IP Support – Enables interoperability with a wide range of industrial devices.
• Integrated Multiport Switch – Simplifies network architecture and installation.
• RSTP Support – Improves network redundancy and availability.
• SNMP Network Management – Enables monitoring and administration of network resources.
• Bandwidth Management Functions – Optimizes communication performance.
• IP20 Protection Rating – Suitable for industrial control cabinet installations.
• Seamless M580 Integration – Designed specifically for Modicon M580 systems.
• Reliable Industrial Communication – Supports continuous operation in critical applications.
