Product Introduction

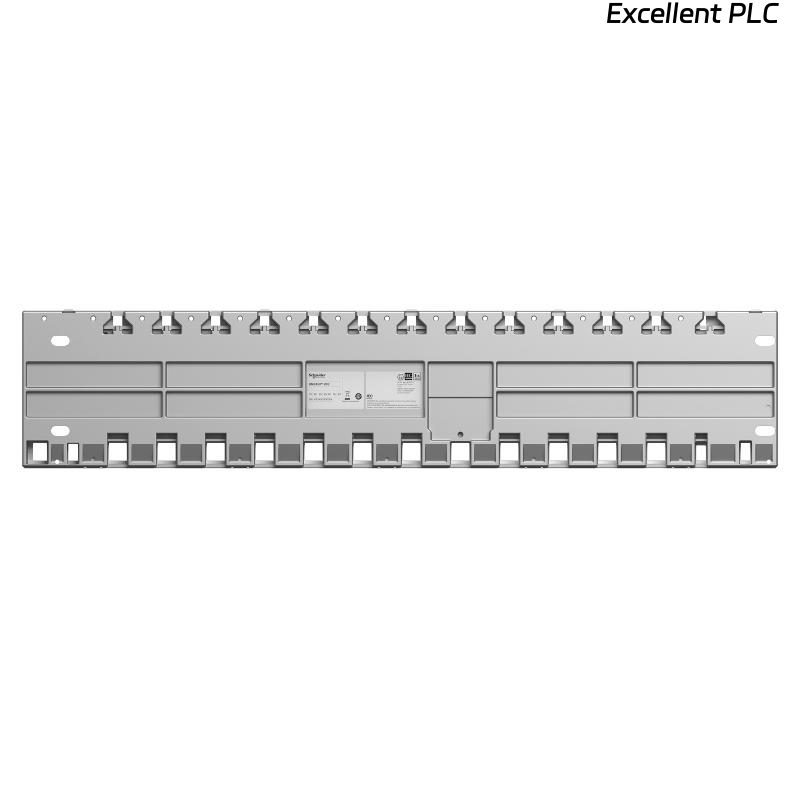

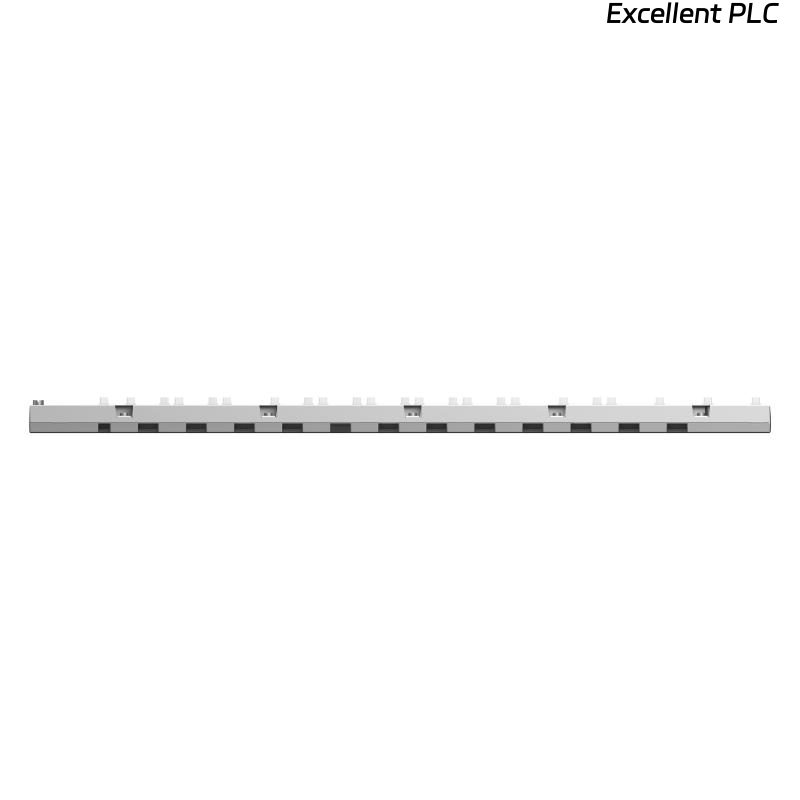

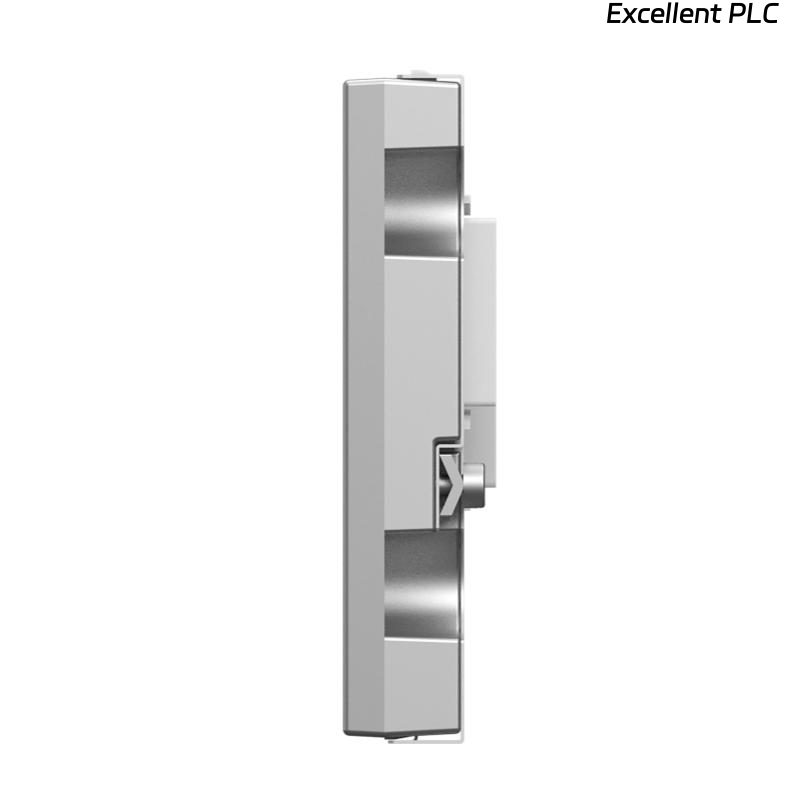

The Schneider BMEXBP1200 Ethernet Backplane is a high-performance 12-slot rack designed for the Modicon X80 platform, supporting both Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC). It serves as the central mounting and communication infrastructure for processors, power supplies, I/O modules, and application-specific modules within an automation system.
Featuring a dual Ethernet and X-bus architecture, the BMEXBP1200 provides 12 slots, including 8 slots with Ethernet and X-bus connectivity for mixed modules and 4 slots dedicated to X-bus modules. This flexible design enables efficient system expansion and supports complex automation architectures for medium and large process applications.
Built for industrial reliability, the backplane offers an MTBF of 1,500,000 hours and supports seamless integration of Modicon X80 components while simplifying maintenance and spare parts management across automation platforms.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMEXBP1200 |
| Product Type | Ethernet Backplane Rack |
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Number of Slots | 12 Slots |
| Ethernet & X-Bus Slots | 8 Slots |
| X-Bus Only Slots | 4 Slots |
| Backplane Architecture | Dual Ethernet and X-Bus |
| 24V DC Current Consumption | 164 mA |
| 3.3V DC Current Consumption | 86 mA |
| Expansion Connection | 1 XBE Expansion Connector |
| MTBF | 1,500,000 Hours |
| Protection Rating | IP20 |
| Compatible Platforms | Modicon M580 and Modicon M340 |
| Compatible Modules | BME Processors, BMX Processors, BMXCPS Power Supplies, I/O Modules, Application Modules |
| Standards Compliance | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
| Dimensions | 503.2 × 19 × 105.11 mm |
| Weight | 1.377 kg |
Applications
• Process Automation Systems – Provides the backbone for controller and I/O module integration.
• Power Generation Facilities – Supports large-scale control and monitoring architectures.
• Water & Wastewater Plants – Hosts distributed control and communication modules.
• Oil & Gas Operations – Enables installation of processors and I/O modules in critical systems.
• Chemical Processing Plants – Supports scalable automation infrastructure.
• Manufacturing Facilities – Serves as the foundation for machine and process control systems.
• Mining and Metals Processing – Supports rugged industrial automation deployments.
• Infrastructure Projects – Provides reliable rack-based control system architecture.
• Distributed Control Systems – Facilitates communication between processors and field modules.
• Industrial Ethernet Applications – Supports Ethernet-enabled automation networks.
Advantages
• 12-Slot Capacity – Accommodates processors, power supplies, and multiple I/O modules.
• Dual Ethernet and X-Bus Architecture – Supports modern Ethernet-based automation systems.
• Flexible Module Configuration – Allows mixed installation of Ethernet and X-bus modules.
• High Reliability – MTBF of 1,500,000 hours ensures dependable long-term operation.
• Modicon X80 Compatibility – Supports both M340 and M580 automation platforms.
• Scalable System Design – Facilitates future system expansion.
• Integrated Expansion Capability – Includes XBE connector for rack extension.
• Industrial-Grade Construction – Designed for demanding process control environments.
• Reduced Maintenance Costs – Common platform architecture simplifies inventory management.
• Standards Compliance – Meets major industrial automation and safety standards.
