Product Introduction

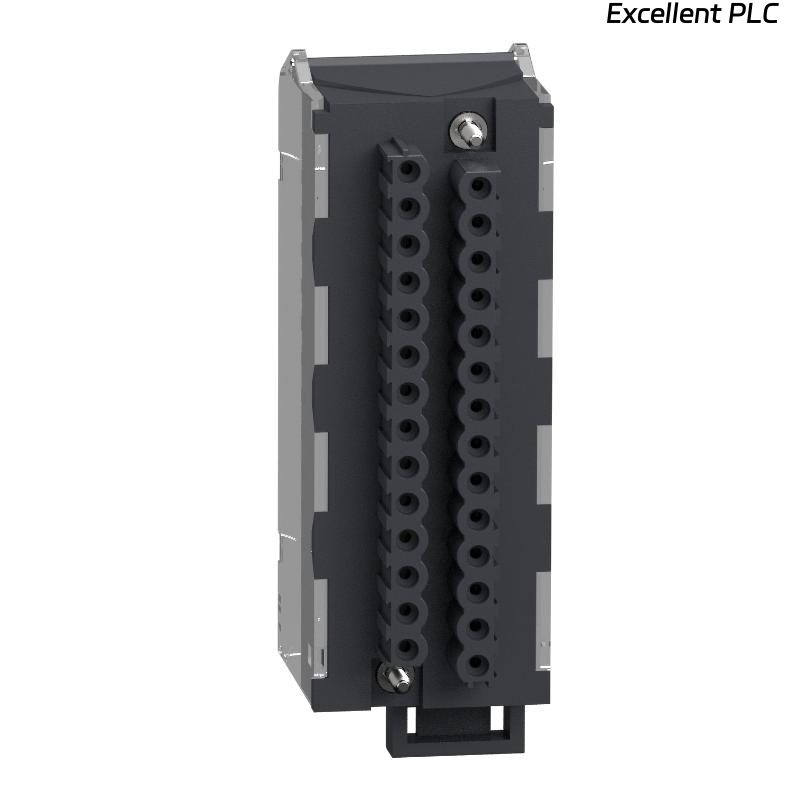

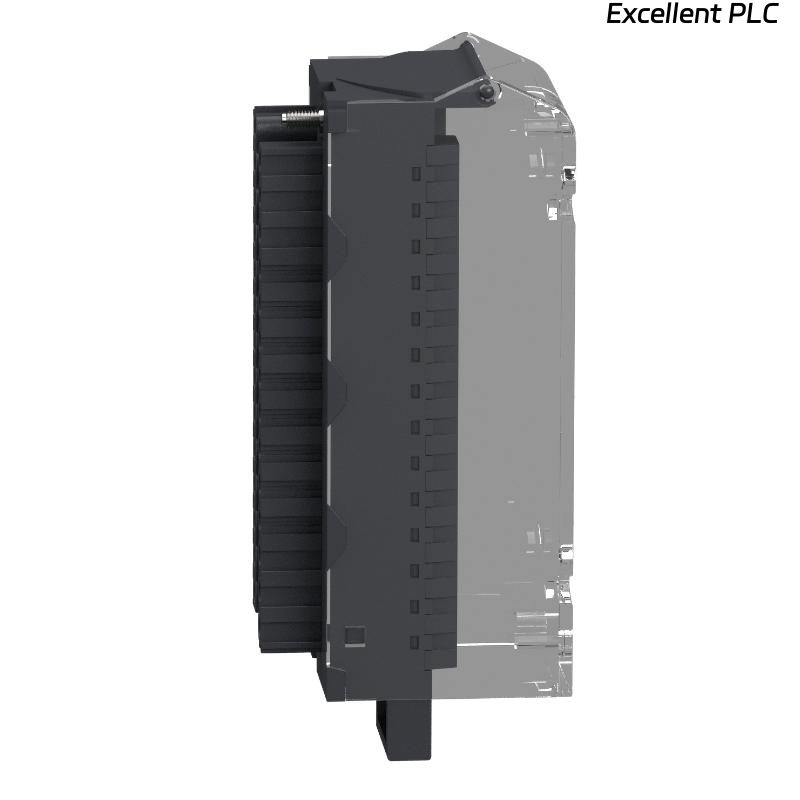

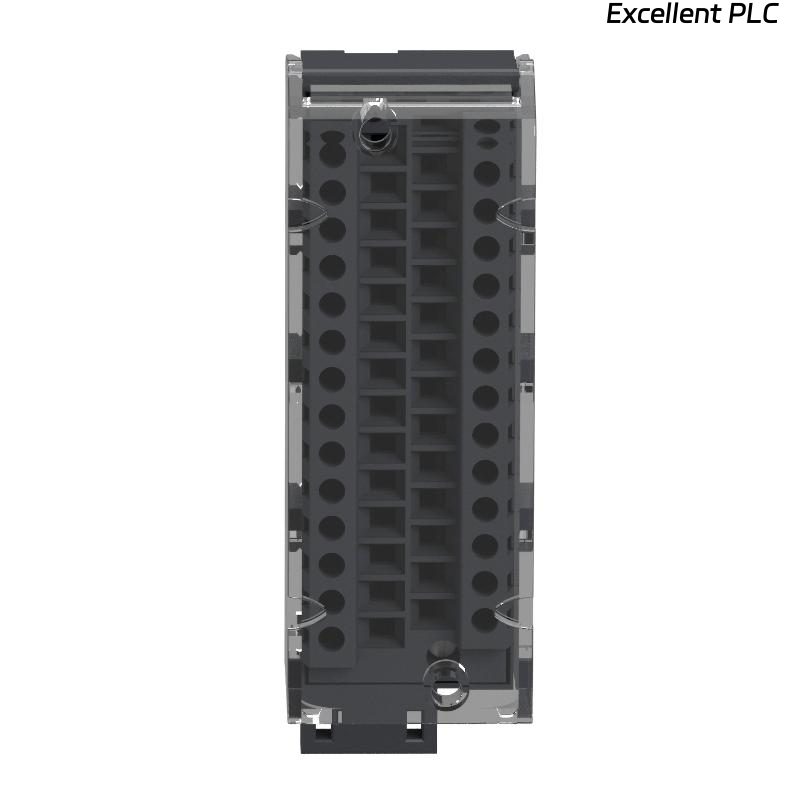

The Schneider BMXFTB2800 28-Pin Removable Caged Terminal Block is an accessory module designed for the Modicon X80 platform, used with Modicon M340 and Modicon M580 Programmable Automation Controllers (PAC). It provides a reliable and modular wiring interface between field devices and I/O modules, enabling easy installation, maintenance, and replacement in industrial automation systems.
This terminal block features 28 removable cage clamp terminals, supporting conductor cross-sections from 0.34 mm² to 1 mm². Its removable design allows quick module servicing without disturbing field wiring, significantly reducing downtime in industrial environments. Built for durability and ease of use, it is well suited for medium to large-scale process automation applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMXFTB2800 |
| Product Type | Removable Caged Terminal Block |
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Number of Terminals | 28 Pins |
| Terminal Type | Cage Clamp (Removable) |
| Conductor Cross Section | 0.34 mm² to 1 mm² |
| Application | I/O Module Field Wiring |
| Compatibility | Modicon M340 / Modicon M580 X80 Modules |
| Installation Type | Plug-in / Removable |
| Protection Rating | IP20 (system level) |
| Dimensions | 91.4 × 41.8 × 32 mm |
| Weight | 0.111 kg |
Applications
• Industrial Control Panels – Provides structured wiring for I/O modules.
• Process Automation Systems – Connects field devices to PLC I/O modules.
• Water & Wastewater Plants – Supports sensor and actuator wiring.
• Power Generation Systems – Enables reliable field signal connections.
• Oil & Gas Facilities – Used in distributed control and monitoring systems.
• Manufacturing Plants – Simplifies machine-level wiring and maintenance.
• Mining & Metals Industry – Supports harsh environment wiring systems.
• Infrastructure Automation – Enables modular and scalable control systems.
• Remote I/O Cabinets – Facilitates fast module replacement and servicing.
• Large-Scale Automation Projects – Standardizes field wiring architecture.
