Product Introduction

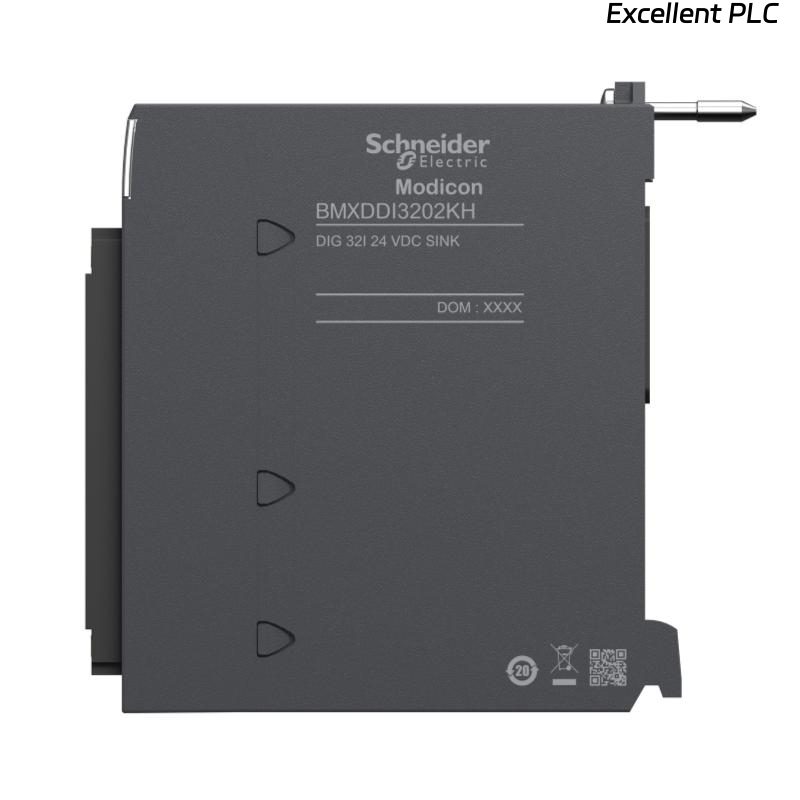

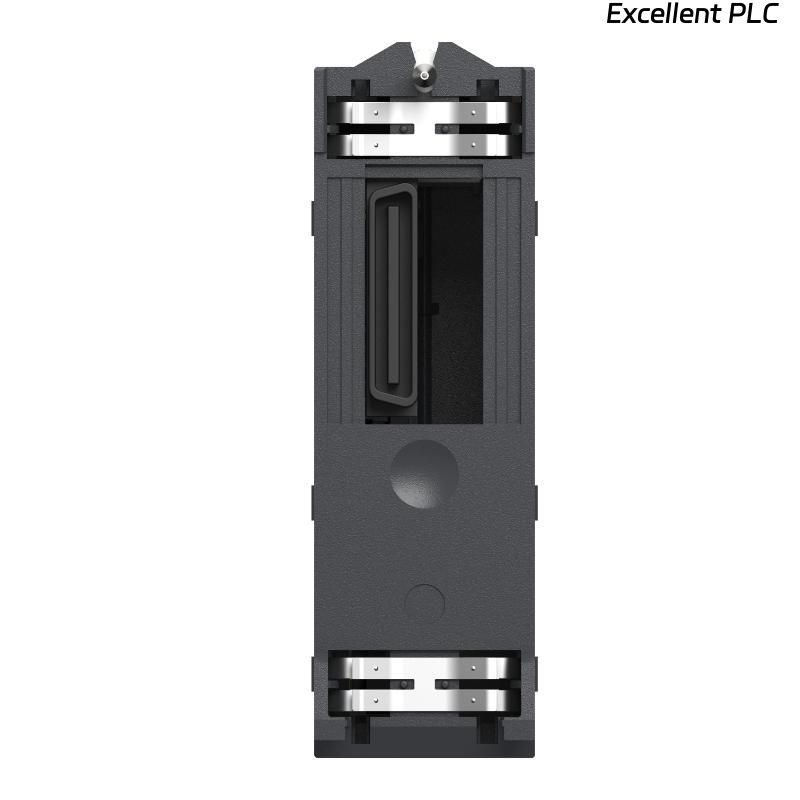

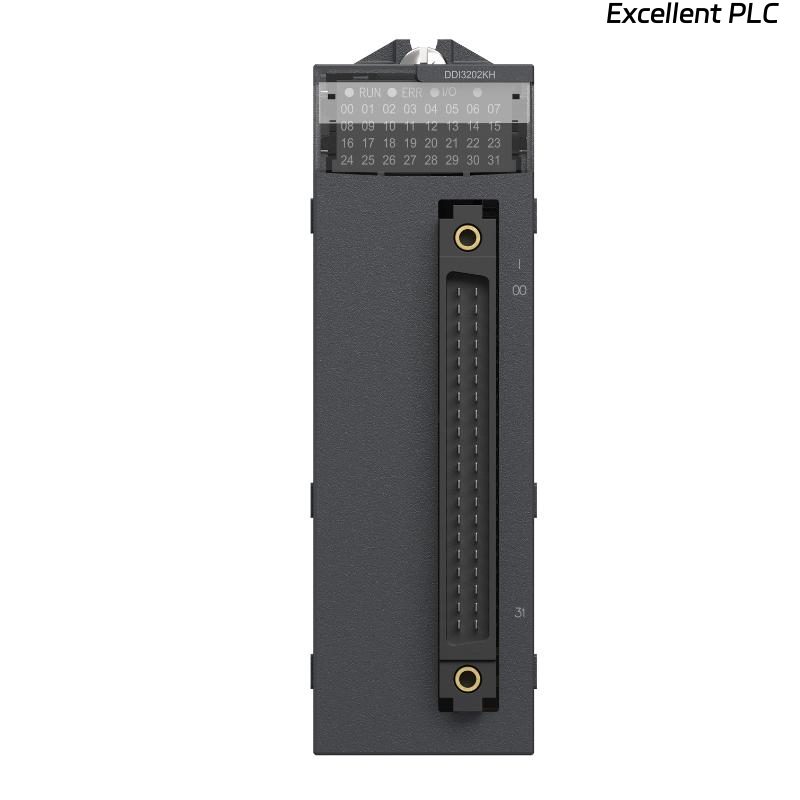

The Schneider BMXDDI3202KH Discrete Input Module is a ruggedized digital input module from the Modicon X80 range, designed for use with Modicon M340 and Modicon M580 automation platforms. It provides reliable acquisition of digital field signals from switches, sensors, pushbuttons, and other 24V DC devices, enabling accurate monitoring and control of industrial processes.
Featuring 32 discrete input channels with positive 24V DC logic, the BMXDDI3202KH is engineered for harsh industrial environments. Its extended operating temperature range from -25°C to +70°C allows deployment in demanding applications where standard modules may not be suitable. The module is designed to support a unified Modicon X80 architecture, helping reduce spare parts inventory, maintenance requirements, and training costs.
The BMXDDI3202KH is widely used in smart infrastructure, water and wastewater facilities, consumer packaged goods manufacturing, mining, metals processing, data centers, and power generation applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMXDDI3202KH |
| Product Type | Discrete Input Module |
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Number of Inputs | 32 Input Channels |
| Input Voltage | 24V DC Positive |
| Signal Type | Discrete/Digital Input |
| Operating Temperature Range | -25°C to +70°C |
| MTBF | 904,985 Hours |
| Protection Rating | IP20 |
| Standards Compliance | EN 61000-6-5, EN 61850-3, EN 61131-2 Type 1 |
| Certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Dimensions | 134.6 × 32 × 86 mm |
| Weight | 0.112 kg |
Applications
• Water & Wastewater Treatment Plants – Monitors field sensors, switches, and process equipment.
• Power Generation Facilities – Acquires digital status signals from critical plant devices.
• Smart Infrastructure Projects – Supports building and utility automation systems.
• Mining Operations – Provides reliable input monitoring in harsh environments.
• Metals & Minerals Processing – Interfaces with field instruments and safety devices.
• Consumer Packaged Goods Manufacturing – Monitors production equipment and machine status.
• Data Centers – Supports facility monitoring and control systems.
• Industrial Automation Systems – Integrates digital field signals into PLC architectures.
• Process Control Applications – Enables real-time monitoring of plant operations.
• Remote I/O Systems – Expands digital input capacity within distributed architectures.
Advantages
• 32-Channel Input Capacity – Supports high-density digital signal acquisition.
• Ruggedized Design – Suitable for harsh industrial environments.
• Extended Temperature Range – Operates reliably from -25°C to +70°C.
• 24V DC Input Compatibility – Supports standard industrial field devices.
• Modicon X80 Architecture – Compatible with both M340 and M580 platforms.
• High Reliability – MTBF of 904,985 hours supports long-term operation.
• Reduced Maintenance Costs – Common X80 platform simplifies inventory management.
• Global Certifications – Meets international industrial and marine standards.
• IP20 Protection Rating – Designed for installation in industrial control cabinets.
• Easy System Integration – Seamlessly fits into modern automation architectures.
