Product Introduction

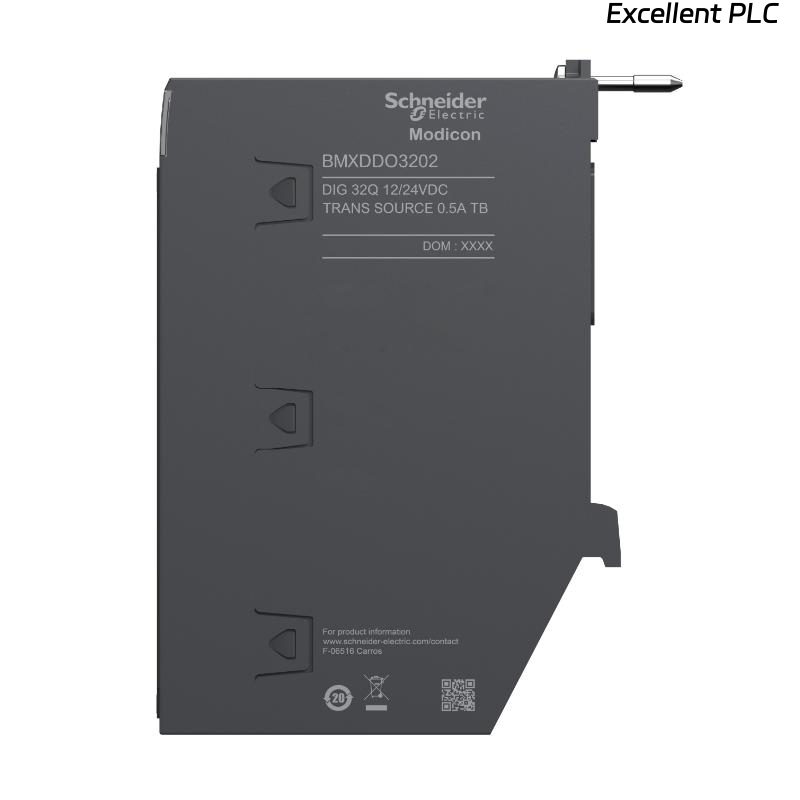

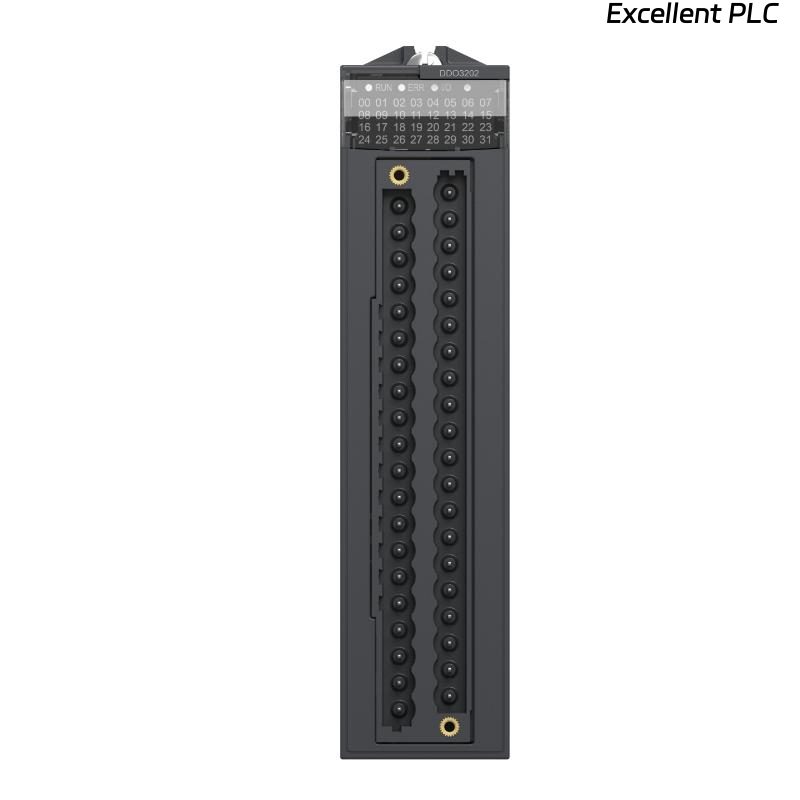

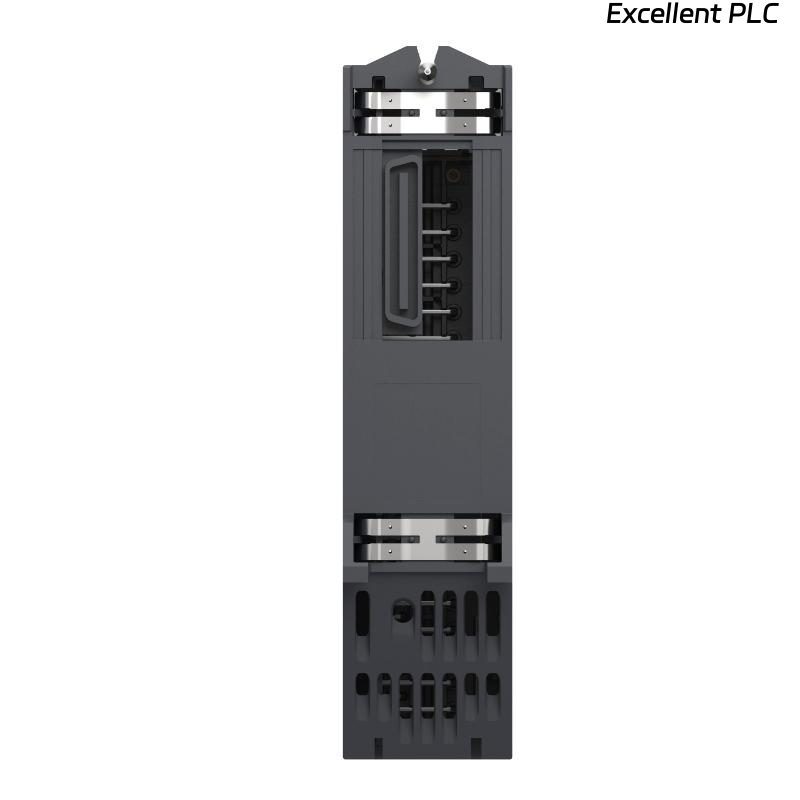

The Schneider BMXDDO3202 Discrete Output Module is a high-density transistor output module from the Modicon X80 range, designed for Modicon M340 and Modicon M580 automation platforms. It is used to control field devices such as relays, solenoids, indicators, and actuators by switching 12/24 V DC output signals.
With 32 isolated transistor outputs, the BMXDDO3202 provides efficient and reliable control of multiple devices within a compact module design. Its rugged construction and “all climates” (TC treatment) rating allow stable operation in industrial environments with varying temperature conditions.
As part of the Modicon X80 ecosystem, this module helps standardize automation architecture, reducing spare parts requirements, simplifying maintenance, and minimizing engineering complexity across industrial installations.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMXDDO3202 |
| Product Type | Discrete Output Module |
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Output Type | Transistor (Isolated Outputs) |
| Number of Outputs | 32 Outputs |
| Output Voltage | 12/24 V DC (Positive) |
| Operating Temperature Range | 0°C to +60°C |
| Protection Treatment | TC (All-climate treatment) |
| Protection Rating | IP20 |
| Compatible Platforms | Modicon M340 / M580 |
| Standards Compliance | EN 61000-6-5, EN 61850-3 |
| Certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.142 kg |
Applications
• Industrial Automation Systems – Controls actuators, relays, and output devices.
• Manufacturing Plants – Drives machine control elements and signaling devices.
• Water & Wastewater Facilities – Operates pumps, valves, and control equipment.
• Power Generation Plants – Manages output signals for auxiliary systems.
• Oil & Gas Operations – Controls field devices and safety-related equipment.
• Consumer Packaged Goods Industry – Supports high-speed production control.
• Mining & Metals Processing – Operates heavy-duty automation equipment.
• Data Centers – Supports infrastructure control systems.
• Smart Infrastructure Systems – Integrates building automation outputs.
• Distributed Control Systems – Enables reliable output signal distribution.
Advantages
• 32 High-Density Outputs – Enables control of many devices in a single module.
• Transistor Output Technology – Provides fast and reliable switching performance.
• Compact Design – Reduces cabinet space requirements.
• Modicon X80 Compatibility – Seamless integration with M340 and M580 systems.
• All-Climate (TC) Treatment – Enhances durability in varying environmental conditions.
• Reliable Signal Control – Ensures stable operation of field devices.
• Reduced System Complexity – Simplifies wiring and system design.
• Industrial-Grade Reliability – Designed for continuous operation in harsh environments.
• Global Certifications – Meets major international industrial standards.
• Easy Maintenance – Standardized platform reduces spare part diversity.
