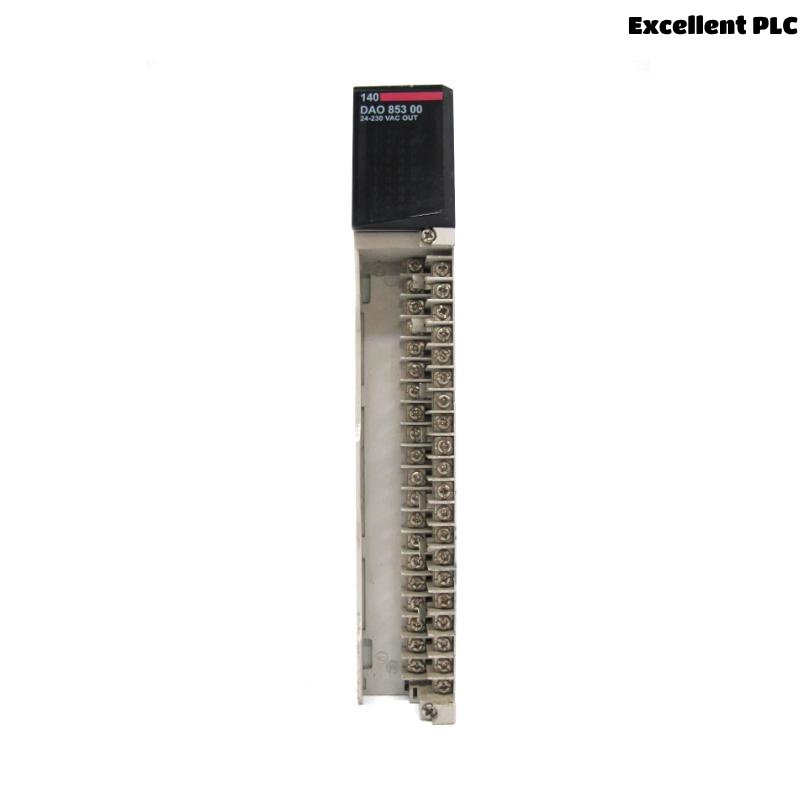

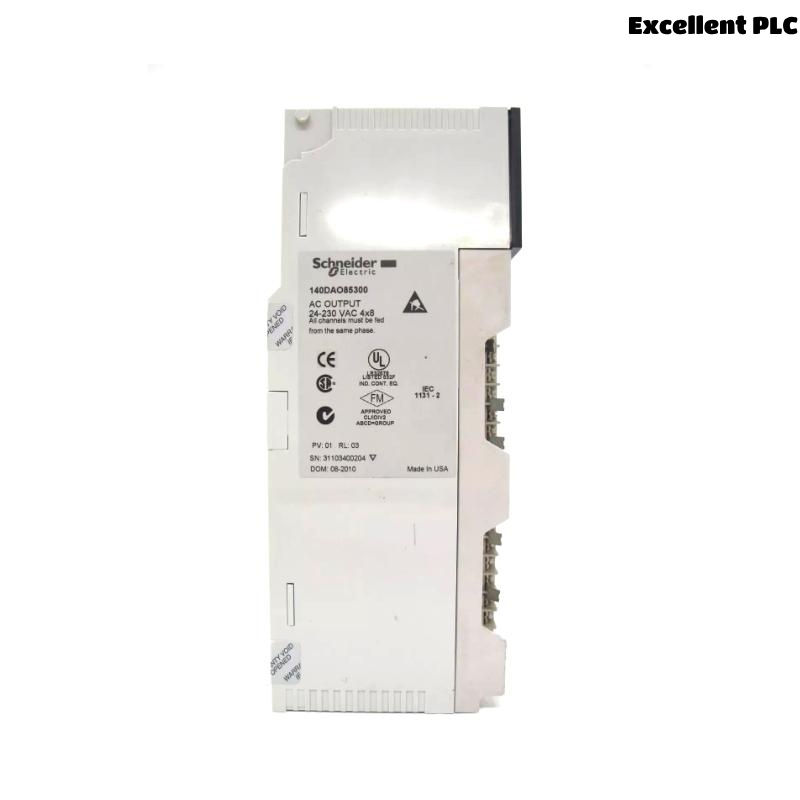

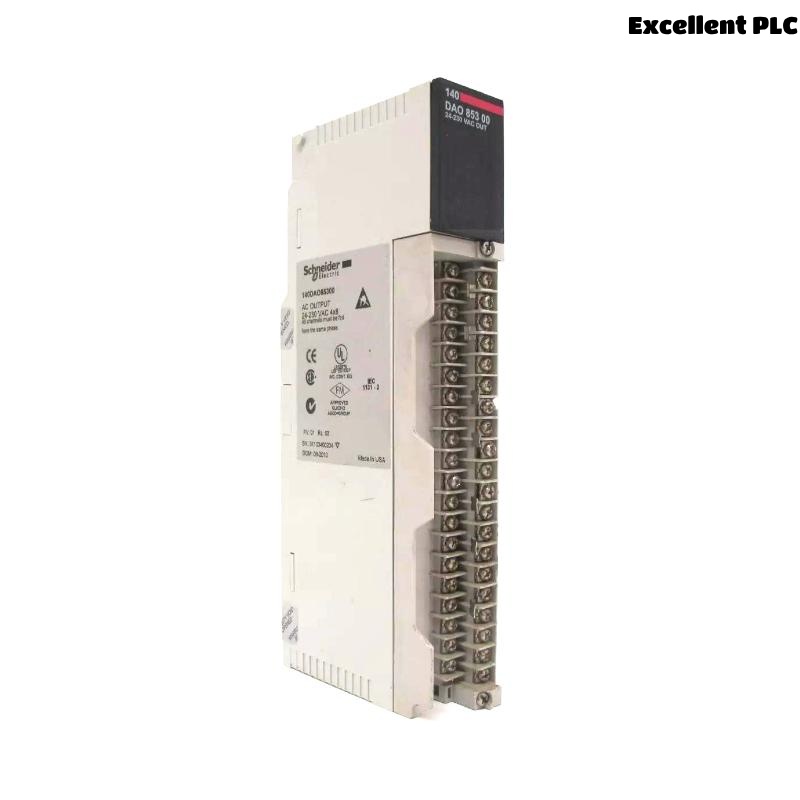

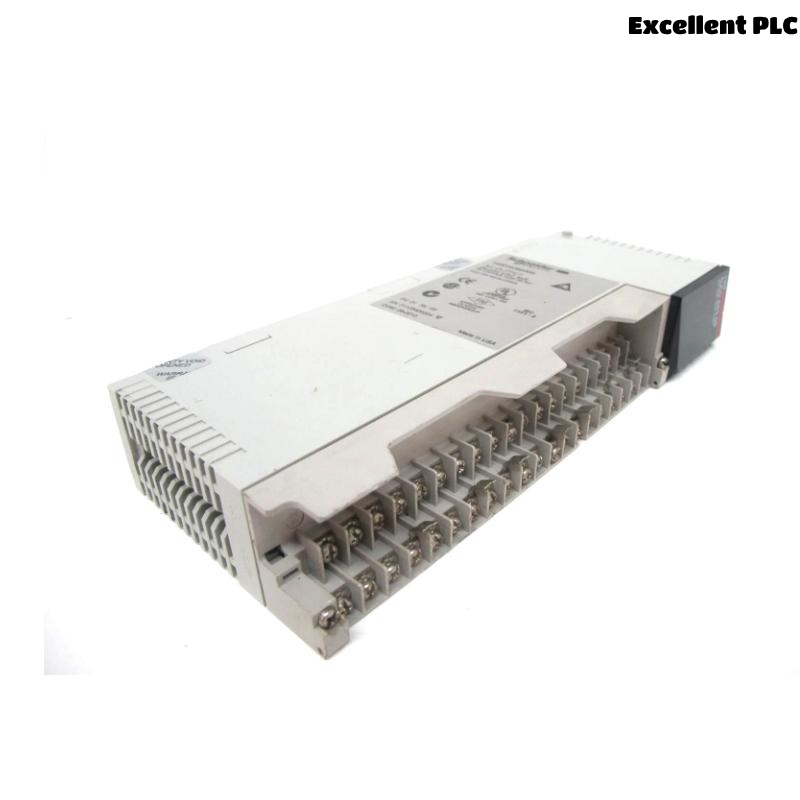

Schneider 140DAO85300C AC Discrete Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Schneider 140DAO85300C is a reliable AC discrete output module designed for the Modicon Quantum automation platform. It offers 32 output channels for controlling discrete AC loads, making it suitable for high-density output applications in industrial automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 140DAO85300C |
| Type | AC Discrete Output Module |
| Number of Outputs | 32 |
| Output Voltage | 115/230 VAC |
| Output Type | Discrete, Sink |
| Output Current | 0.25 A per channel |
| Isolation | 1780 Vrms between channels and bus |
| Response Time | OFF → ON: ≤ 1 ms / ON → OFF: ≤ 1 ms |
| Diagnostics | Fault detection and status LEDs |
| Mounting | Rack-mounted in Quantum backplane |
| Operating Temperature | 0 to 60 °C |
| Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Applications
-
Factory automation systems
-
Process control
-
Discrete manufacturing
-
Building automation
-
Energy management systems
-
Material handling and conveyors
Product Advantages
-
High channel density (32 channels)
-
Robust isolation for industrial environments
-
LED indicators for real-time diagnostics
-
Compatible with Modicon Quantum systems
-
Fast response time for reliable control
-
Space-efficient module design
Frequently Asked Questions (FAQ)
Q1: What is the output voltage range of 140DAO85300C?
A1: It supports 115/230 VAC output voltage.
Q2: How many discrete outputs does the module provide?
A2: It provides 32 AC discrete output channels.
Q3: Is the module hot-swappable?
A3: Yes, it supports hot-swapping with appropriate safety measures.
Q4: What is the maximum current per output channel?
A4: Each output can handle up to 0.25 A.
Q5: Can it be used in harsh industrial environments?
A5: Yes, it features 1780 Vrms isolation for robust performance.
Q6: Does the module support fault diagnostics?
A6: Yes, LED indicators provide diagnostics and channel status.
Q7: What type of outputs does this module use—sink or source?
A7: It uses sink-type AC outputs.
Q8: What are the module’s physical dimensions?
A8: 103.9 mm × 40.3 mm × 250 mm.
Q9: Is it compatible with other Modicon Quantum modules?
A9: Yes, it is designed for seamless integration.
Q10: What is the typical use case for this module?
A10: It’s ideal for controlling AC loads in industrial automation.
