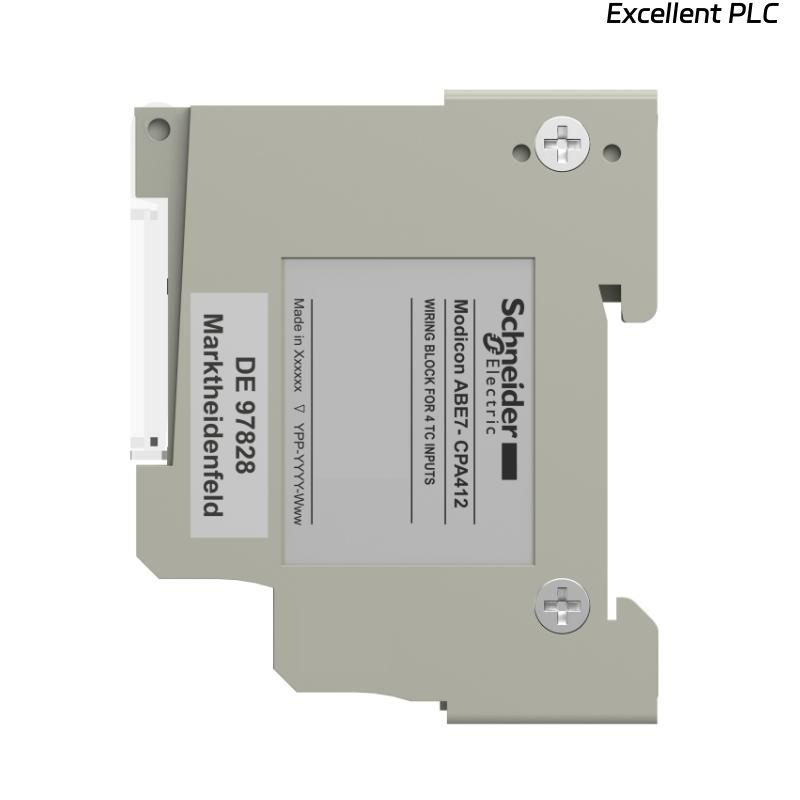

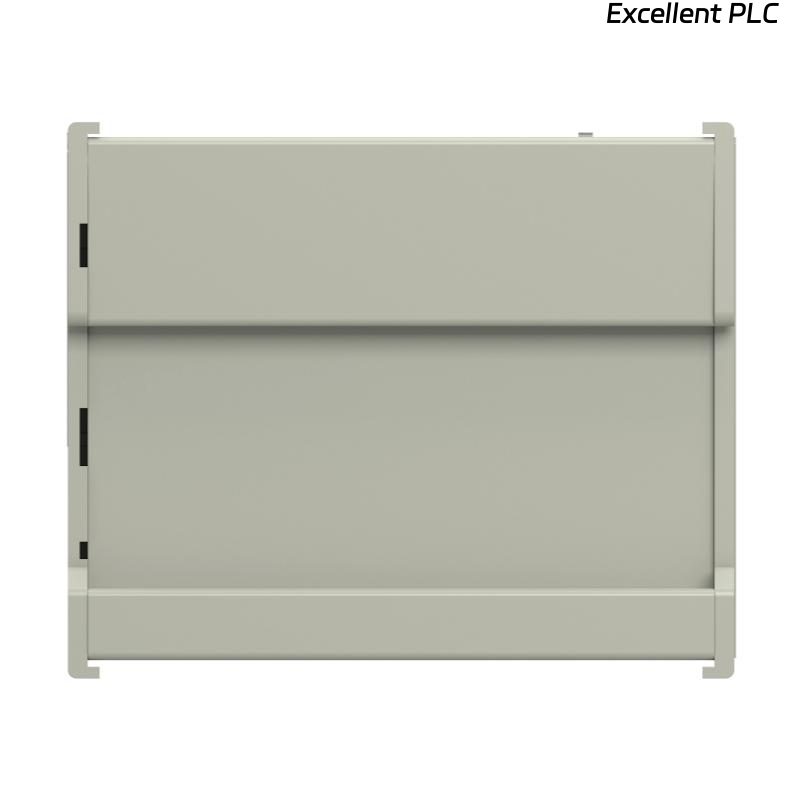

The Schneider ABE7CPA412 Connection Sub-base is part of the Modicon ABE7 Telefast pre-wired system, designed to simplify wiring and signal distribution in industrial automation applications. It serves as an interface between thermocouple field devices and PLC analog input modules, significantly reducing installation time and wiring complexity.
The ABE7CPA412 is specifically designed for the distribution of four thermocouple inputs and provides cold-junction compensation to ensure accurate temperature measurements. It also distributes isolated sensor power supplies through an integrated converter, improving signal reliability and measurement stability.

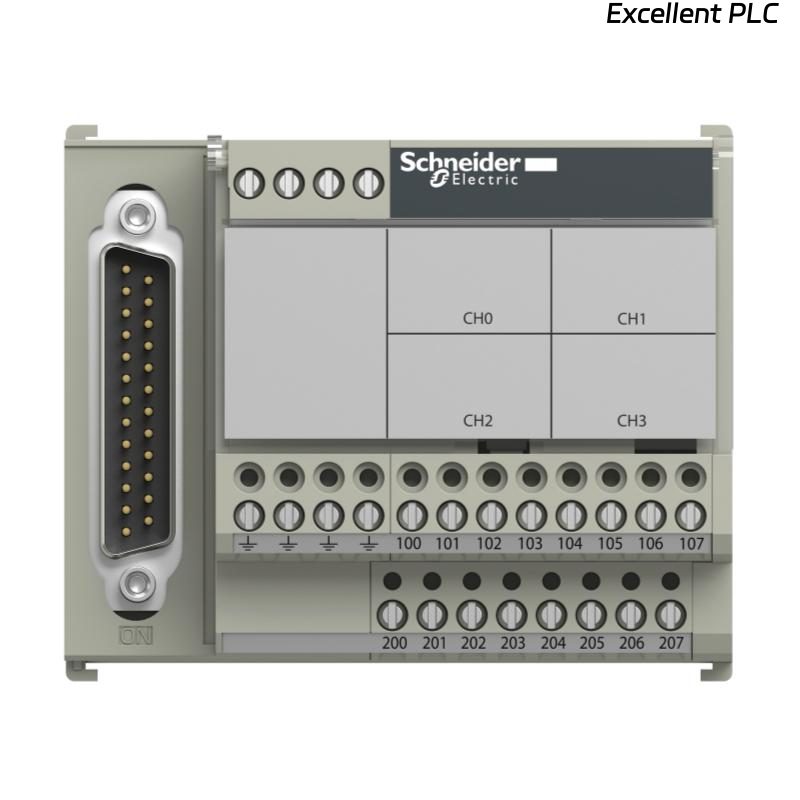

Equipped with screw-type terminals and a 25-way SUB-D connector, the sub-base provides a convenient connection interface for Modicon M340 analog input modules such as the BMXART0414 and BMXART0814. Its compact design, DIN rail compatibility, and industrial certifications make it ideal for demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | ABE7CPA412 |
| Product Type | Connection Sub-base |
| Series | Modicon ABE7 Telefast |
| Manufacturer | Schneider Electric |
| Supported Signals | Thermocouple Inputs |
| Number of Thermocouple Channels | 4 Channels |
| Cold-Junction Compensation | Integrated |
| Sensor Power Supply Distribution | Isolated Supply via Converter |
| Field Connection Type | Screw-Type Terminals |
| PLC Connection | 25-Way SUB-D Connector |
| Protection Rating | IP20 |
| Mounting Method | 35 mm DIN Rail or Panel Mount |
| Compatible Modules | BMXART0414, BMXART0814 |
| Certifications | LROS, DNV, UL, GL, BV, CSA |
| Dimensions | 83 × 67 × 70 mm |
| Weight | 0.18 kg |
Applications
• Temperature Monitoring Systems – Interfaces thermocouple sensors with PLC analog input modules.
• Process Automation – Supports accurate temperature measurement in industrial processes.
• Chemical Processing Plants – Connects thermocouple sensors used in process control.
• Power Generation Facilities – Monitors temperature-critical equipment and systems.
• Oil & Gas Installations – Provides reliable thermocouple signal distribution.
• Manufacturing Plants – Supports temperature monitoring and quality control applications.
• Food & Beverage Processing – Facilitates precise thermal process management.
• Water & Wastewater Treatment Plants – Integrates temperature sensors into automation systems.
• Industrial Control Panels – Simplifies wiring and maintenance of temperature measurement circuits.
• Distributed Automation Systems – Provides organized signal interfacing for PLC systems.
Advantages
• Supports Four Thermocouple Channels – Enables efficient connection of multiple temperature sensors.
• Integrated Cold-Junction Compensation – Improves temperature measurement accuracy.
• Isolated Sensor Power Distribution – Enhances signal stability and reliability.
• Telefast Pre-Wired Architecture – Reduces installation and commissioning time.
• 25-Way SUB-D PLC Interface – Provides quick and reliable module connections.
• Screw-Terminal Wiring – Simplifies field device installation and maintenance.
• DIN Rail or Panel Mounting – Offers flexible installation options.
• Compact Design – Saves valuable control cabinet space.
• Wide Certification Coverage – Approved for use in various industrial sectors worldwide.
• Seamless Modicon Integration – Optimized for BMXART0414 and BMXART0814 analog input modules.
