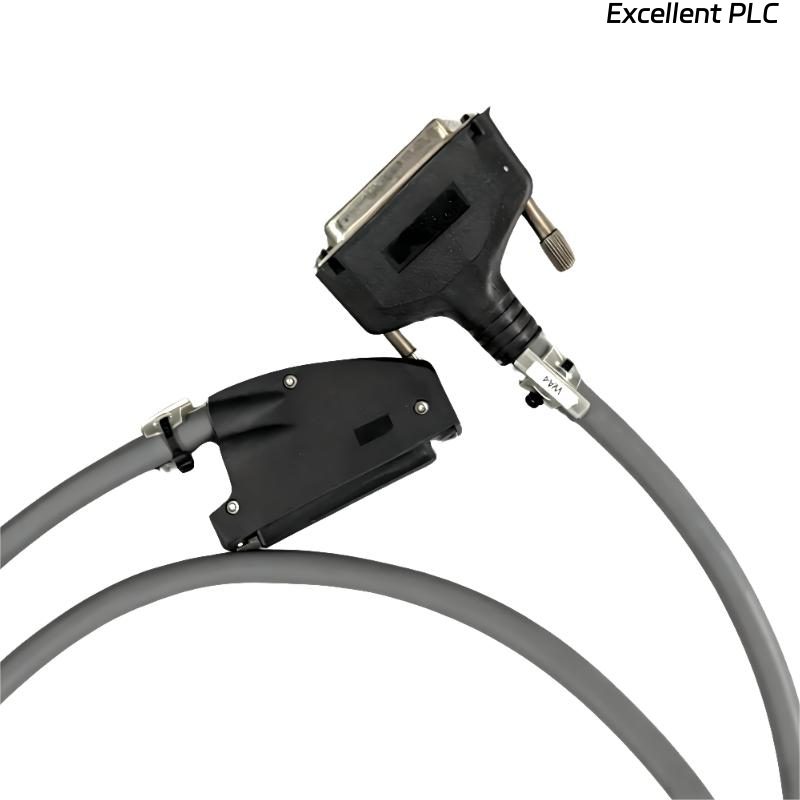

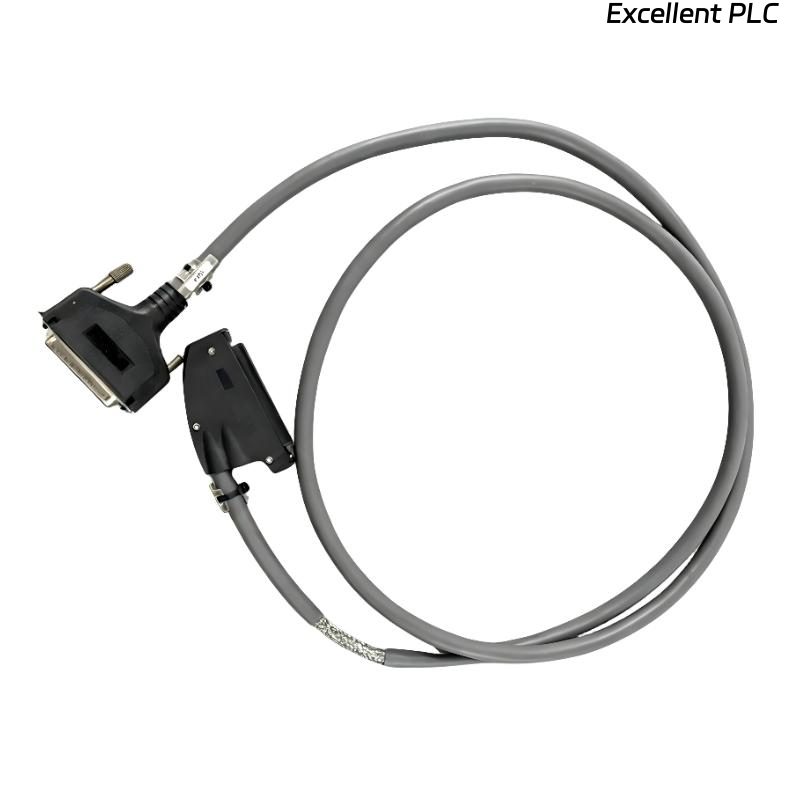

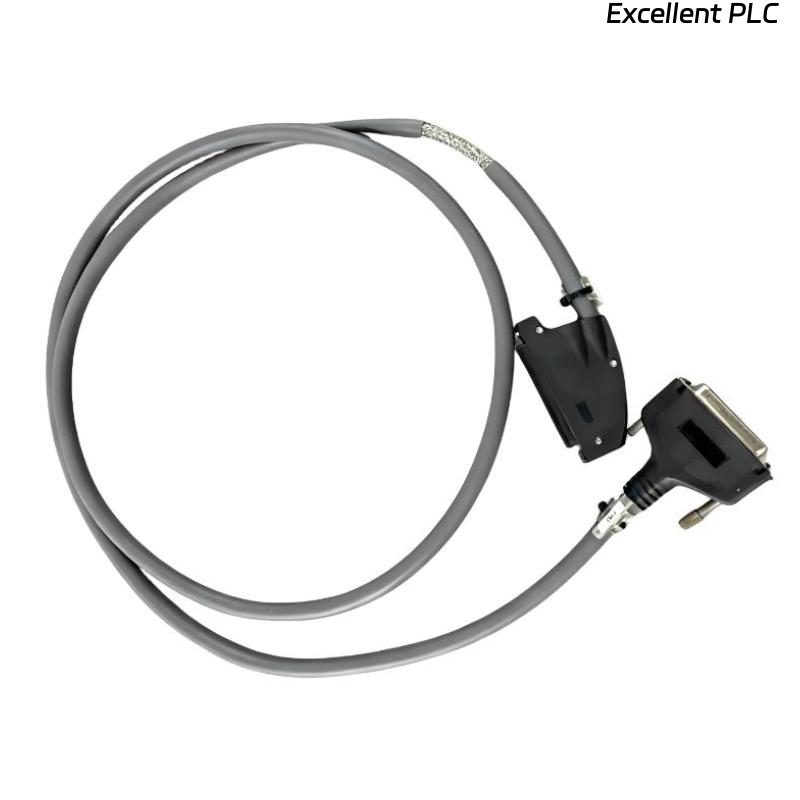

The Schneider BMXFCA152 Cord Set is a high-quality I/O connection cable designed for the Modicon X80 platform used with Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC). It provides a reliable interface between analog input modules and connection sub-bases, ensuring secure signal transmission in industrial automation systems.
With a cable length of 1.5 meters, the BMXFCA152 offers flexible installation while maintaining organized cabinet wiring. The cord set features a 40-way connector on the module side and a 25-way SUB-D connector on the sub-base side, enabling quick and dependable connections between field wiring interfaces and I/O modules.
Designed for medium to large process applications, this cord set helps reduce installation time, simplify maintenance, and improve overall system reliability within Modicon X80 automation architectures.
Product Specifications
| Parameter | Description |
|---|---|
| Model | BMXFCA152 |
| Product Type | Cord Set |
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Cable Length | 1.5 meters |
| Module Side Connector | 40-Way Connector |
| Sub-Base Side Connector | 25-Way SUB-D Connector |
| Compatible Module | BMXART0414 Analog Input Module |
| Compatible Module | BMXART0814 Analog Input Module |
| Compatible Sub-Base | ABE7CPA412 Connection Sub-Base |
| Application | I/O Module Connection |
| Construction | Industrial-Grade Cable Assembly |
| Weight | 0.33 kg |
Applications
• Modicon M580 PAC Systems – Connects analog input modules to field wiring interfaces.
• Modicon M340 PAC Systems – Provides reliable signal routing within control systems.
• Process Automation Systems – Supports analog signal transmission between devices.
• Industrial Control Panels – Simplifies cabinet wiring and installation.
• Water & Wastewater Treatment Plants – Connects process measurement signals to controllers.
• Power Generation Facilities – Supports instrumentation and monitoring applications.
• Chemical Processing Plants – Provides secure connections for analog input signals.
• Manufacturing Facilities – Enables reliable process data acquisition.
• Oil & Gas Installations – Supports industrial control and monitoring systems.
• Medium to Large Process Applications – Designed for demanding automation environments.
Advantages
• 1.5-Meter Cable Length – Suitable for compact and medium-sized cabinet layouts.
• 40-Way Module Connector – Provides secure connection to Modicon X80 I/O modules.
• 25-Way SUB-D Connector – Enables dependable connection to compatible sub-bases.
• Industrial-Grade Construction – Designed for long-term reliability.
• Simplified Installation – Reduces wiring complexity and installation time.
• Improved Signal Integrity – Supports reliable analog signal transmission.
• Modicon X80 Compatibility – Integrates seamlessly with M580 and M340 systems.
• Reduced Maintenance Effort – Facilitates easier replacement and servicing.
• Supports Process Reliability – Helps maintain consistent automation performance.
• High-Quality Schneider Design – Built for demanding industrial applications.
