Product Introduction

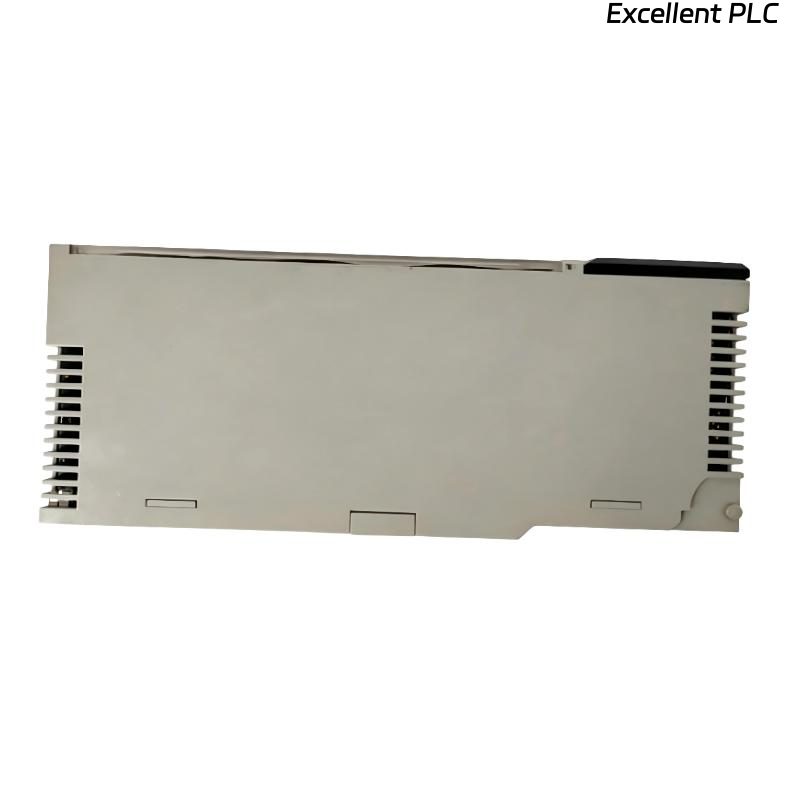

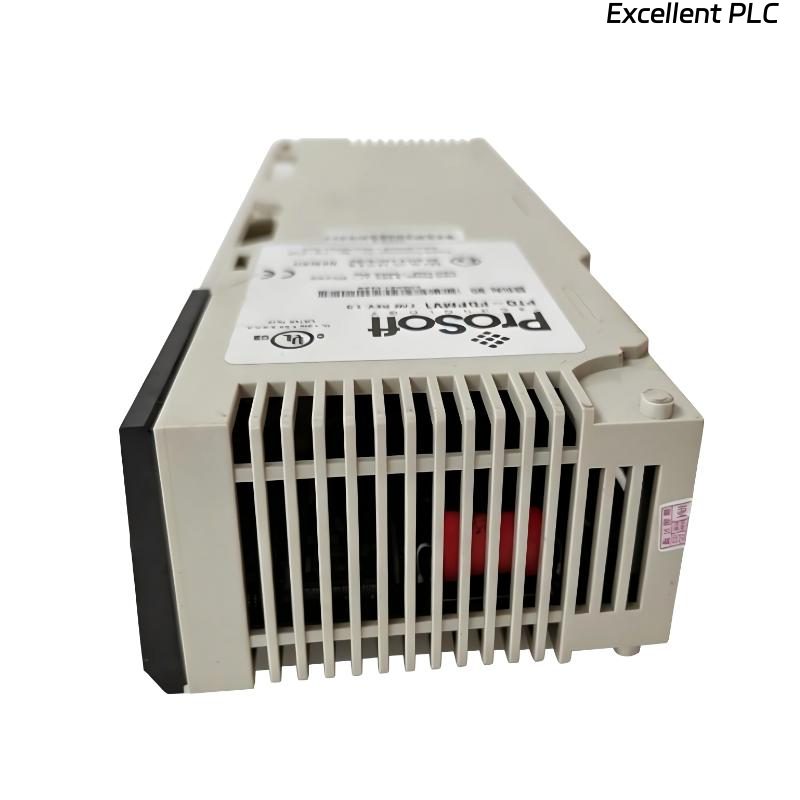

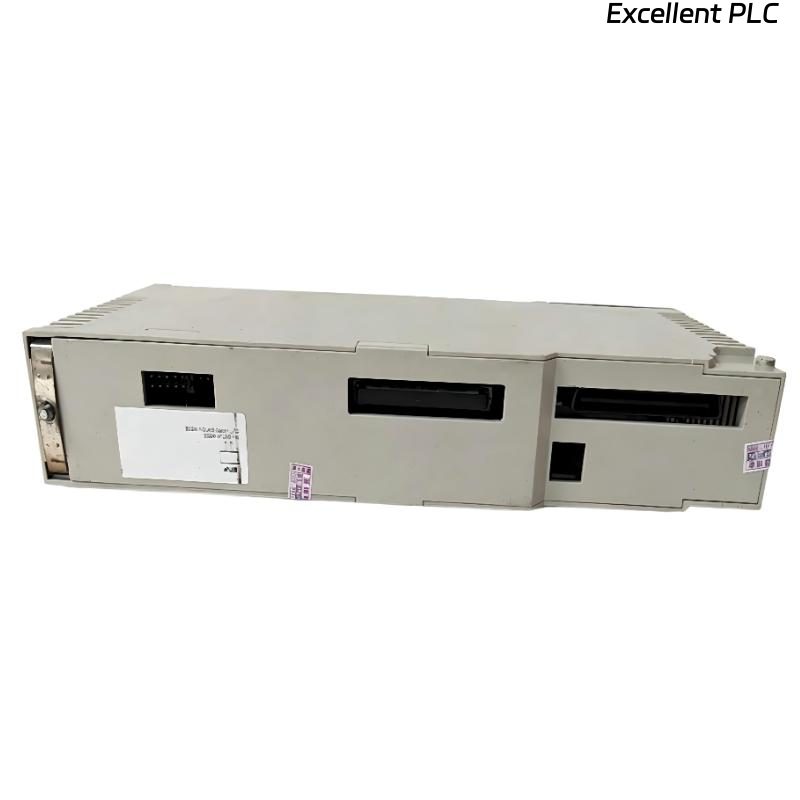

The Schneider PTQ-PDPMV1 PROFIBUS Master DPV1 Communication Module is a high-performance industrial communication interface designed to integrate PROFIBUS DP and DPV1 field devices with Schneider automation systems. The module acts as a PROFIBUS Master, enabling efficient data exchange between controllers and distributed I/O, drives, instrumentation, and intelligent field devices.
Designed for demanding industrial environments, the PTQ-PDPMV1 supports cyclic and acyclic communication services provided by the PROFIBUS DPV1 protocol. This capability allows users to access diagnostic information, parameter data, and process values while maintaining reliable real-time communications.
With its compact design, wide operating temperature range, and industrial-grade construction, the PTQ-PDPMV1 is well suited for manufacturing, process automation, power generation, water treatment, and other industrial control applications requiring dependable PROFIBUS network connectivity.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PTQ-PDPMV1 |
| Product Type | PROFIBUS Master DPV1 Communication Module |
| Manufacturer | Schneider Electric |
| Communication Protocol | PROFIBUS DP / DPV1 |
| Network Role | PROFIBUS Master |
| Backplane Current Load | 1100 mA Maximum @ 5 VDC ±5% |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% Non-Condensing |
| Mounting Type | Backplane Mounted |
| Application | Industrial Communication and Device Integration |
| Dimensions | 250 × 40.34 × 103.85 mm |
| Weight | 0.19 kg |
Applications
• Distributed I/O Systems – Connects PROFIBUS remote I/O stations to control systems.
• Process Automation – Facilitates communication with intelligent field devices.
• Manufacturing Plants – Integrates drives, sensors, and distributed controllers.
• Power Generation Facilities – Supports communication with monitoring and control equipment.
• Water & Wastewater Treatment Plants – Enables reliable field device networking.
• Chemical Processing Plants – Provides communication with process instrumentation.
• Oil & Gas Facilities – Supports critical automation and monitoring systems.
• Material Handling Systems – Connects drives and distributed automation equipment.
• Industrial Networks – Enables centralized management of PROFIBUS devices.
• Machine Automation – Supports high-performance fieldbus communications.
Advantages
• PROFIBUS DPV1 Support – Enables both cyclic and acyclic communication services.
• Master Functionality – Controls communication with multiple PROFIBUS slave devices.
• Reliable Data Exchange – Supports real-time industrial communications.
• Diagnostic Capabilities – Allows access to advanced device diagnostics and parameters.
• Compact Design – Saves valuable control cabinet space.
• Industrial-Grade Construction – Designed for demanding automation environments.
• Wide Environmental Tolerance – Operates reliably from 0°C to 60°C.
• High Device Compatibility – Supports a broad range of PROFIBUS devices.
• Efficient Network Integration – Simplifies distributed automation architectures.
• Improved System Performance – Enhances communication reliability and operational efficiency.
