Product Introduction

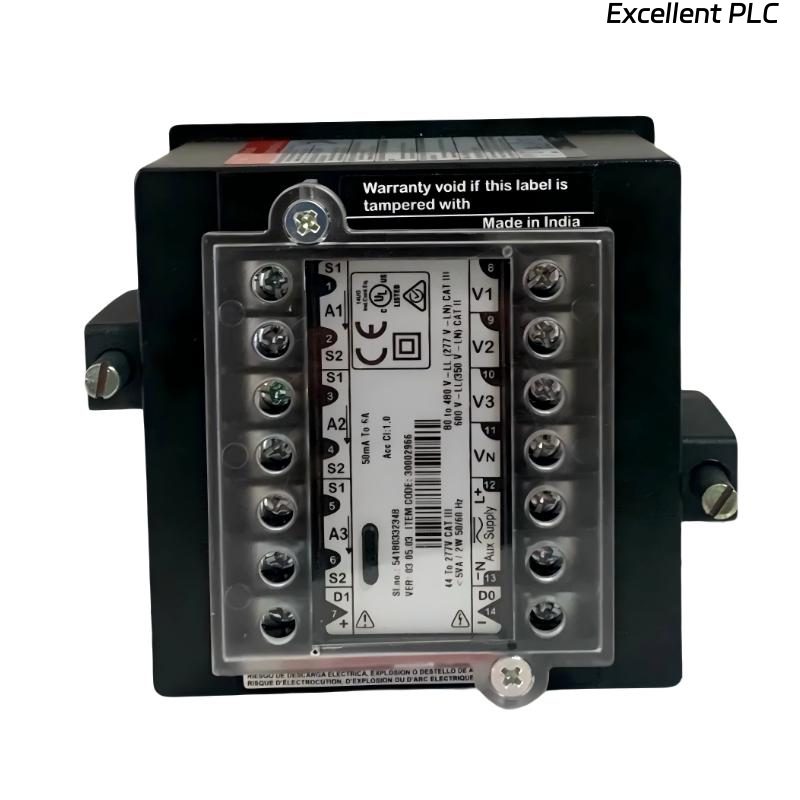

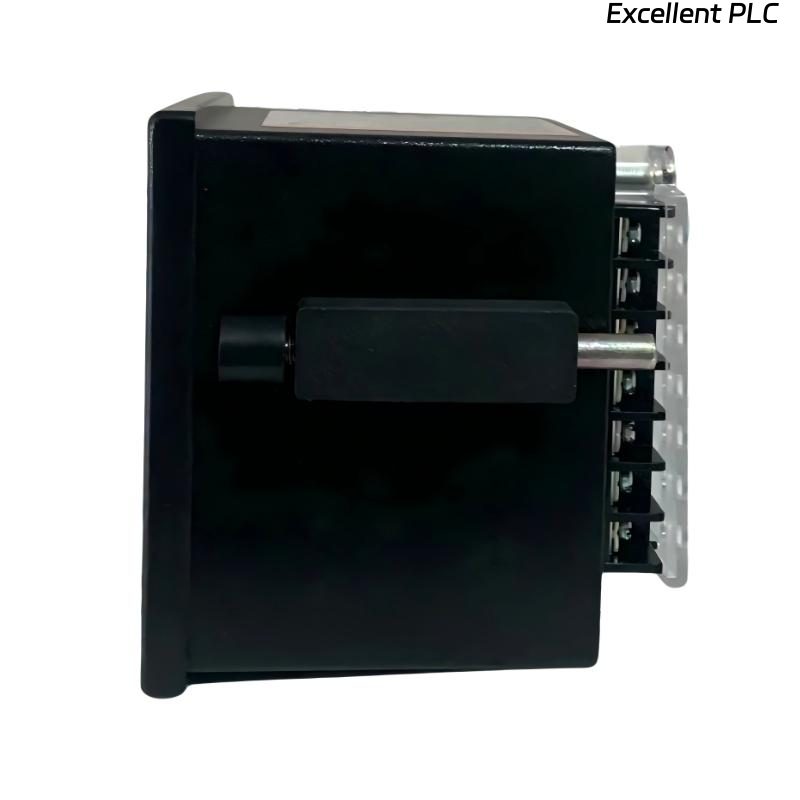

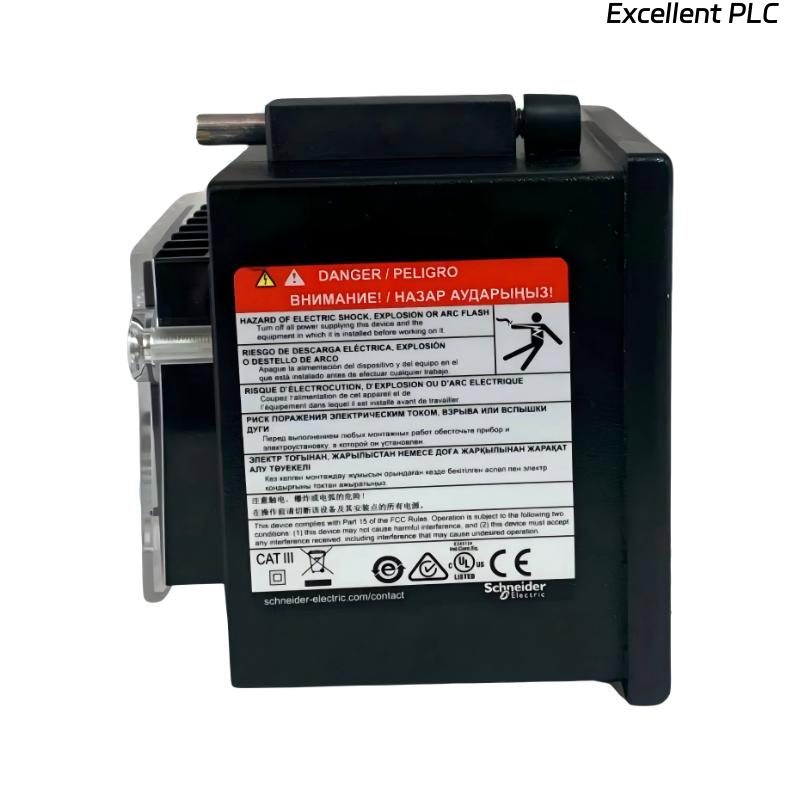

The Schneider METSEDM6000 DM6000 Digital Meter is a multifunction power and energy monitoring device designed for electrical distribution, industrial automation, and facility management applications. It provides essential electrical measurements and basic metering functions without communication capabilities, making it an economical solution for local monitoring and energy management.
The DM6000 features a bright LED display, high-speed sampling at 20 samples per cycle, and support for both 1A and 5A current transformer inputs. It is capable of monitoring voltage, current, frequency, and other key electrical parameters in low- and medium-voltage power systems.
With its compact 96 mm × 96 mm panel-mount design, the METSEDM6000 is suitable for switchboards, motor control centers, power distribution panels, and industrial control systems where reliable electrical measurement is required.
Product Specifications
| Parameter | Description |
|---|---|
| Model | METSEDM6000 |
| Product Type | Digital Power Meter |
| Series | DM6000 |
| Manufacturer | Schneider Electric |
| Display Type | LED Indicator Display |
| Rated Supply Voltage | 44 to 277 V AC, 50/60 Hz |
| DC Supply Voltage | 44 to 277 V DC |
| Network Frequency | 45 to 65 Hz |
| Maximum Power Consumption | 3 VA at 240 V AC |
| Sampling Rate | 20 Samples/Cycle |
| Measurement Current | 1 A, 5 A |
| Analog Input Type | Current 0.05 to 6 A |
| Input Impedance | ≤ 0.1 Ohm |
| Measurement Voltage | 80 to 480 V AC Phase-to-Phase |
| Communication | None |
| Mounting Type | Panel Mount |
| Dimensions | 96 × 80 × 96 mm |
| Weight | 0.4 kg |
Applications
• Power Distribution Panels – Monitors key electrical parameters in distribution systems.
• Industrial Control Panels – Provides local electrical measurement and indication.
• Motor Control Centers (MCCs) – Monitors power consumption and system conditions.
• Manufacturing Facilities – Supports energy management and operational monitoring.
• Commercial Buildings – Tracks electrical performance in building power systems.
• Water & Wastewater Plants – Monitors electrical loads and equipment performance.
• Power Generation Facilities – Provides local power measurement and monitoring.
• Process Industries – Supports electrical system diagnostics and maintenance.
• Infrastructure Projects – Enables reliable energy monitoring and reporting.
• Utility Applications – Measures critical electrical parameters in distribution networks.
Advantages
• Comprehensive Basic Metering – Provides essential electrical measurements without additional complexity.
• Wide Power Supply Range – Supports both AC and DC supply voltages from 44 to 277 V.
• 20 Samples per Cycle – Delivers accurate and responsive measurement performance.
• Supports 1A and 5A CT Inputs – Compatible with common current transformer configurations.
• LED Display – Provides clear and reliable local indication.
• Low Power Consumption – Consumes only 3 VA at 240 V AC.
• Compact Panel-Mount Design – Fits standard electrical panel installations.
• Wide Voltage Measurement Range – Measures 80 to 480 V AC phase-to-phase.
• Industrial Reliability – Designed for continuous operation in demanding environments.
• Cost-Effective Solution – Ideal for applications that do not require communication functions.
