Product Introduction

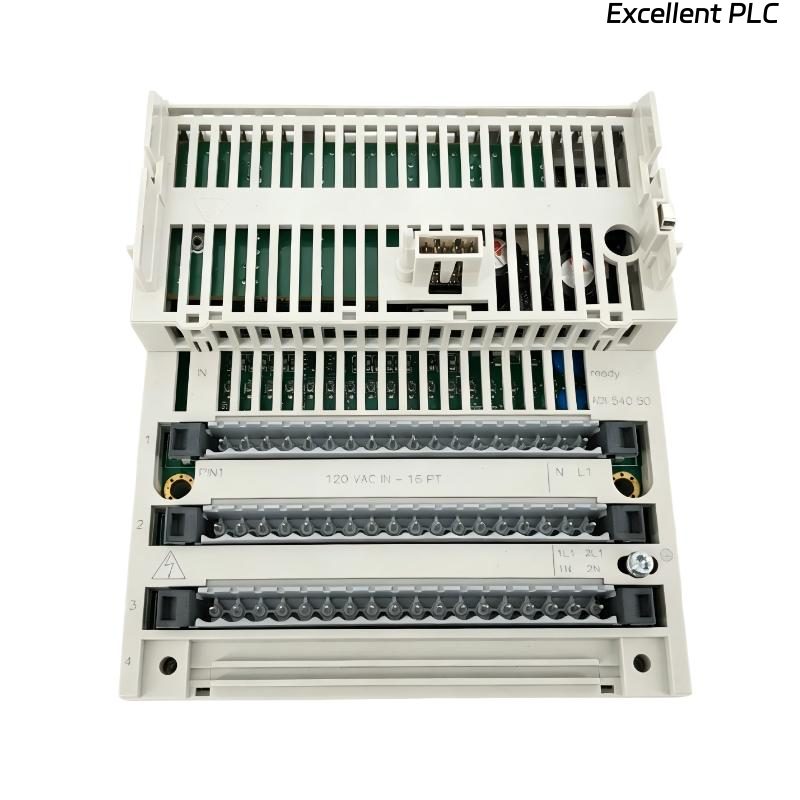

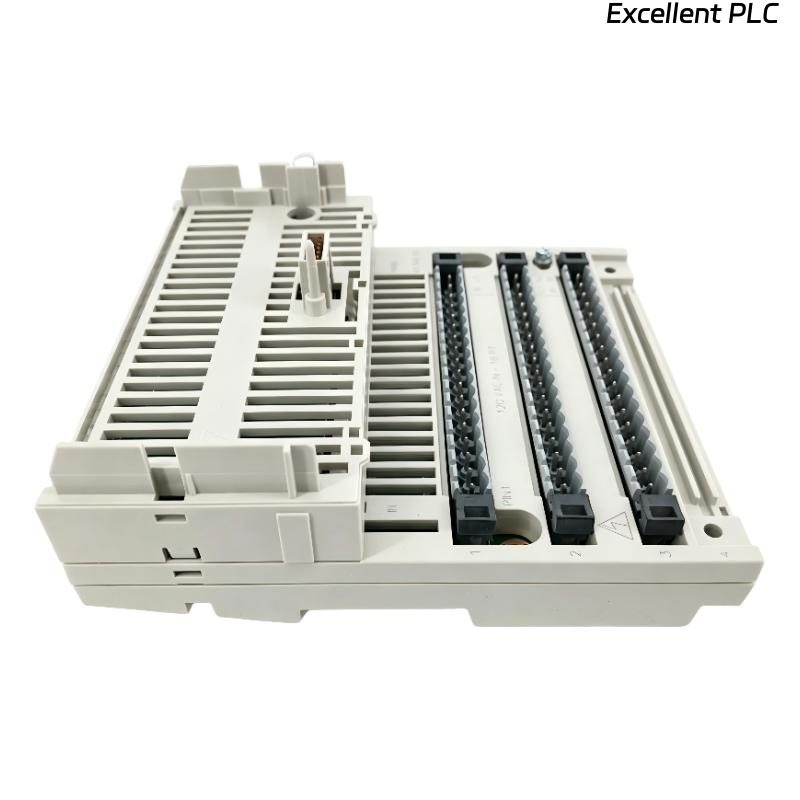

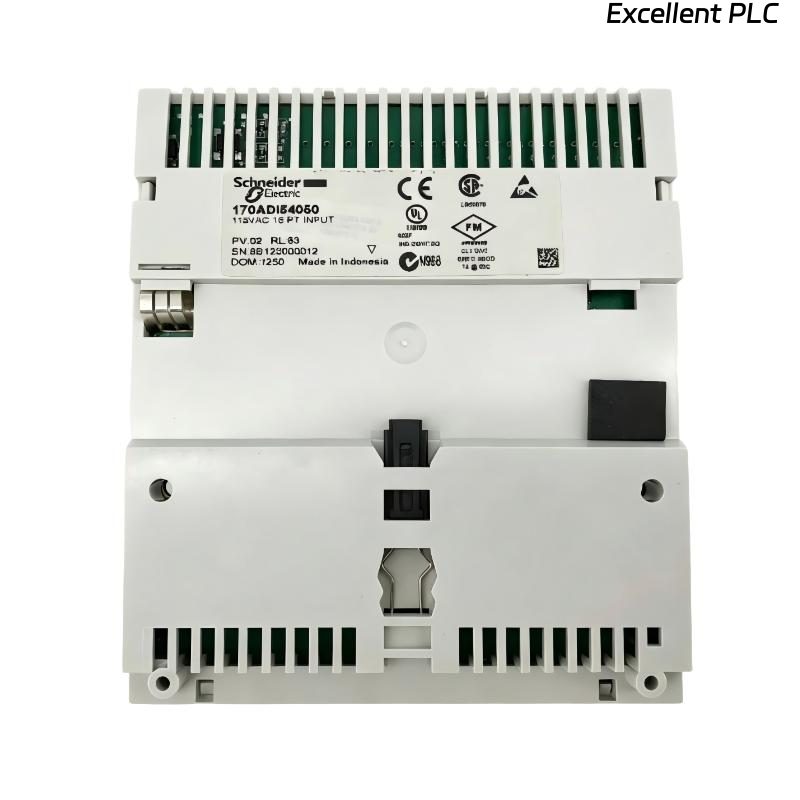

The Schneider 170ADI54050 Discrete Input Module is part of the Modicon Momentum range, a flexible family of controllers and distributed I/O products designed for industrial automation applications. This AC discrete input base module provides reliable monitoring of field devices and switches in distributed control architectures.
The module features 16 discrete inputs arranged in two groups of eight channels and operates with 120V AC input signals. Designed in accordance with IEC 1131-2 Type 2 requirements, it utilizes positive discrete input logic for dependable signal acquisition. Integrated LED indicators provide clear channel status monitoring, simplifying troubleshooting and maintenance.
With robust electrical isolation, industrial certifications, and a compact IP20 design, the 170ADI54050 is suitable for infrastructure, energy, material handling, and machine control applications where reliable distributed I/O performance is required.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 170ADI54050 |
| Product Type | Discrete Input Module |
| Series | Modicon Momentum |
| Manufacturer | Schneider Electric |
| Number of Inputs | 16 Inputs |
| Input Groups | 2 Groups of 8 Inputs |
| Input Logic | Positive Discrete Input Logic |
| Input Voltage | 120V AC |
| Standard Compliance | IEC 1131-2 Type 2 |
| Status Indicators | 16 Channel Status LEDs |
| Isolation Voltage | 1780V AC |
| Protection Rating | IP20 |
| Mounting Type | Wall Mount |
| Certifications | CE, FM Class 1 Division 2, CSA, UL |
| Application Architecture | Distributed I/O and Control Systems |
| Dimensions | 141.5 × 47.5 × 125 mm |
| Weight | 0.284 kg |
