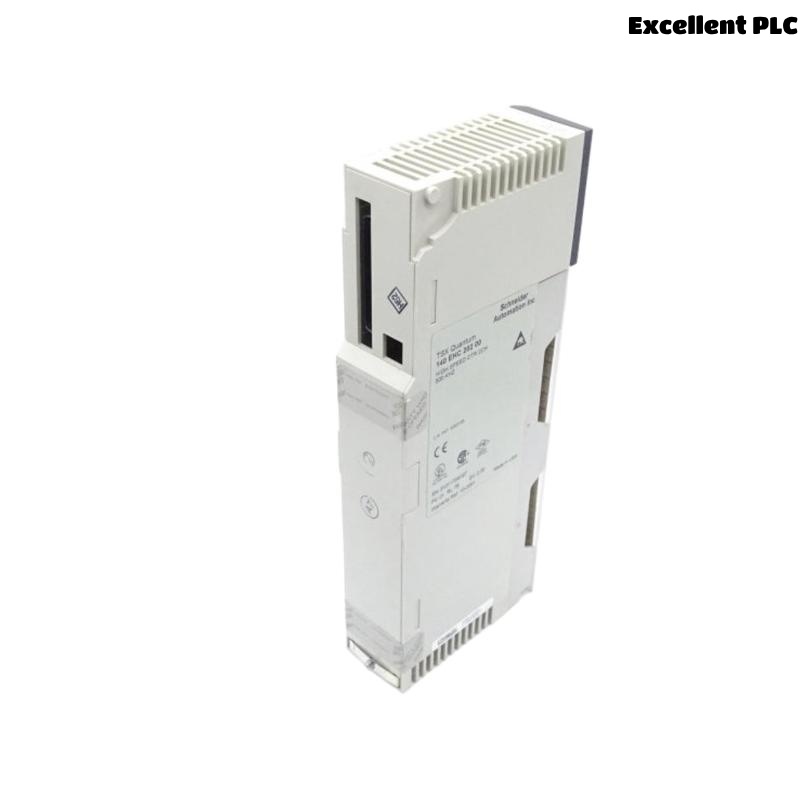

The Schneider Electric 140EHC20200 is a high-performance high-speed counter module from the Modicon Quantum automation series. Designed for precise counting and rapid response applications, this module supports high-speed inputs and is ideal for use in time-critical operations within process automation and manufacturing. The 140EHC20200 interfaces directly with pulse-generating devices such as encoders and proximity sensors, enabling fast and reliable real-time input processing.
This module is engineered to meet the rigorous demands of industrial control environments, supporting high-speed signal capture and deterministic control. With robust mechanical design, advanced diagnostics, and Quantum platform integration, it ensures system reliability and precision even in harsh settings.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 140EHC20200 |
| Product Type | High-Speed Counter Module |
| Input Type | Differential (RS-422 standard) |
| Number of Channels | 2 channels |
| Maximum Input Frequency | 1 MHz per channel |
| Input Signal Voltage Range | 4.5 to 5.5 V DC |
| Isolation Voltage | 500 V RMS (channel-to-backplane) |
| Data Update Time | 1 ms typical |
| Mounting Type | Rack-mounted |
| Communication Bus | Quantum Backplane |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Dimensions | 50 x 170 x 320 mm |
| Weight | 0.444kg |
| Compatibility | Modicon Quantum CPU and backplane |
| Module Status Indicators | Yes (LED for each channel and module) |
| Certifications | CE, UL, CSA |
Product Applications
The Schneider 140EHC20200 is widely used in industrial sectors where high-speed counting is required:
-
Packaging machines (encoder-based counting for precise positioning)
-
Bottling and filling lines
-
Rotary machinery (speed and rotational position tracking)
-
Production line automation
-
Sorting systems
-
CNC and servo motor feedback integration
Its ability to track high-frequency signals in real-time makes it critical for applications demanding high precision and fast feedback loops.
Product Advantages
-
High-Speed Performance: Supports input rates up to 1 MHz, enabling use with modern fast-moving equipment.
-
Dual Channel Design: Allows simultaneous counting from two independent sources.
-
Excellent Integration: Seamless communication with Quantum CPUs via the backplane, minimizing setup complexity.
-
Built-in Diagnostics: LED indicators and status flags simplify troubleshooting and improve maintainability.
-
Industrial-Grade Reliability: Designed to operate in harsh industrial environments with strong vibration and temperature tolerances.
-
Compact Design: Saves space while providing powerful performance, ideal for dense automation panels.
10 Common FAQs
Q1: What kind of sensors are compatible with the 140EHC20200?
A1: The module is compatible with RS-422 differential output sensors such as quadrature encoders and proximity switches.
Q2: Can I use this module with standard Modbus communication?
A2: No, this module communicates over the Quantum backplane and does not use Modbus directly.
Q3: How many channels does the module have?
A3: The 140EHC20200 supports 2 independent high-speed input channels.
Q4: What is the maximum frequency the module can handle?
A4: Each channel can handle up to 1 MHz input frequency.
Q5: Does the module support encoder input for motion applications?
A5: Yes, it is fully suitable for quadrature encoder applications, supporting A/B/Z inputs.
Q6: Is the module hot-swappable in the Quantum system?
A6: Yes, it supports hot-swapping with appropriate Quantum configurations.
Q7: What is the typical data update rate?
A7: The typical update rate is 1 millisecond, making it suitable for high-speed control loops.
Q8: What environmental conditions can it withstand?
A8: Operating from 0 to 60 °C with vibration resistance up to 1g.
Q9: Are diagnostic indicators available on the module?
A9: Yes, LED indicators are provided for module status and input channels.
Q10: Is additional programming software needed?
A10: Configuration is performed via Unity Pro or EcoStruxure Control Expert, using standard function blocks.
6 Recommended Models from the Same Series / Related
-
Schneider 140EHC10500 – Single-channel high-speed counter module
-
Schneider 140ACI04000 – Analog current input module
-
Schneider 140DAI55300 – 16-channel digital input module
-
Schneider 140DDO35300 – 32-channel digital output module
-
Schneider 140DRA84000 – Relay output module
-
Schneider 140NOE77101 – Ethernet communication module
