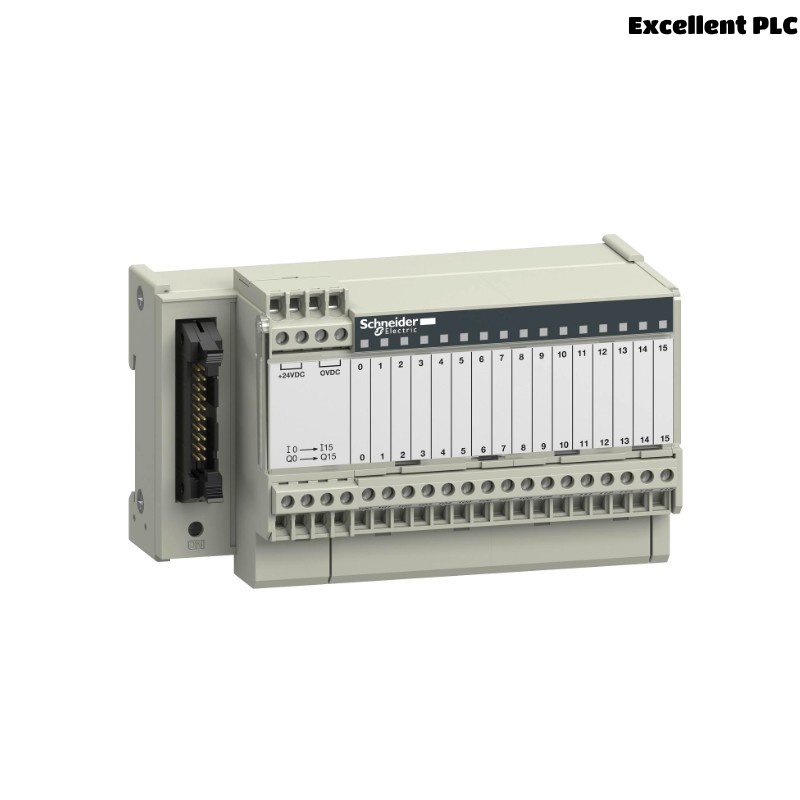

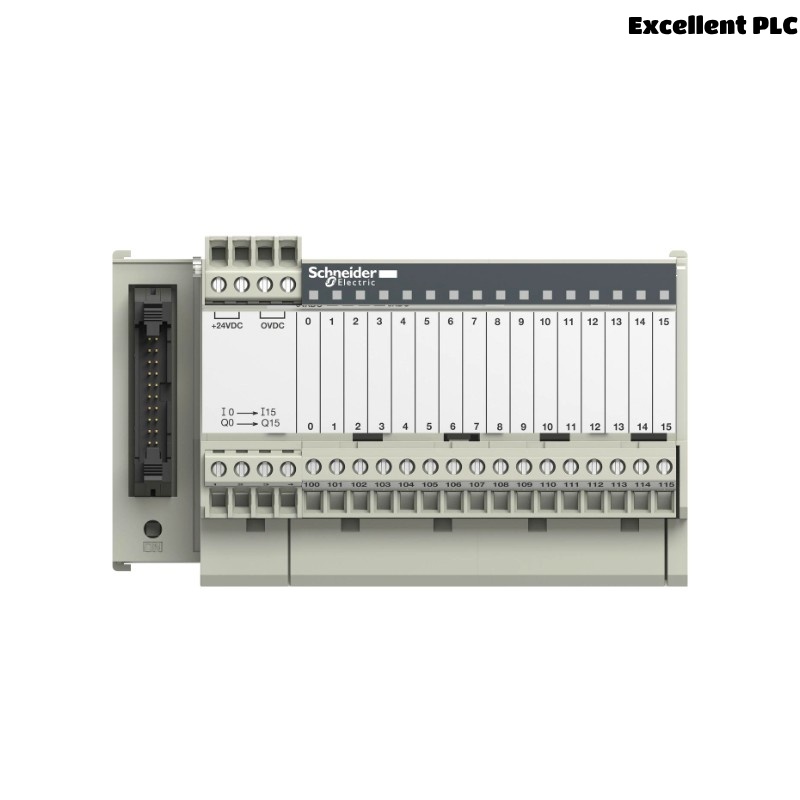

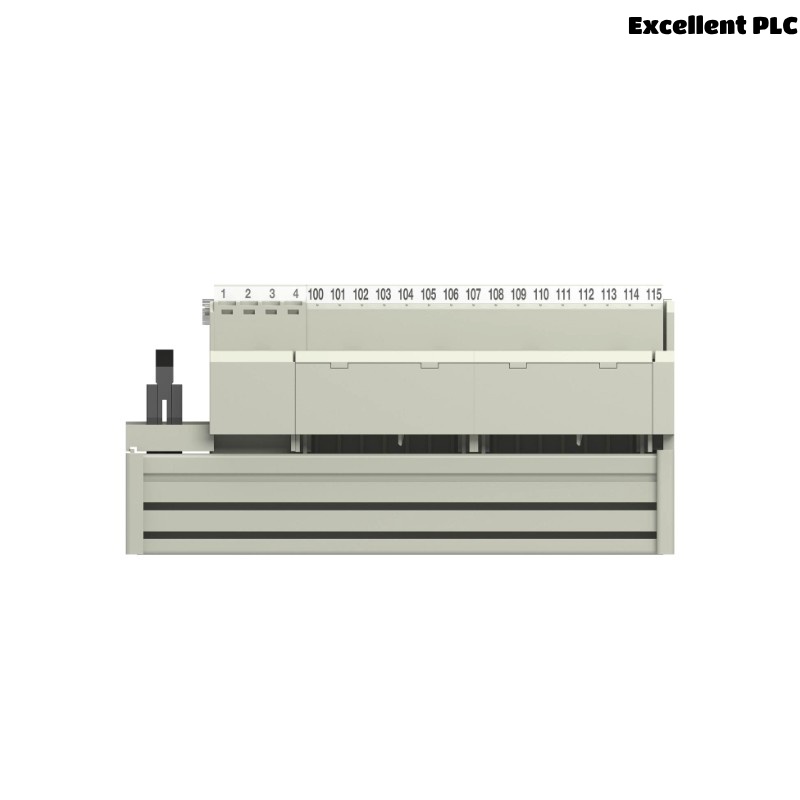

Schneider ABE7R16S111 Soldered Electromechanical Relay Sub Base
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Schneider Electric ABE7R16S111 is a high-quality, soldered electromechanical relay sub-base designed for optimal performance in industrial automation systems. Belonging to the Telemecanique Sensors family and the ABE7 remote I/O range, this device facilitates the quick and reliable connection of 16 electromechanical relays. The ABE7R16S111 offers compactness, durability, and efficient installation, making it ideal for modern, high-demand environments.
This sub-base is primarily used with Zelio relays (RXM series) and allows a soldered relay configuration, ensuring firm electrical contact, excellent vibration resistance, and increased reliability. With a standardized DIN rail mounting method and robust terminal blocks, it simplifies wiring and promotes faster maintenance procedures.
Whether in a control cabinet for a production line, process automation panel, or machine control unit, the ABE7R16S111 ensures consistent signal transmission and long-term operational stability.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider Electric ABE7R16S111 |
| Product Type | Electromechanical Relay Sub Base (Soldered) |
| Series | ABE7 Remote I/O Series |
| Relay Type Supported | RXM Series (Miniature Relays) |
| Number of Channels | 16 |
| Wiring Type | Soldered connections |
| Mounting Type | DIN Rail (35 mm) |
| Rated Operational Voltage | 24 V DC |
| Compatible Interface Module | ABE7CPA/CPM or equivalent |
| Material | Flame-retardant thermoplastic housing |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | 2g (10–150 Hz) |
| Shock Resistance | 15 g (11 ms half-sine) |
| Dimensions (W x H x D) | 125 x 77 x 58 mm |
| Weight | 0.405 kg |
| Standards Compliance | IEC 60947-5-1, UL, CSA |
| RoHS Compliant | Yes |
Product Applications
The Schneider ABE7R16S111 sub-base is highly versatile and used in a wide range of industrial and automation scenarios:
-
Factory Automation Systems: Enables fast signal relay interfacing for PLCs and distributed I/O systems.
-
Machine Control Panels: Connects relays controlling actuators, motors, and solenoids.
-
Building Automation: Provides interface relay outputs in HVAC and lighting systems.
-
Energy Management Systems: Supports input/output expansion in metering and monitoring units.
-
Production Line Control: Integrates with machinery to streamline process control and feedback loops.
-
Water Treatment Plants: Reliable in harsh, high-moisture environments for relay actuation.
Product Advantages
-
Space-Efficient Design: Slim, modular build conserves valuable panel space.
-
High Reliability: Soldered connections offer excellent resistance to vibration and thermal cycling.
-
Fast Wiring and Maintenance: Clearly labeled terminals and DIN rail mounting reduce installation and servicing time.
-
High Compatibility: Seamlessly integrates with RXM series relays and ABE7 interface modules.
-
Enhanced Safety: Built to comply with international electrical and industrial safety standards.
-
Long-Term Stability: Engineered to perform over extended operational cycles without degradation.
-
Durability: Reinforced for industrial settings with shock and vibration protection.
-
Scalability: Allows for expansion in large distributed control architectures.
Frequently Asked Questions (FAQ)
-
Q: What type of relay is compatible with the ABE7R16S111?
A: It is designed specifically for use with the RXM miniature relay series by Schneider Electric. -
Q: Can I use this base in environments with high vibration?
A: Yes, its soldered design enhances vibration resistance, making it suitable for such conditions. -
Q: Does the sub-base include the relays themselves?
A: No, relays must be purchased separately and soldered onto the sub-base. -
Q: How do I mount this relay base?
A: The ABE7R16S111 mounts directly onto a standard 35 mm DIN rail. -
Q: Is the ABE7R16S111 RoHS compliant?
A: Yes, it is compliant with RoHS directives. -
Q: What kind of control systems can this product integrate with?
A: It can be integrated with PLCs, distributed control systems (DCS), and modular I/O systems. -
Q: What is the main difference between a soldered and pluggable relay base?
A: Soldered bases offer higher reliability and mechanical strength, whereas pluggable ones allow for easier relay replacement. -
Q: What is the expected lifespan of the ABE7R16S111?
A: When used under recommended conditions, it provides long service life, typically several years in continuous operation. -
Q: Can it be used outdoors?
A: No, it should be used in a protected control cabinet or indoor panel. -
Q: What certifications does the ABE7R16S111 have?
A: It meets IEC 60947-5-1 standards and is UL and CSA certified.
