Product Introduction

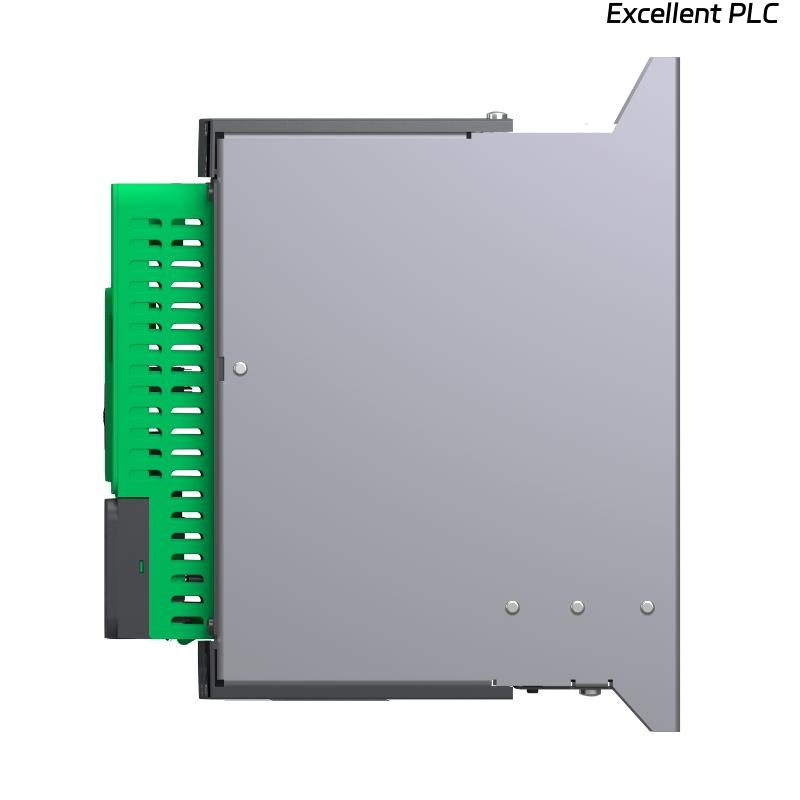

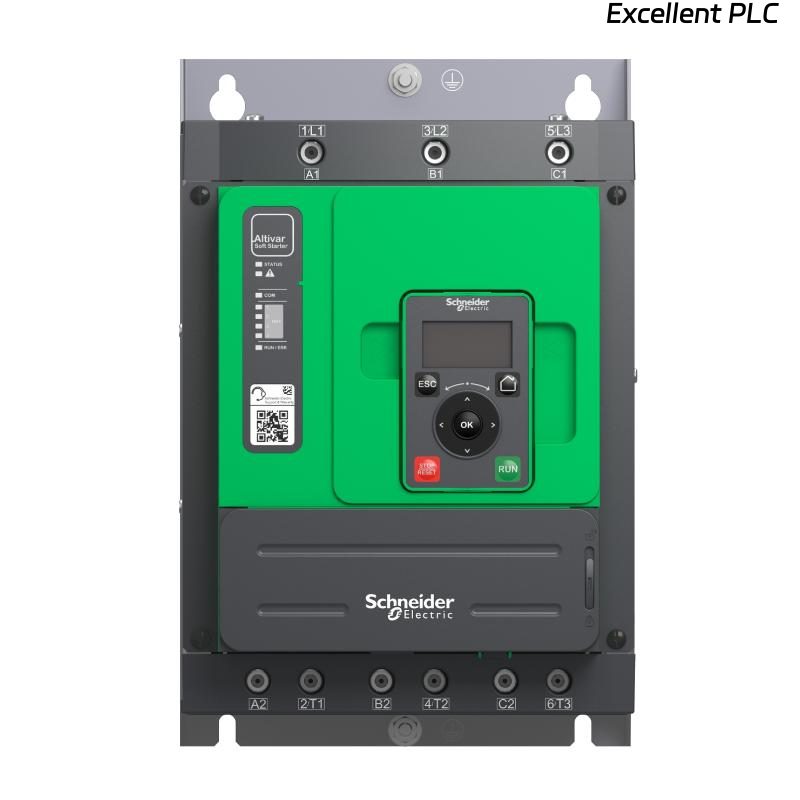

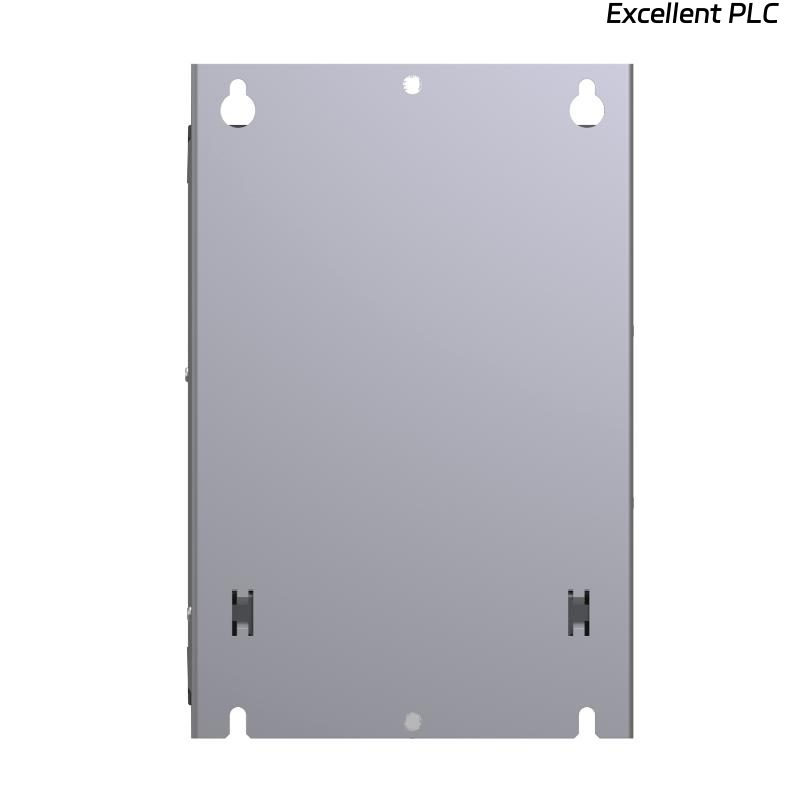

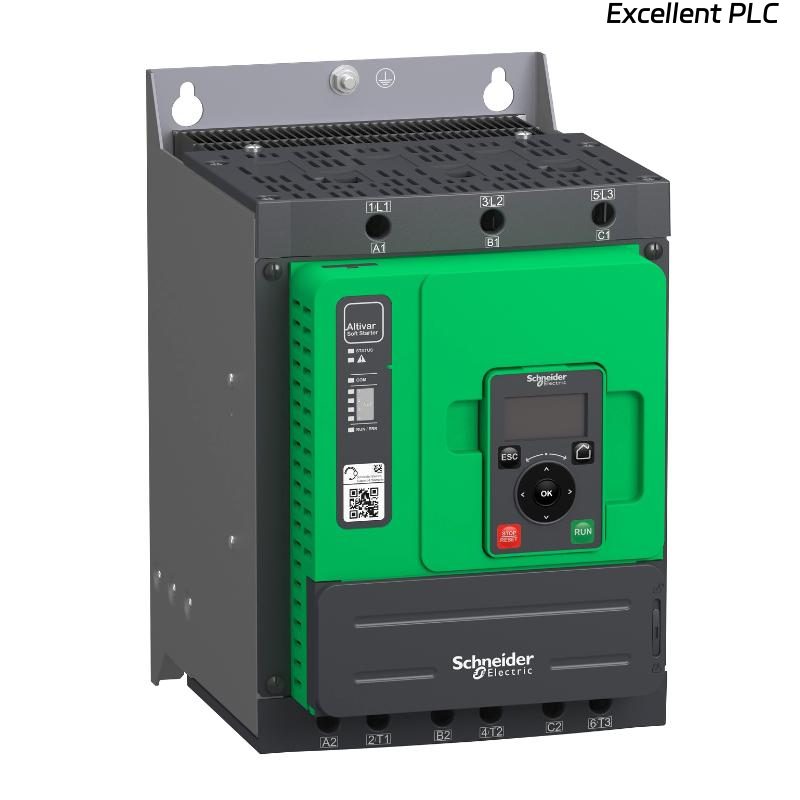

The Schneider ATS480D88Y Soft Starter is a high-performance motor control device from the Altivar ATS480 series, designed to provide smooth starting and stopping of three-phase asynchronous motors in industrial applications. By controlling motor acceleration and deceleration, the ATS480D88Y helps reduce electrical stress, mechanical shock, and equipment wear, improving system reliability and extending the lifespan of connected machinery.
Designed for both normal-duty and heavy-duty operating conditions, the ATS480D88Y supports supply voltages ranging from 208V to 690V AC. With a rated operational current of 88A, the unit can control motors from approximately 22kW to 75kW depending on the system voltage and application requirements. This makes it suitable for a wide variety of industrial processes requiring reliable motor control.
The soft starter incorporates Schneider Electric’s advanced Torque Control System (TCS), which delivers precise control of motor acceleration and deceleration. This technology significantly reduces mechanical stress on pumps, conveyors, compressors, fans, mixers, and other motor-driven equipment. The result is improved process performance, lower maintenance costs, and enhanced equipment protection.
For applications involving high-inertia loads, the ATS480D88Y features both dynamic braking and DC injection braking technologies. These functions provide controlled stopping performance, helping improve operational safety and process efficiency.
The ATS480D88Y can be installed using either in-line or inside-delta configurations, allowing engineers to optimize installation costs and system design. Built with modern industrial requirements in mind, the ATS480 platform also supports digitalization initiatives, enhanced connectivity, and cybersecurity-focused architecture, helping facilities improve operational visibility and system availability.
Suitable for industrial machinery, process automation, utilities, infrastructure, mining, and energy applications, the ATS480D88Y offers a combination of advanced motor control, flexibility, and reliability for demanding environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Schneider ATS480D88Y |
| Product Type | Soft Starter |
| Series | Altivar ATS480 |
| Motor Type | Three-Phase Asynchronous Motor |
| Rated Operational Current | 88 A |
| Motor Power Range | 22 kW to 75 kW |
| Supply Voltage Range | 208 V AC to 690 V AC |
| Starting Method | Soft Start |
| Stopping Method | Soft Stop |
| Torque Control System | TCS (Torque Control System) |
| Dynamic Braking | Supported |
| DC Injection Braking | Supported |
| Installation Modes | In-Line or Inside Delta |
| Connectivity Features | Digital and Network Ready |
| Cybersecurity Support | Enhanced Security Architecture |
| Application Duty | Normal Duty and Heavy Duty |
| Compliance Standard | IEC/EN 60947-4-1 |
| Certifications | CE, cULus, UKCA, CCC, RCM, EAC, DNV, ABS, BV, CCS |
| Dimensions | 290 × 190 × 247 mm |
| Weight | 8.3 kg |
Applications
• Water and Wastewater Treatment Plants – Provides smooth control of pumping systems and reduces hydraulic stress within pipelines.
• Industrial Manufacturing Facilities – Controls production equipment, conveyors, and automated machinery.
• HVAC Systems – Supports fans, chillers, and air-handling equipment requiring controlled motor startup.
• Mining Operations – Improves startup performance for conveyors, crushers, and processing equipment.
• Oil and Gas Facilities – Protects pumps and compressors from excessive starting currents and mechanical shock.
• Power Generation Plants – Controls auxiliary motors and support systems used in energy production.
• Material Handling Systems – Enables smooth operation of elevators, conveyors, and transport systems.
• Chemical Processing Plants – Supports pumps, mixers, and process control equipment.
• Infrastructure Projects – Used in water supply systems, transportation facilities, and public utilities.
• Marine Applications – Suitable for shipboard motor control systems requiring certified equipment.
Advantages
• 88A Rated Current Capacity – Suitable for a wide range of medium-power motor applications.
• Wide Voltage Range – Supports operation from 208V to 690V AC.
• Advanced Torque Control System – Delivers smooth and controlled motor acceleration and deceleration.
• Reduced Mechanical Wear – Minimizes stress on motors, couplings, gearboxes, and driven equipment.
• Dynamic Braking Functionality – Enhances stopping performance for high-inertia applications.
• DC Injection Braking Capability – Provides additional motor stopping control when needed.
• Flexible Installation Options – Supports both in-line and inside-delta configurations.
• Improved Energy System Stability – Reduces voltage dips caused by motor starting currents.
• Digitalization Ready – Supports modern industrial connectivity and operational visibility requirements.
• Globally Certified Platform – Approved for industrial, infrastructure, and marine applications worldwide.
