Product Introduction

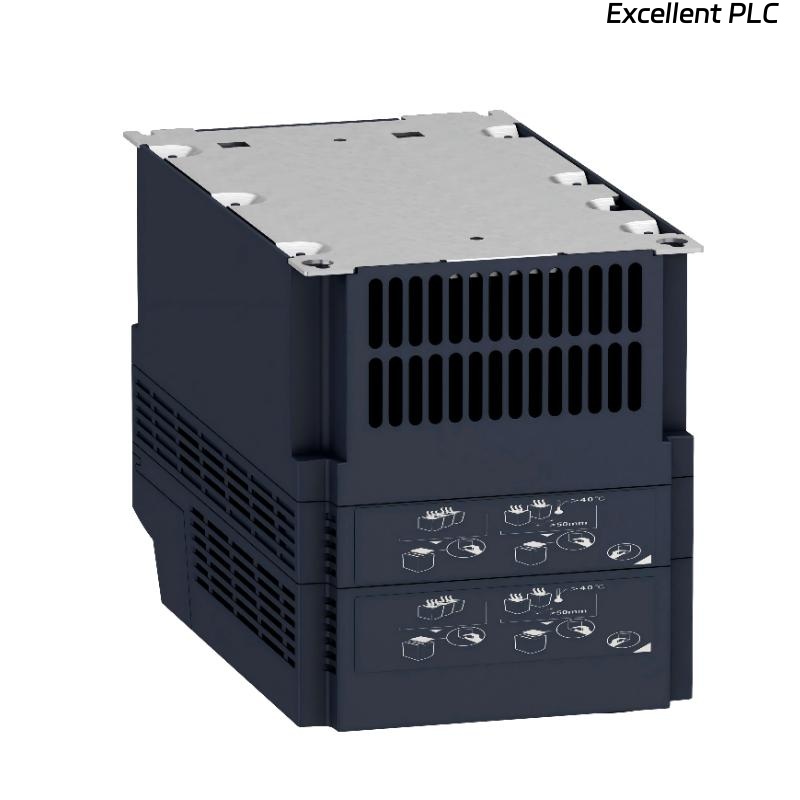

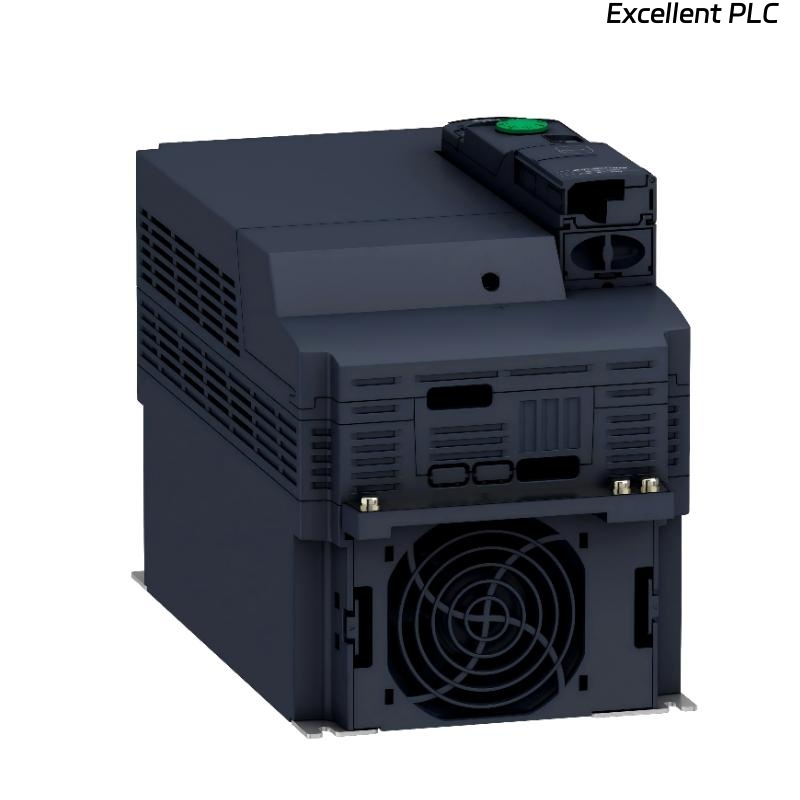

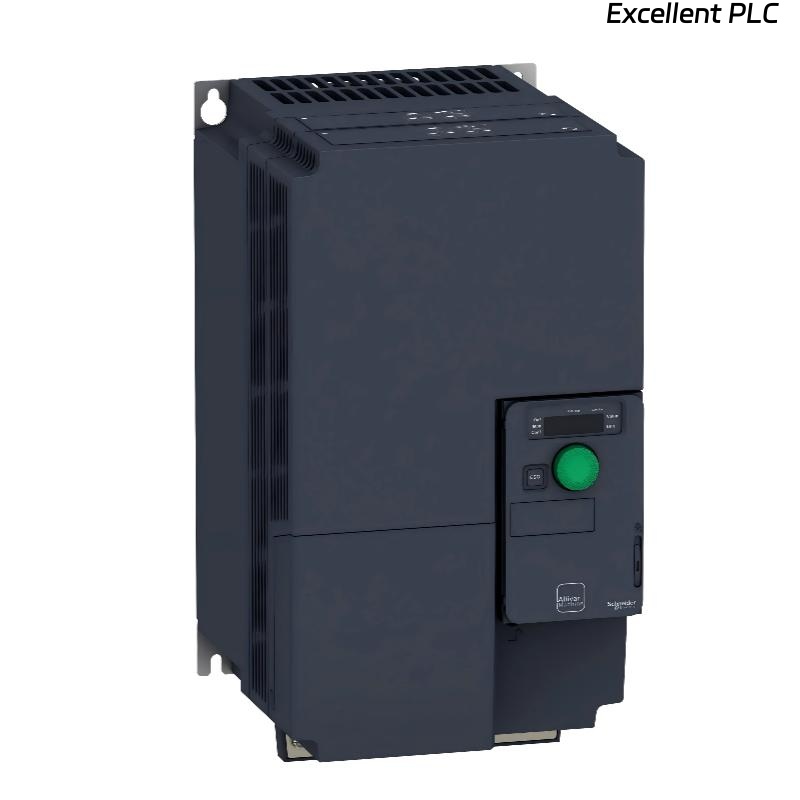

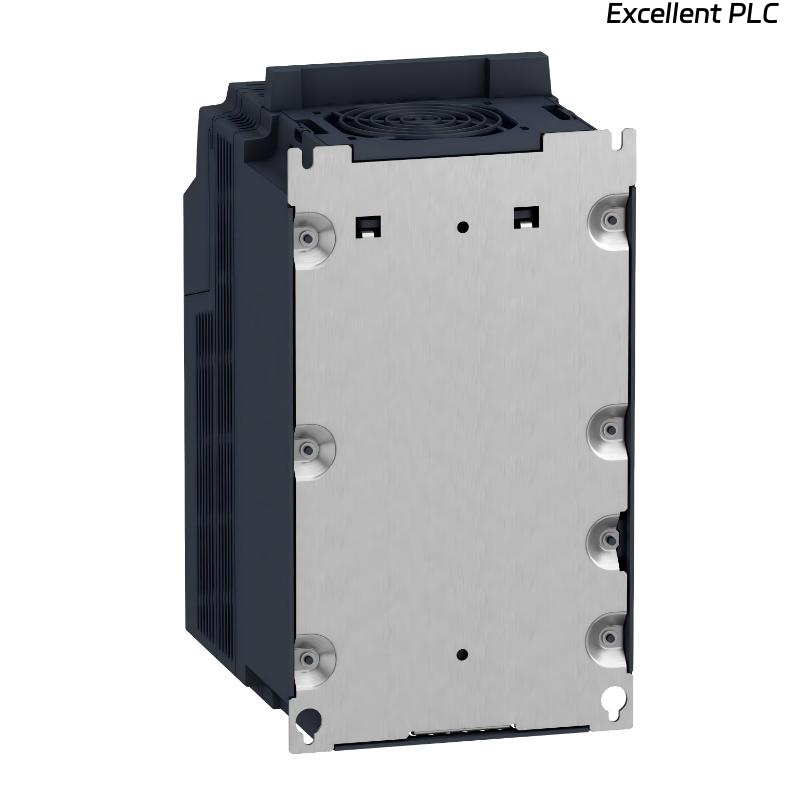

The Schneider Electric ATV320D11N4C Variable Speed Drive belongs to the Altivar Machine ATV320 series, designed to meet the speed control requirements of simple to moderately complex machines. It provides reliable and flexible control for three-phase asynchronous motors, making it suitable for a wide range of industrial and infrastructure applications.
With a compact mechanical design, the ATV320D11N4C can be easily integrated into various machine layouts and electrical cabinet configurations. It is specifically developed for machine manufacturers, offering a balance between performance, robustness, and ease of integration. The drive is capable of operating in demanding environments commonly found in material handling, packaging, and food processing industries, ensuring stable and continuous operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | Schneider ATV320D11N4C |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar Machine ATV320 |
| Rated Motor Power | 11 kW |
| Supply Voltage | 400 V AC |
| Power Supply Phase | Three-phase |
| Motor Type | Asynchronous motor |
| Control Application | Adjustable speed control |
| Degree of Protection | IP21 |
| Installation Type | Control cabinet mounting |
| Application Environment | Industrial and infrastructure |
| Dimensions | 330 × 180 × 198 mm |
| Weight | 6.8 kg |
Applications
• Material Processing Equipment
Used for machines requiring stable speed regulation and reliable torque control.
• Packaging Machines
Supports consistent motion control for packing, filling, and wrapping processes.
• Pumping Systems
Enables efficient control of flow and pressure in industrial pumping applications.
• Material Handling Systems
Applied in hoists, conveyors, and transfer systems with variable speed demands.
• Conveyor Lines
Ensures smooth operation and speed adjustment in logistics and production lines.
Advantages
• Compact and Flexible Design
Allows easy integration into space-constrained electrical cabinets.
• Machine-Oriented Functionality
Designed specifically for machine manufacturers and OEM applications.
• Robust Industrial Performance
Capable of operating reliably in harsh industrial environments.
• Wide Application Coverage
Suitable for industrial machinery, services, and infrastructure projects.
• Stable Speed Control
Provides consistent motor performance under varying load conditions.
• Simplified Integration
Supports straightforward electrical and mechanical integration into machines.
