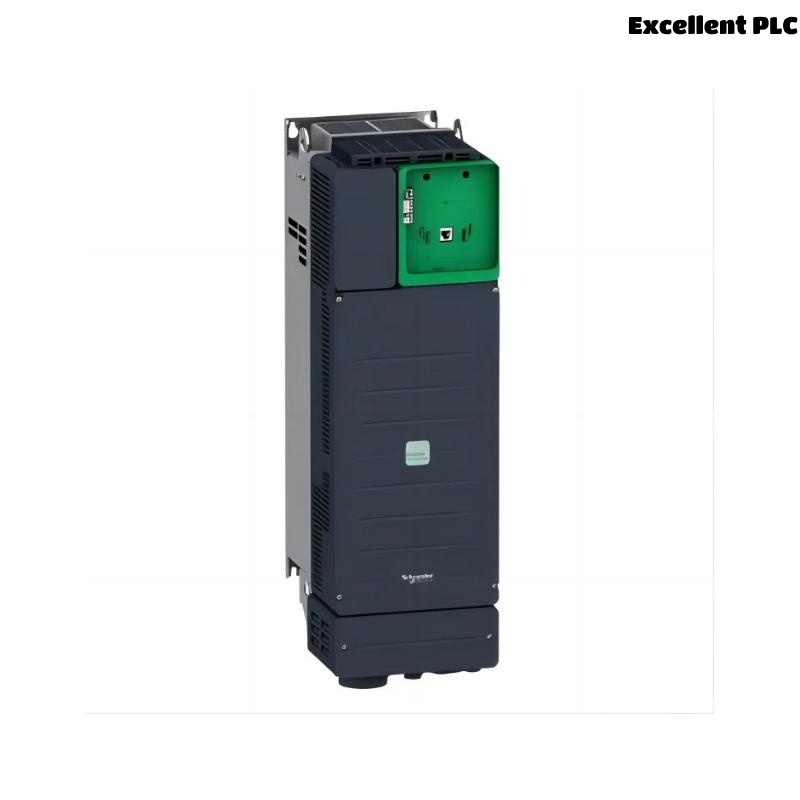

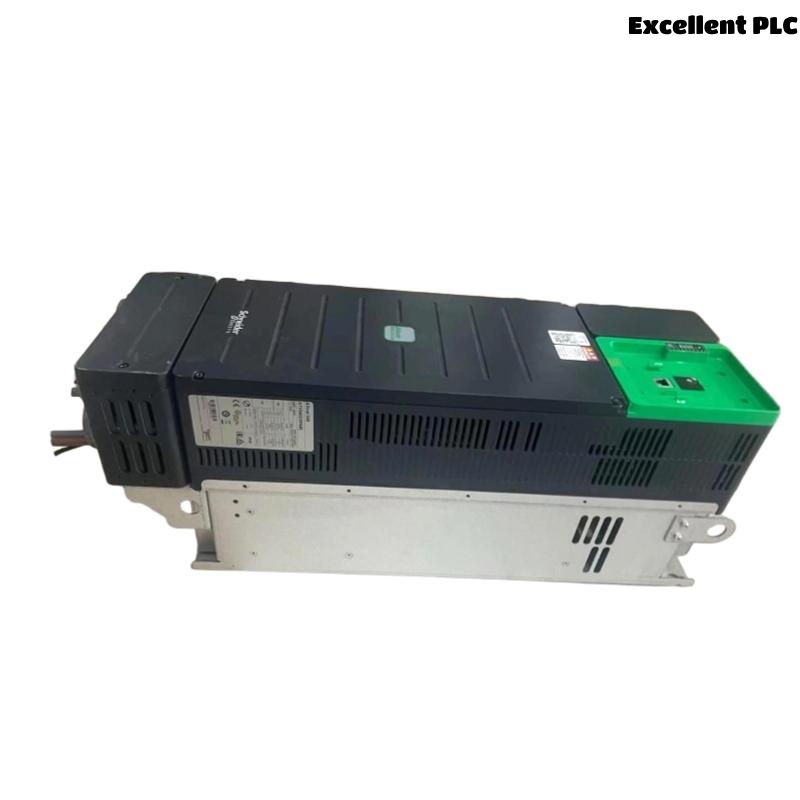

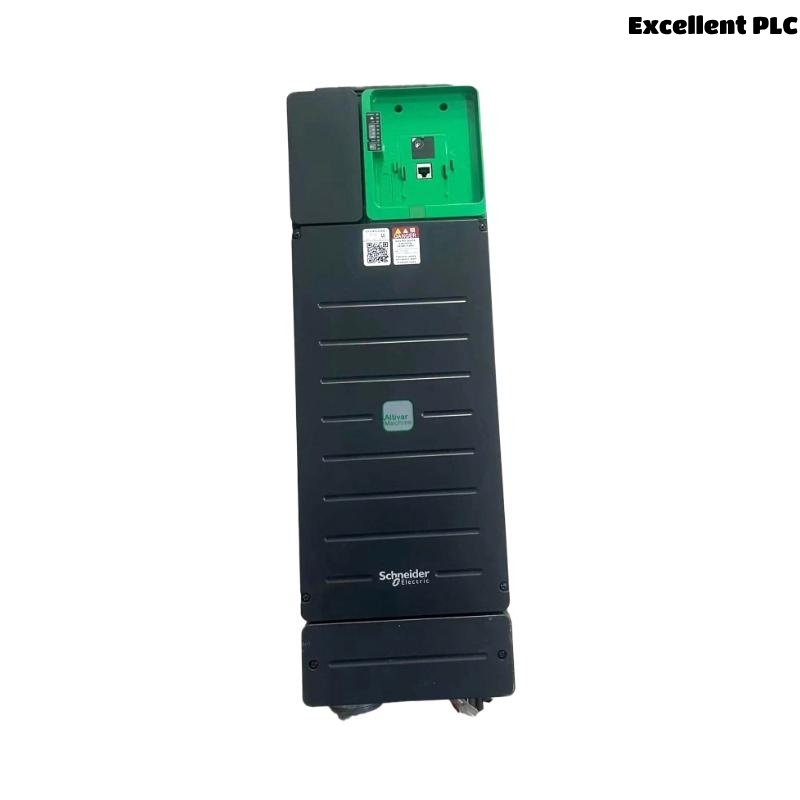

Schneider ATV340D30N4E Variable Speed Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Schneider ATV340D30N4E is a robust and high-performance variable speed drive designed for demanding industrial applications. It offers precise motor control, high torque at low speeds, and seamless integration into automation systems, ensuring optimal performance and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV340D30N4E |
| Rated Power | 30 kW |
| Rated Voltage | 380…480 V AC, 3-phase |
| Frequency Range | 0.1 to 599 Hz |
| Control Method | Sensorless vector, full vector |
| Overload Capacity | 150% for 60s, 170% for 2s |
| Protection Degree | IP21 |
| Communication | Modbus, Ethernet, CANopen, etc. |
| Dimensions (W × H × D) | 213 × 660 × 262 mm |
| Weight | 27.9 kg |
Applications
The ATV340D30N4E is widely used in industrial sectors requiring dynamic motor control and high starting torque, including:
-
Packaging machinery
-
Conveyor systems
-
Metal processing
-
Material handling equipment
-
Textile machinery
Advantages
-
High overload capability for heavy-duty applications
-
Advanced motor control algorithms for energy efficiency
-
Easy integration with automation networks
-
User-friendly interface and configuration tools
-
Rugged design for harsh environments
-
Extended service life with low maintenance
FAQ
Q1: What is the power rating of the ATV340D30N4E?
A1: The rated power is 30 kW.
Q2: What is the input voltage range?
A2: It supports 380…480 V AC, 3-phase.
Q3: Which communication protocols are supported?
A3: It supports Modbus, CANopen, and Ethernet-based protocols.
Q4: Is it suitable for heavy-duty applications?
A4: Yes, it has high overload capacity for demanding loads.
Q5: What is the degree of protection?
A5: The drive is rated IP21.
Q6: Can it be used with different motor types?
A6: Yes, it supports both asynchronous and permanent magnet motors.
Q7: What are the dimensions and weight?
A7: Dimensions are 213 × 660 × 262 mm, weight is 27.9 kg.
Q8: How easy is it to integrate into automation systems?
A8: It offers seamless integration through standard industrial protocols.
Q9: Does it have energy-saving features?
A9: Yes, it optimizes motor efficiency to save energy.
Q10: Is it suitable for harsh environments?
A10: Yes, it is designed to perform reliably in tough industrial conditions.

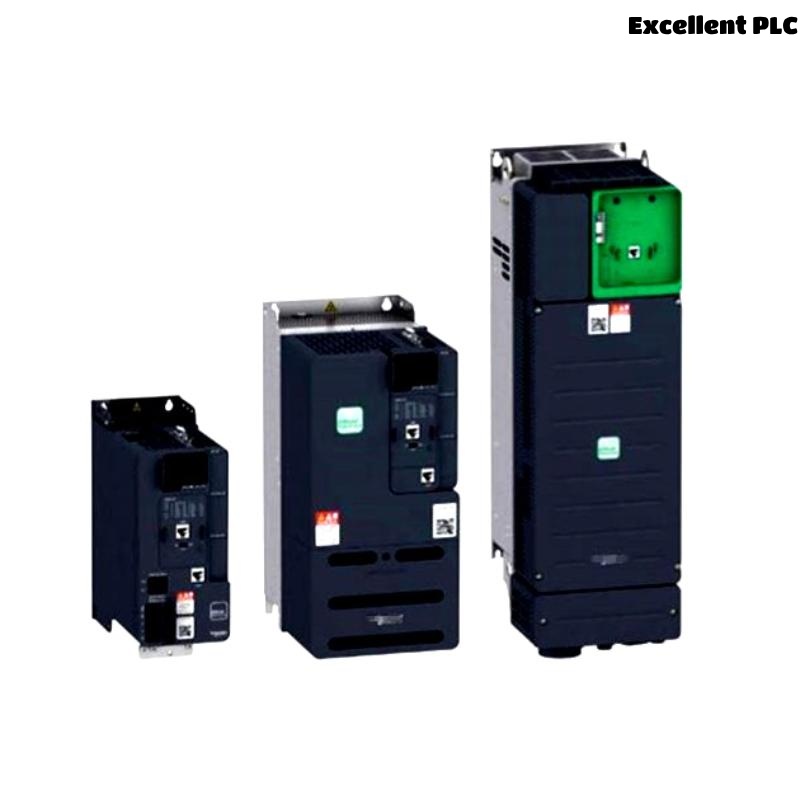

Recommended Related or Same Series Models
| Model | Power Rating | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV340D11N4E | 11 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D15N4E | 15 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D18N4E | 18.5 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D22N4E | 22 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D37N4E | 37 kW | 380–480 V | 213 × 660 × 262 | 29.1 kg |
| ATV340D45N4E | 45 kW | 380–480 V | 213 × 810 × 262 | 36.4 kg |
Recommended Popular Schneider Models
| Model | Power Rating | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV630D30N4 | 30 kW | 380–480 V | 275 × 660 × 320 | 40.5 kg |
| ATV930D30N4 | 30 kW | 380–480 V | 275 × 660 × 320 | 41.0 kg |
| Altivar 71 ATV71HU30N4 | 3 kW | 380–480 V | 150 × 300 × 232 | 7.5 kg |
| ATV12H075M2 | 0.75 kW | 200–240 V | 72 × 143 × 130 | 1.1 kg |
| ATV212HU30N4 | 3 kW | 380–480 V | 142 × 196 × 184 | 4.5 kg |
| ATV61HU55N4 | 5.5 kW | 380–480 V | 200 × 405 × 232 | 12.5 kg |
