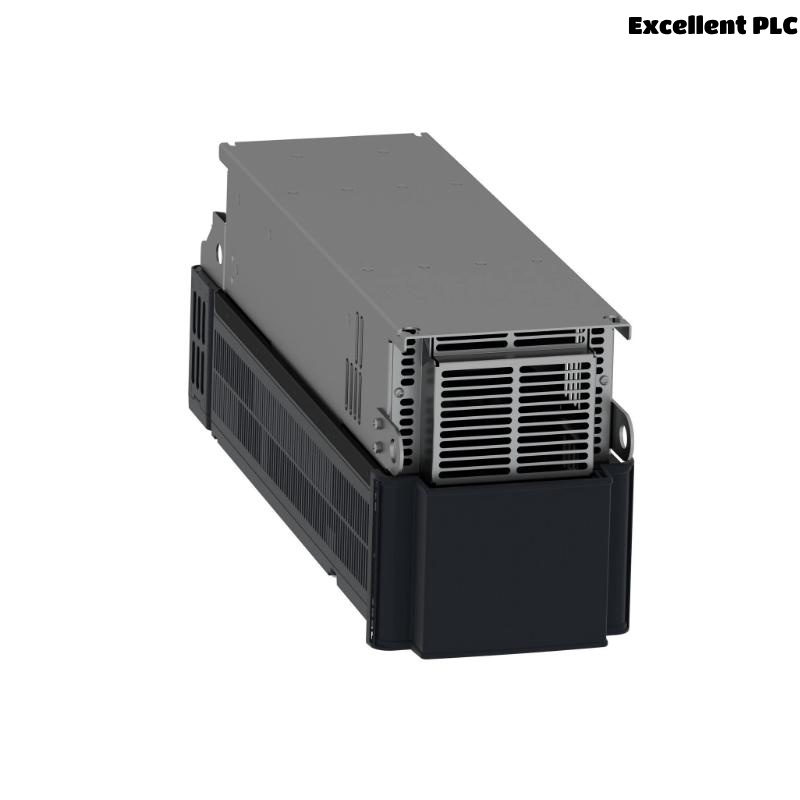

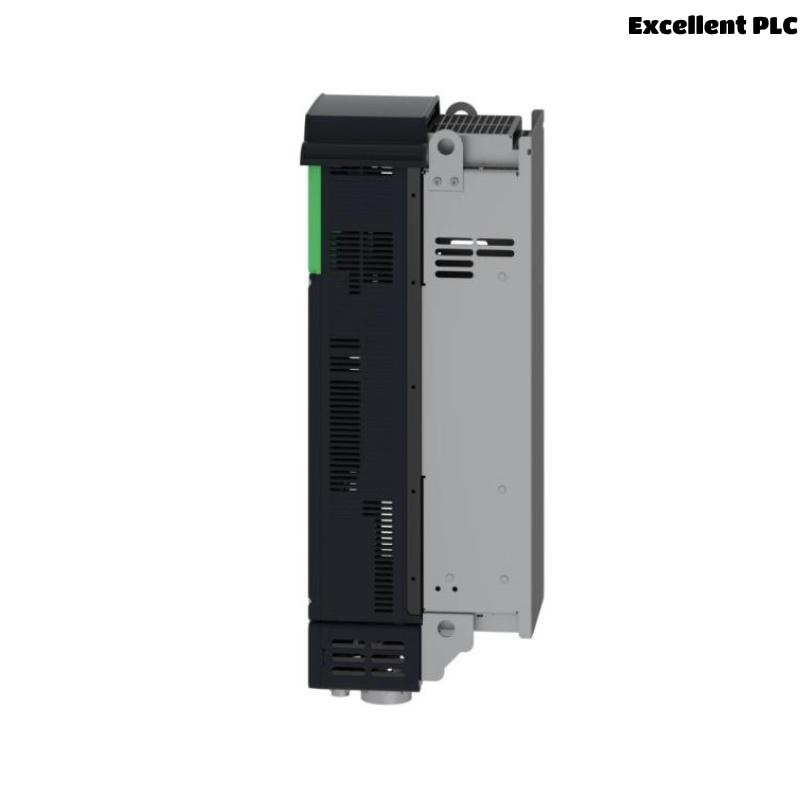

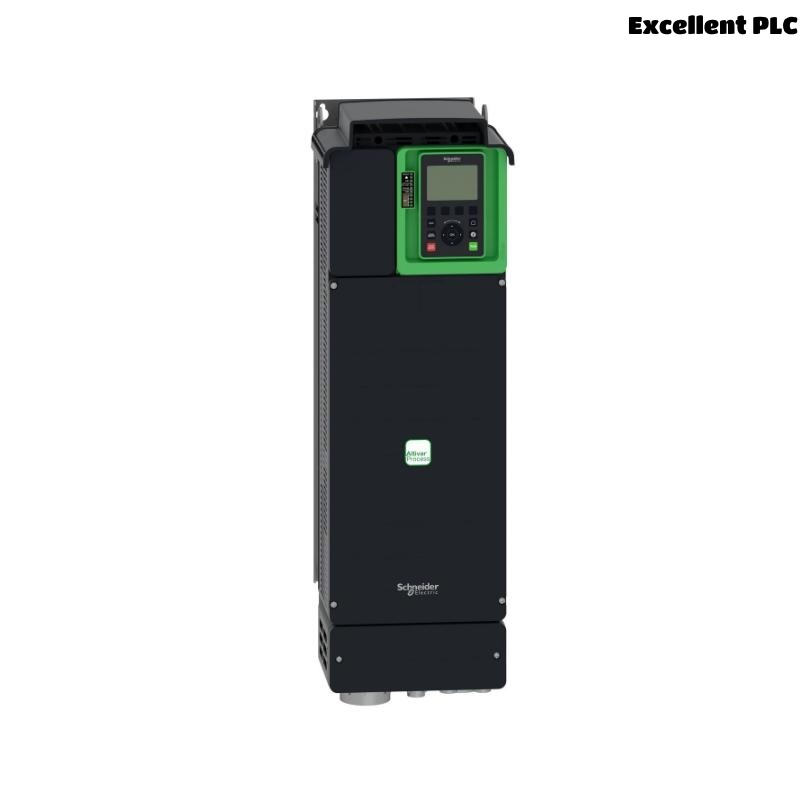

Schneider ATV630D37N4 Variable Speed Drive
The Schneider ATV630D37N4 is a robust and efficient variable speed drive designed for industrial motor control. It ensures optimized performance, energy savings, and reliability in demanding applications.
Product Description
The ATV630D37N4 is part of the Altivar Process ATV600 series, tailored for controlling 3-phase asynchronous and synchronous motors. With advanced energy monitoring and process optimization features, it is ideal for pumping, ventilation, and industrial processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV630D37N4 |
| Power Rating | 37 kW (50 HP) |
| Supply Voltage | 380…480 V AC (3-phase) |
| Frequency Range | 0.1…500 Hz |
| Output Current | 72 A |
| Control Type | V/F, Vector Control |
| Protection Degree | IP21 |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W x H x D) | 226 x 673 x 271 mm |
| Weight | 28.2 kg |
Applications
-
Water and wastewater treatment systems
-
HVAC (Heating, Ventilation, Air Conditioning)
-
Pumping stations
-
Material handling
-
Industrial process control
-
Energy management systems
Advantages
-
High energy efficiency with real-time monitoring
-
Advanced motor protection and diagnostics
-
Easy integration with industrial networks
-
Compact design for space-saving installations
-
Reduced maintenance due to robust design
-
User-friendly interface with intuitive display
Frequently Asked Questions
Q1: What is the input voltage range for the ATV630D37N4?
A1: It operates on 380–480 V AC, 3-phase.
Q2: Can it control both asynchronous and synchronous motors?
A2: Yes, it supports both motor types effectively.
Q3: Is it suitable for high humidity environments?
A3: Yes, with proper installation and optional conformal coating for extreme conditions.
Q4: What communication protocols are supported?
A4: It supports Modbus, Ethernet, CANopen, and more via optional cards.
Q5: Does it feature energy consumption monitoring?
A5: Yes, it provides real-time energy monitoring and diagnostics.
Q6: Can the drive be used for HVAC applications?
A6: Absolutely, it is optimized for HVAC fans, pumps, and compressors.
Q7: What is the maximum output frequency?
A7: The drive can output up to 500 Hz.
Q8: Is there an option for remote monitoring?
A8: Yes, remote monitoring is possible through network connectivity.
Q9: Does it have any safety certifications?
A9: Yes, it meets international standards like CE and UL.
Q10: How is the cooling of the drive managed?
A10: It uses forced air cooling with integrated fans.
Recommended Related Models (Same Series or Similar)
| Model | Power Rating | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV630D22N4 | 22 kW | 380–480V | 226 x 550 x 271 | 22.3 kg |
| ATV630D30N4 | 30 kW | 380–480V | 226 x 673 x 271 | 27.1 kg |
| ATV630D45N4 | 45 kW | 380–480V | 226 x 853 x 271 | 36.4 kg |
| ATV630D55N4 | 55 kW | 380–480V | 226 x 853 x 271 | 39.2 kg |
| ATV630D75N4 | 75 kW | 380–480V | 276 x 1033 x 328 | 60.2 kg |
| ATV630D90N4 | 90 kW | 380–480V | 276 x 1033 x 328 | 64.8 kg |
Popular Schneider Models
| Model | Power Rating | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV320U07M2C | 0.75 kW | 200–240V | 72 x 143 x 148 | 1.2 kg |
| ATV320U15N4C | 1.5 kW | 380–480V | 72 x 143 x 148 | 1.3 kg |
| ATV340D22N4E | 22 kW | 380–480V | 180 x 502 x 232 | 19.5 kg |
| ATV71HD11N4 | 11 kW | 380–480V | 142 x 380 x 232 | 9.8 kg |
| ATV71HD45N4 | 45 kW | 380–480V | 226 x 853 x 271 | 36.4 kg |
| ATV71HU30N4 | 30 kW | 380–480V | 226 x 673 x 271 | 27.1 kg |
