Product Introduction

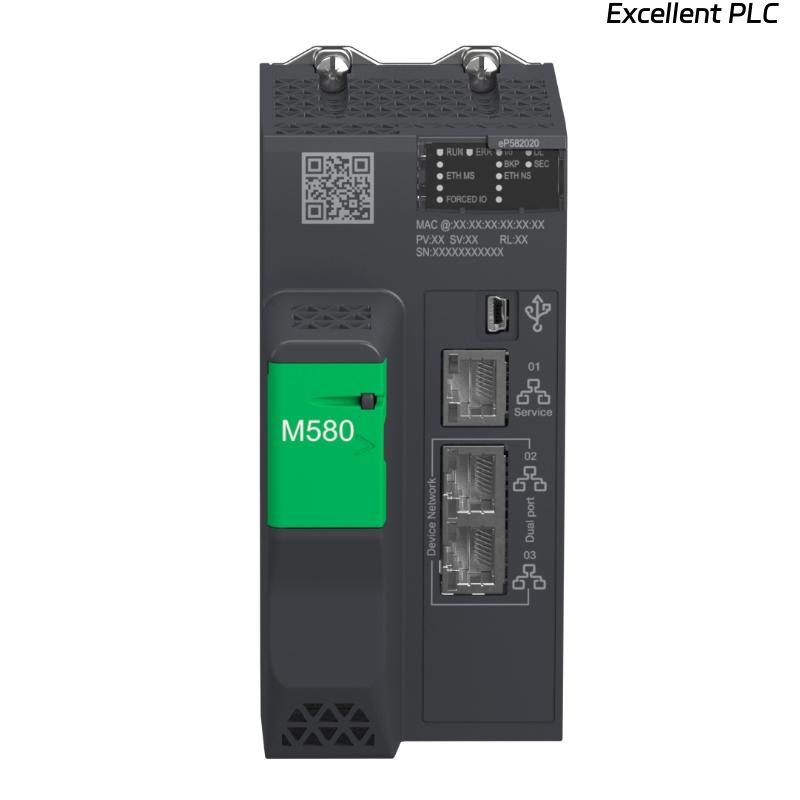

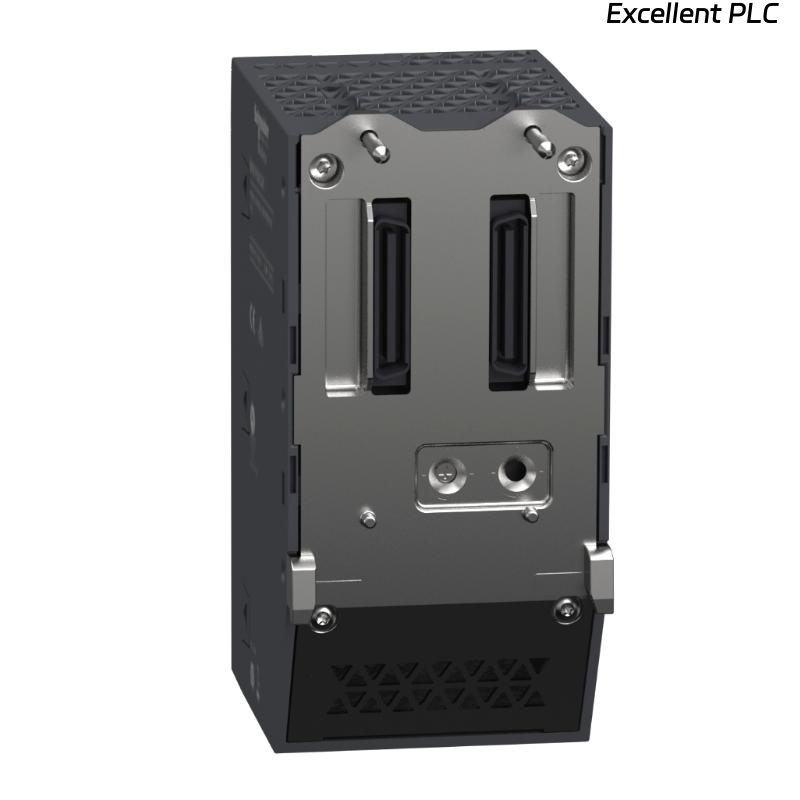

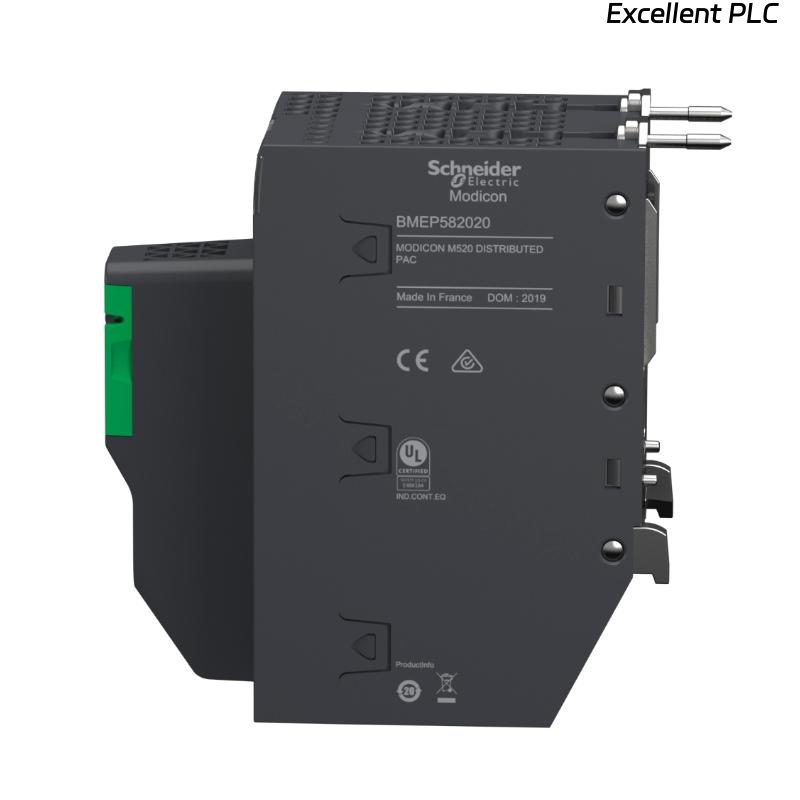

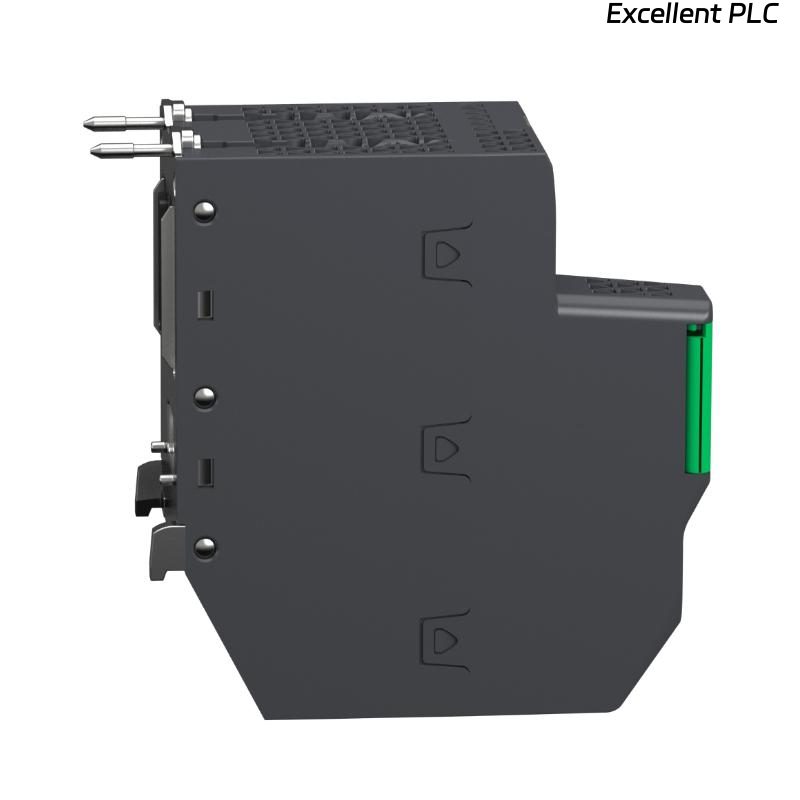

The Schneider BMEP582020 Standalone Processor is a high-performance controller from the Modicon M580 automation platform, designed for medium and large-scale industrial automation applications. As part of Schneider Electric’s next-generation Programmable Automation Controller (PAC) family, the processor combines powerful computing capabilities, integrated Ethernet communication, and advanced system architecture to deliver reliable control and monitoring performance.
The BMEP582020 serves as the central processing unit of a Modicon M580 automation system, executing control logic, managing communications, processing I/O data, and coordinating plant operations. With built-in Ethernet connectivity, the processor enables seamless integration with operator workstations, SCADA systems, engineering stations, remote I/O networks, and industrial devices, reducing the need for additional communication hardware.
Designed to support up to four rack configurations, the processor can manage up to 2048 discrete I/O channels, 512 analog I/O channels, and 128 distributed devices. This scalability makes it suitable for a wide range of applications, from production lines and utility systems to complex process control environments.
The processor incorporates 8 MB of program memory, 768 KB of data memory, and expandable flash storage of up to 4 GB, providing sufficient resources for sophisticated automation strategies and long-term data handling. Its robust design, IP20 protection rating, and high MTBF of 600,000 hours ensure dependable operation in demanding industrial environments.
The BMEP582020 is widely used in water treatment facilities, power generation plants, manufacturing industries, chemical processing operations, mining systems, transportation infrastructure, and other applications requiring reliable and scalable automation control.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Schneider BMEP582020 |
| Product Type | Standalone Processor Module |
| Series | Modicon M580 |
| Controller Type | Programmable Automation Controller (PAC) |
| Maximum Rack Configuration | 4 Racks |
| Application Specific Channels | 72 Channels |
| Power Supply | 24 VDC |
| Current Consumption | 270 mA |
| Maximum Discrete I/O | 2048 Channels |
| Maximum Analog I/O | 512 Channels |
| Distributed Equipment Support | 128 Devices |
| Service Port | Ethernet TCP/IP |
| Device Network Ports | 2 Ethernet TCP/IP |
| HSBY Port | Ethernet |
| Programming Port | USB Mini-B |
| Program Memory | 8 MB RAM |
| Data Memory | 768 KB |
| System Memory | 10 KB |
| Flash Memory | 4 GB Expandable |
| Protection Rating | IP20 |
| MTBF | 600,000 Hours |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
Applications
• Water and Wastewater Treatment Plants – Provides reliable control for treatment, pumping, and distribution systems.
• Power Generation Facilities – Supports monitoring and automation of critical power production processes.
• Chemical Processing Plants – Manages continuous and batch processing applications.
• Manufacturing Industries – Controls production lines, machinery, and automated equipment.
• Mining Operations – Supports material handling, crushing, conveying, and processing systems.
• Transportation Infrastructure – Used in tunnels, rail systems, and traffic management applications.
• Food and Beverage Production – Controls processing, packaging, and quality monitoring systems.
• Building Materials Industry – Supports automation of cement, glass, and construction material production.
• Oil and Gas Facilities – Provides process control and operational monitoring.
• Utility and Energy Systems – Supports automation of distribution and infrastructure equipment.
Advantages
• Integrated Ethernet Communication – Simplifies system architecture and improves connectivity.
• High Processing Capability – Supports demanding automation and process control applications.
• Large I/O Capacity – Suitable for medium and large-scale automation systems.
• Expandable Memory Resources – Supports complex applications and data storage requirements.
• Support for Distributed Architectures – Enables communication with multiple remote devices.
• Reliable Long-Term Operation – High MTBF contributes to reduced maintenance requirements.
• Flexible Network Connectivity – Multiple Ethernet ports support various communication needs.
• Compact Design – Optimizes cabinet space without sacrificing performance.
• Easy Integration – Fully compatible with the Modicon M580 platform.
• Industrial-Grade Construction – Designed for continuous operation in demanding environments.
