Schneider TSXSAZ10 AS-Interface Master Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

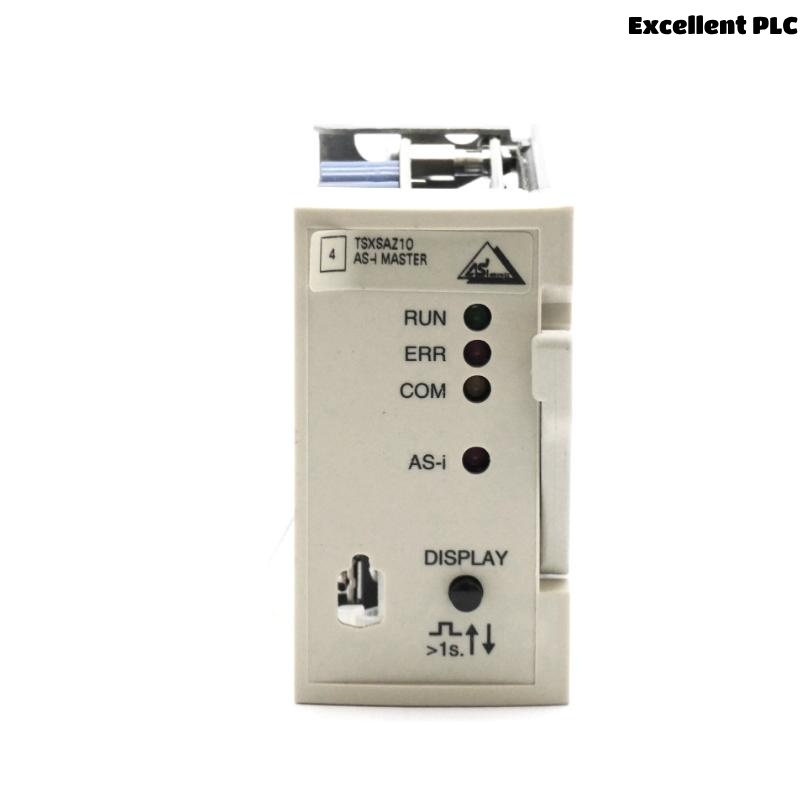

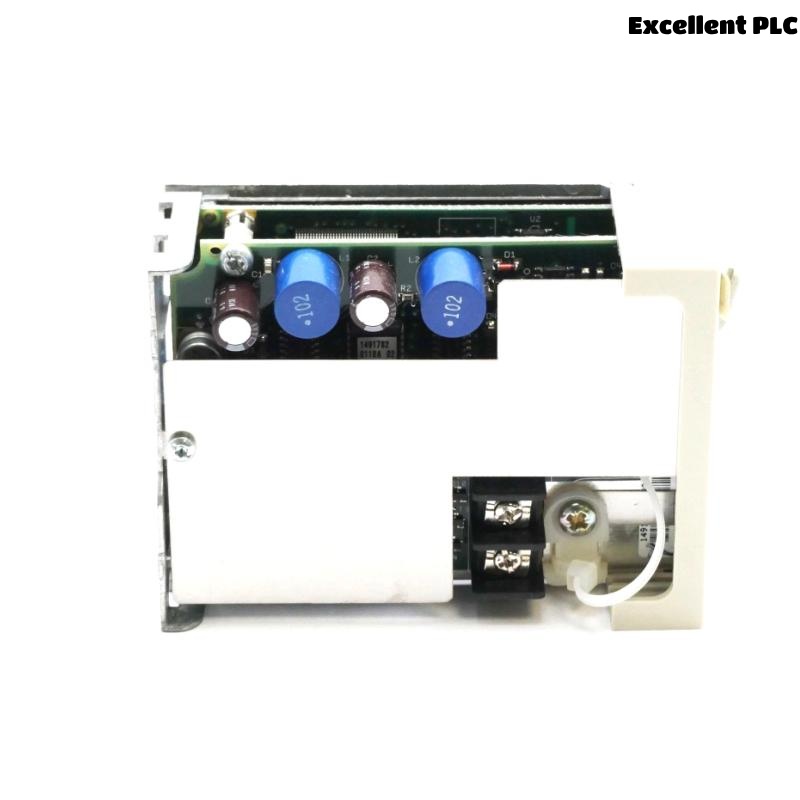

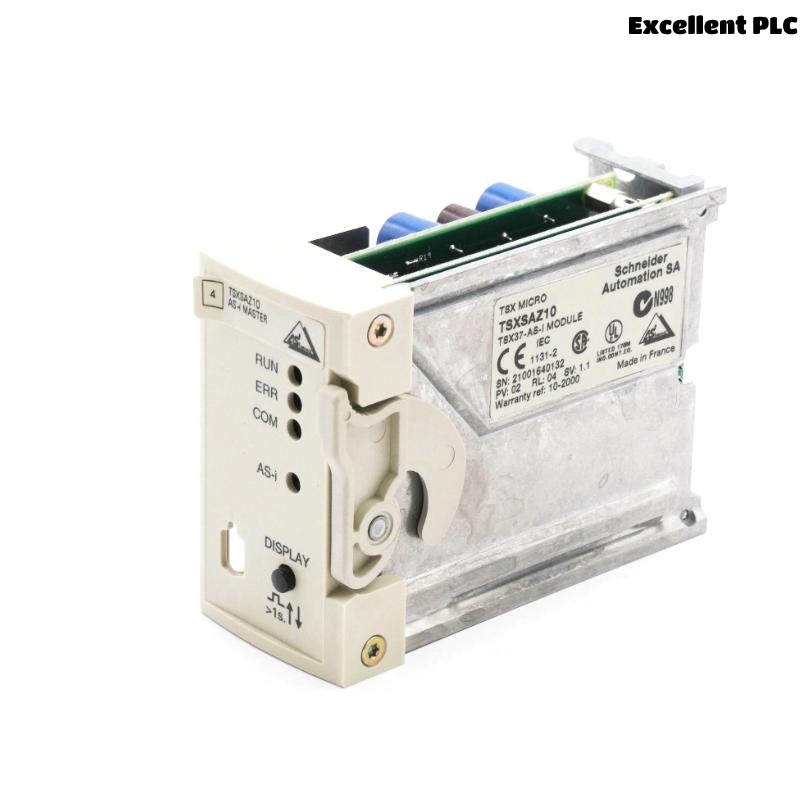

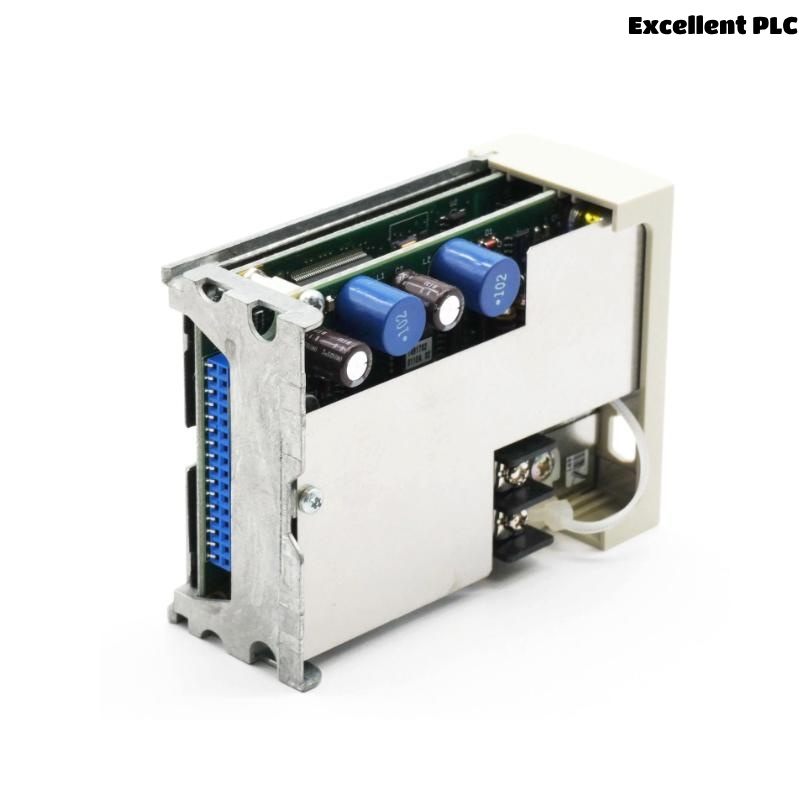

The Schneider TSXSAZ10 is an AS-Interface (AS-i) Master Module designed for use with Modicon TSX Micro PLCs. It serves as the communication interface between the PLC and field devices using the AS-i protocol. Compact and DIN-rail mountable, the TSXSAZ10 enables fast, decentralized I/O communication with up to 31 AS-i slaves. It supports direct device addressing and simplifies field wiring for distributed automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | TSXSAZ10 |
| Communication Protocol | AS-Interface (AS-i) |
| Compatible System | Modicon TSX Micro |
| Number of AS-i Slaves | Up to 31 |
| Power Supply Voltage | 24 V DC |
| Interface Type | 2-wire AS-i network |
| Installation Type | DIN rail |
| Diagnostics Functions | Integrated LED indicators |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -25°C to 70°C |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 55 × 57 × 255 mm |
| Weight | 0.324 kg |
Applications
-
Decentralized automation in factory and process industries
-
Conveyor systems in logistics and warehousing
-
Packaging lines and machinery automation
-
Material handling and sorting equipment
-
Distributed I/O control in automotive production lines
Advantages
-
Simplifies wiring with a 2-wire AS-i communication line
-
Reduces commissioning time with auto-addressing features
-
Enhances reliability through built-in diagnostics
-
Compact form factor suitable for confined control panels
-
Supports cost-effective expansion of I/O modules
-
Compatible with standard Modicon TSX Micro controllers
FAQ (Frequently Asked Questions)
Q1: What is the main function of the TSXSAZ10 module?
A1: It acts as an AS-i master, enabling communication between Modicon TSX Micro PLCs and field I/O devices.
Q2: How many AS-i slave devices can it manage?
A2: It supports up to 31 standard AS-i slave devices.
Q3: Is it compatible with other Modicon PLC series?
A3: It is specifically designed for use with Modicon TSX Micro PLCs.
Q4: Does the module provide diagnostic indicators?
A4: Yes, it has integrated LED indicators for status and diagnostics.
Q5: What is the power supply requirement?
A5: The module operates on a 24 V DC power supply.
Q6: Can it be mounted on a DIN rail?
A6: Yes, it is DIN rail mountable for easy installation.
Q7: What is the communication interface used?
A7: It uses a 2-wire AS-i interface for communication with field devices.
Q8: Is the module hot-swappable?
A8: No, the module should be powered down before replacement.
Q9: What type of environments is it suitable for?
A9: It is suited for industrial environments with an operating range of 0°C to 60°C.
Q10: Can I use it for safety applications?
A10: No, this module is not designed for safety-critical AS-i Safety at Work applications.
Related or Same Series Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXSAZ20 | Dual-channel AS-i Master Module | 55 × 57 × 255 | 0.330 |
| TSXSAY10 | AS-i Power Supply Interface Module | 55 × 57 × 255 | 0.312 |
| TSXSCP114 | Communication Processor | 55 × 57 × 255 | 0.315 |
| TSXP57303M | TSX Premium CPU with AS-i Support | 80 × 100 × 270 | 0.525 |
| TSXCTY2C | Communication Adapter for AS-i | 45 × 60 × 200 | 0.280 |
| TSXP572634M | Premium PLC CPU with networking | 80 × 100 × 270 | 0.580 |
Popular Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| BMXP342020 | Modicon M340 PLC CPU Module | 100 × 125 × 100 | 0.600 |
| BMEXBP0600 | Modicon M340 Base Backplane (6-slot) | 400 × 40 × 130 | 0.750 |
| BMXCPS3500 | M340 Power Supply Module | 125 × 40 × 105 | 0.420 |
| BMXDAI1605 | M340 Digital Input Module | 32 × 100 × 110 | 0.280 |
| BMXDRA1605 | M340 Relay Output Module | 32 × 100 × 110 | 0.300 |
| BMXNOE0100 | M340 Ethernet Communication Module | 32 × 100 × 110 | 0.310 |
FAQ (Frequently Asked Questions)
Q1: What is the main function of the TSXSAZ10 module?
A1: It acts as an AS-i master, enabling communication between Modicon TSX Micro PLCs and field I/O devices.
Q2: How many AS-i slave devices can it manage?
A2: It supports up to 31 standard AS-i slave devices.
Q3: Is it compatible with other Modicon PLC series?
A3: It is specifically designed for use with Modicon TSX Micro PLCs.
Q4: Does the module provide diagnostic indicators?
A4: Yes, it has integrated LED indicators for status and diagnostics.
Q5: What is the power supply requirement?
A5: The module operates on a 24 V DC power supply.
Q6: Can it be mounted on a DIN rail?
A6: Yes, it is DIN rail mountable for easy installation.
Q7: What is the communication interface used?
A7: It uses a 2-wire AS-i interface for communication with field devices.
Q8: Is the module hot-swappable?
A8: No, the module should be powered down before replacement.
Q9: What type of environments is it suitable for?
A9: It is suited for industrial environments with an operating range of 0°C to 60°C.
Q10: Can I use it for safety applications?
A10: No, this module is not designed for safety-critical AS-i Safety at Work applications.
Related or Same Series Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXSAZ20 | Dual-channel AS-i Master Module | 55 × 57 × 255 | 0.330 |
| TSXSAY10 | AS-i Power Supply Interface Module | 55 × 57 × 255 | 0.312 |
| TSXSCP114 | Communication Processor | 55 × 57 × 255 | 0.315 |
| TSXP57303M | TSX Premium CPU with AS-i Support | 80 × 100 × 270 | 0.525 |
| TSXCTY2C | Communication Adapter for AS-i | 45 × 60 × 200 | 0.280 |
| TSXP572634M | Premium PLC CPU with networking | 80 × 100 × 270 | 0.580 |
Popular Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| BMXP342020 | Modicon M340 PLC CPU Module | 100 × 125 × 100 | 0.600 |
| BMEXBP0600 | Modicon M340 Base Backplane (6-slot) | 400 × 40 × 130 | 0.750 |
| BMXCPS3500 | M340 Power Supply Module | 125 × 40 × 105 | 0.420 |
| BMXDAI1605 | M340 Digital Input Module | 32 × 100 × 110 | 0.280 |
| BMXDRA1605 | M340 Relay Output Module | 32 × 100 × 110 | 0.300 |
| BMXNOE0100 | M340 Ethernet Communication Module | 32 × 100 × 110 | 0.310 |
