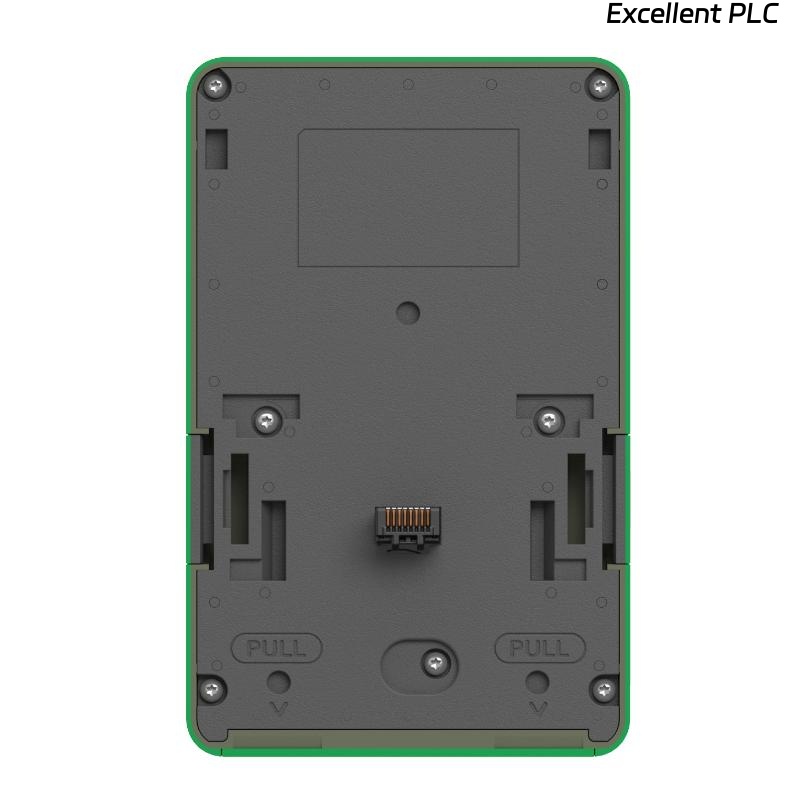

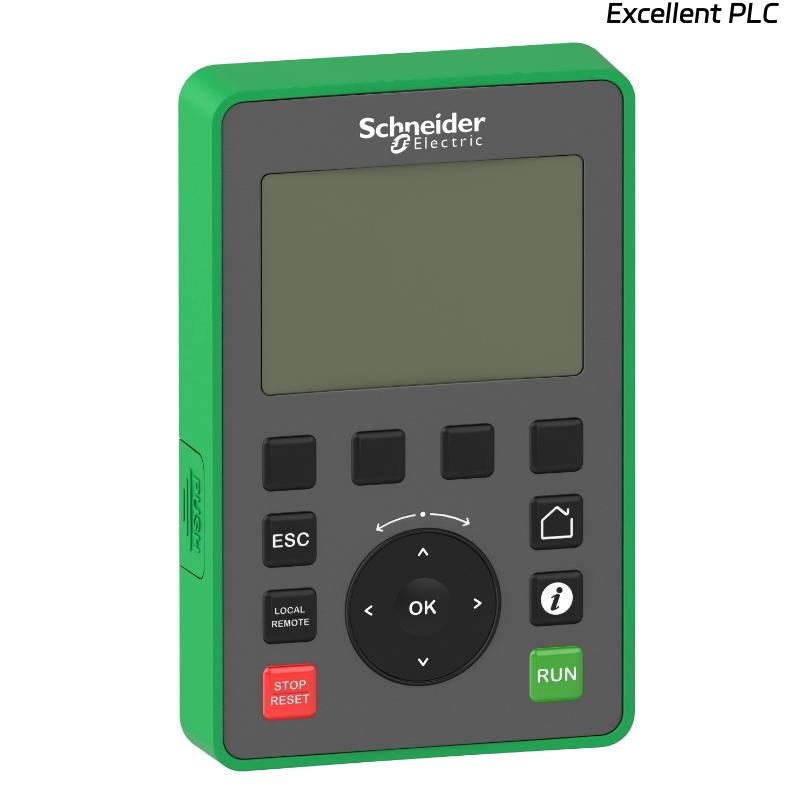

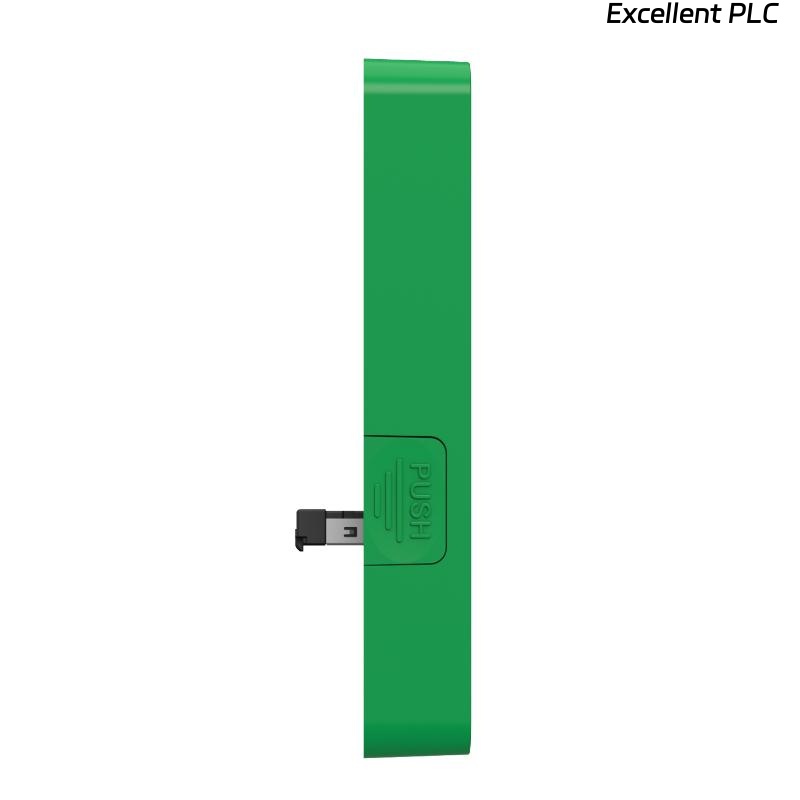

Schneider VW3A1111 Graphic Display Terminal

Product Introduction

The Schneider Electric VW3A1111 Graphic Display Terminal is an advanced dialogue and visualization accessory designed for Altivar variable speed drives. It serves as a high-function human–machine interface, enabling operators and engineers to interact efficiently with the drive for monitoring, configuration, and control tasks.

Equipped with a backlit LCD graphic display using white and red illumination, the terminal delivers clear and readable information even in challenging industrial environments. Its 240 × 160 pixel resolution and 8-line display capacity allow detailed visualization of parameters, operating states, alarms, and real-time motor values.

The VW3A1111 supports 24 integrated languages, covering most global industrial regions, with the option to add additional languages. It also features 16 MB internal memory, enabling users to save, upload, and download multiple drive configurations, which significantly simplifies commissioning and maintenance. With an IP65 protection rating, it is well suited for harsh environments, and it can be remotely mounted on an enclosure door using a dedicated mounting kit.

Product Specifications

Applications

• Control and configuration of Altivar drives, providing full access to parameters

• Real-time monitoring, displaying motor, I/O, and operational values

• Commissioning activities, simplifying initial setup and system tuning

• Industrial automation panels, requiring graphic visualization and diagnostics

• Maintenance and troubleshooting, enabling fast fault identification

• Global installations, benefiting from multi-language support

Advantages

• High-resolution graphic display, improving readability and usability

• IP65 protection, suitable for demanding industrial environments

• Multi-language capability, supporting international deployments

• Integrated memory, allowing storage and reuse of multiple configurations

• Remote mounting capability, enhancing operator safety and accessibility

• Comprehensive drive interaction, from configuration to diagnostics

• User-friendly interface, reducing commissioning and maintenance time
