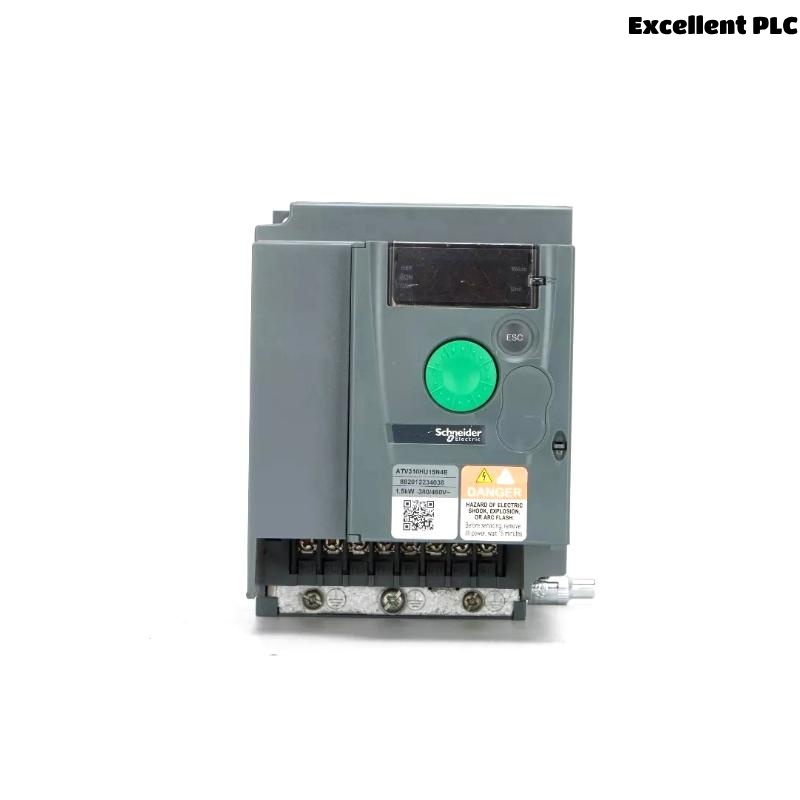

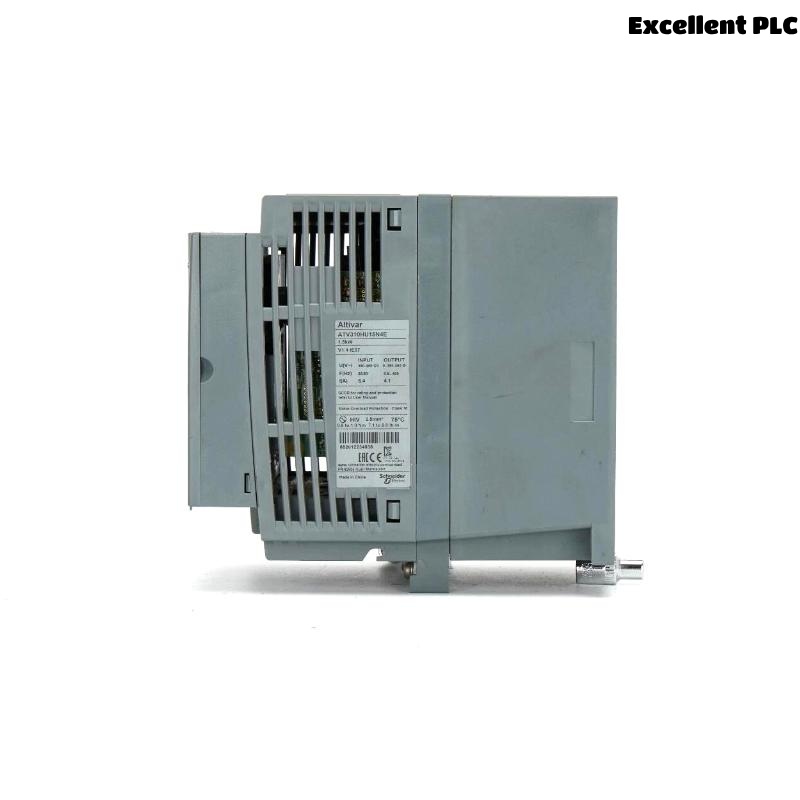

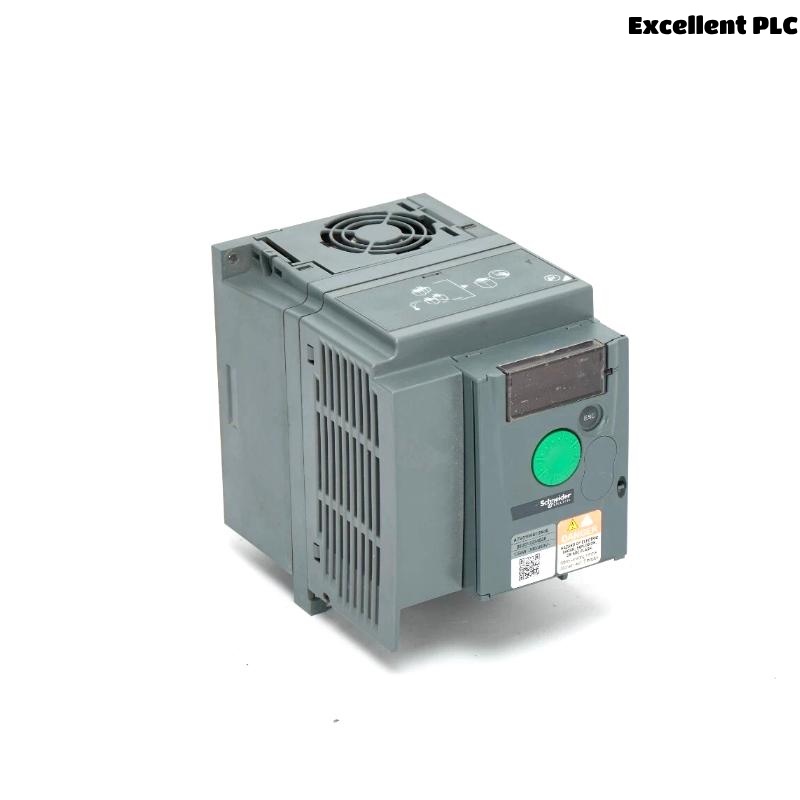

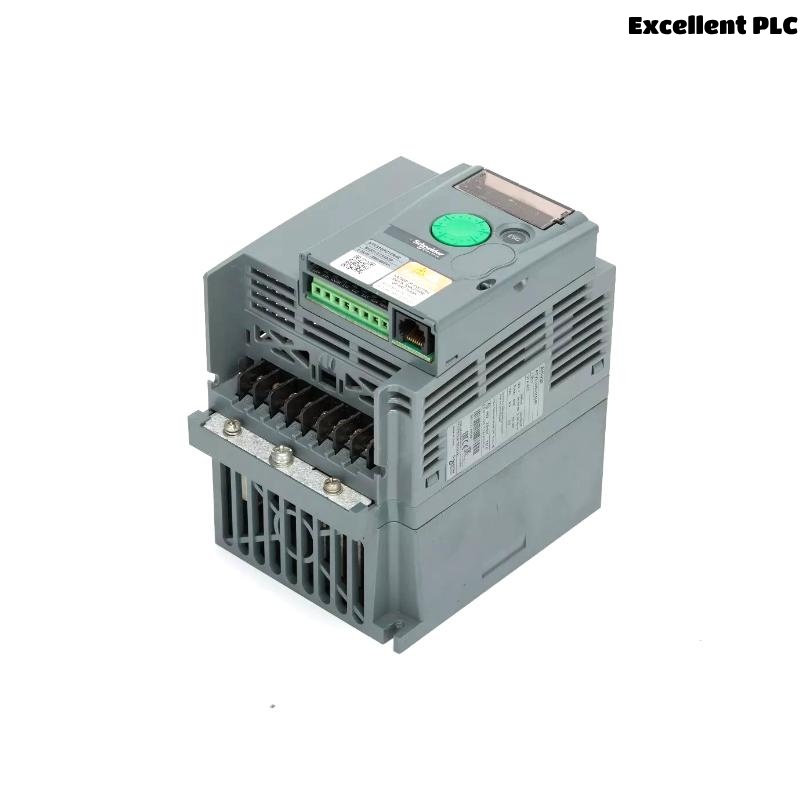

Schneider ATV310HU15N4E Variable Speed Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Schneider ATV310HU15N4E is a compact, reliable variable speed drive designed for asynchronous motors. It offers precise motor control for industrial and commercial applications, supporting energy efficiency and ease of integration with Modbus communication.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV310HU15N4E |
| Power Supply | 380–460 V AC, 50/60 Hz |
| Rated Motor Power | 1.5 kW (2 HP) |
| Output Frequency | 0.5–400 Hz |
| Communication Interface | Modbus (RS485) |
| Control Method | V/F, sensorless vector |
| Dimensions (H x W x D) | 143 x 105 x 151 mm |
| Weight | 1.1 kg |
| Operating Temperature | -10 to +50°C |
| Protection Class | IP20 |
Applications
-
Conveyor systems
-
Fans and pumps
-
Packaging machinery
-
HVAC systems
-
Light-duty material handling
-
General industrial automation
Advantages
-
Compact design for easy installation
-
Integrated Modbus communication for seamless control and monitoring
-
High reliability in demanding environments
-
Energy-efficient motor control
-
User-friendly configuration and operation
FAQ
Q1: What type of motors can the ATV310HU15N4E control?
A1: It is designed for asynchronous (induction) motors.
Q2: What is the power rating of this model?
A2: The rated power is 1.5 kW (2 HP).
Q3: Does it support fieldbus communication?
A3: Yes, it has integrated Modbus RTU over RS485.
Q4: What is the degree of protection?
A4: The drive has an IP20 protection rating.
Q5: Can it operate in high-temperature environments?
A5: It can operate in ambient temperatures up to +50°C.
Q6: What is the maximum output frequency?
A6: The maximum output frequency is 400 Hz.
Q7: Is it suitable for fan and pump applications?
A7: Yes, it is ideal for such variable torque applications.
Q8: How compact is the drive?
A8: It measures only 143 x 105 x 151 mm and weighs 1.1 kg.
Q9: Is there an integrated braking resistor?
A9: No, an external braking resistor is required if braking is needed.
Q10: Can it handle overload conditions?
A10: Yes, it has overload protection features built in.
Recommended Similar or Related Models
| Model | Power | Voltage Range | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV310HU07N4E | 0.75 kW | 380–460 V | 143 x 105 x 151 | 1.0 kg |
| ATV310HU11N4E | 1.1 kW | 380–460 V | 143 x 105 x 151 | 1.0 kg |
| ATV310HU22N4E | 2.2 kW | 380–460 V | 143 x 105 x 151 | 1.2 kg |
| ATV310HU30N4E | 3.0 kW | 380–460 V | 181 x 142 x 156 | 2.5 kg |
| ATV310HU40N4E | 4.0 kW | 380–460 V | 181 x 142 x 156 | 2.7 kg |
| ATV310HU55N4E | 5.5 kW | 380–460 V | 261 x 180 x 198 | 5.5 kg |
Other Popular Schneider Models
| Model | Power | Voltage Range | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV320U07M3C | 0.75 kW | 200–240 V | 143 x 105 x 151 | 1.2 kg |
| ATV320U15M3C | 1.5 kW | 200–240 V | 143 x 105 x 151 | 1.2 kg |
| ATV630C11N4 | 11 kW | 380–480 V | 480 x 264 x 258 | 14 kg |
| ATV12H075M2 | 0.75 kW | 200–240 V | 142 x 72 x 135 | 1.0 kg |
| ATV71HD22N4 | 22 kW | 380–480 V | 698 x 317 x 310 | 37 kg |
| ATV930C11N4 | 11 kW | 380–480 V | 520 x 300 x 270 | 28 kg |
