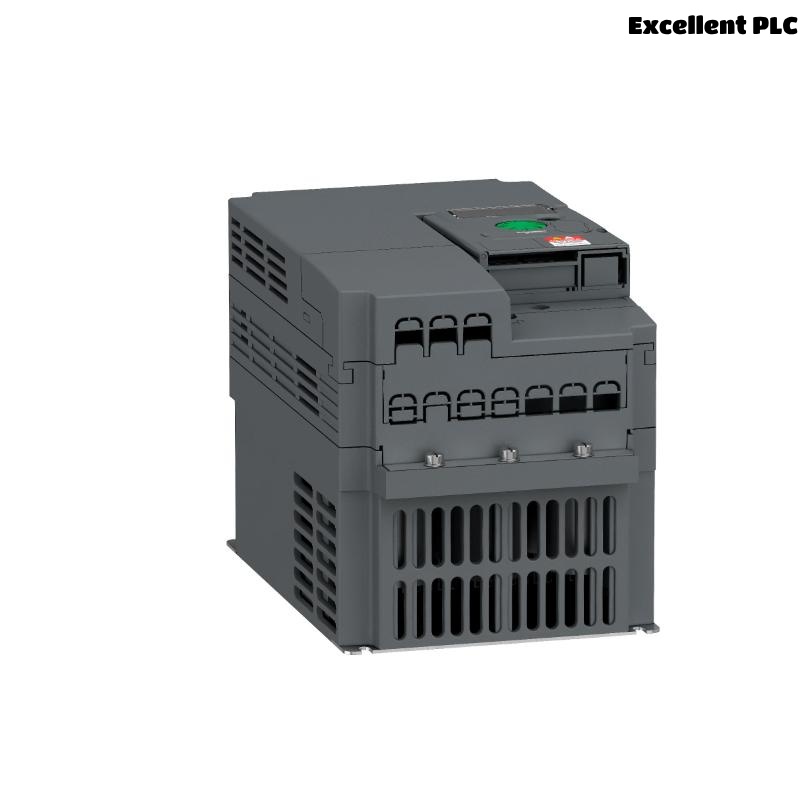

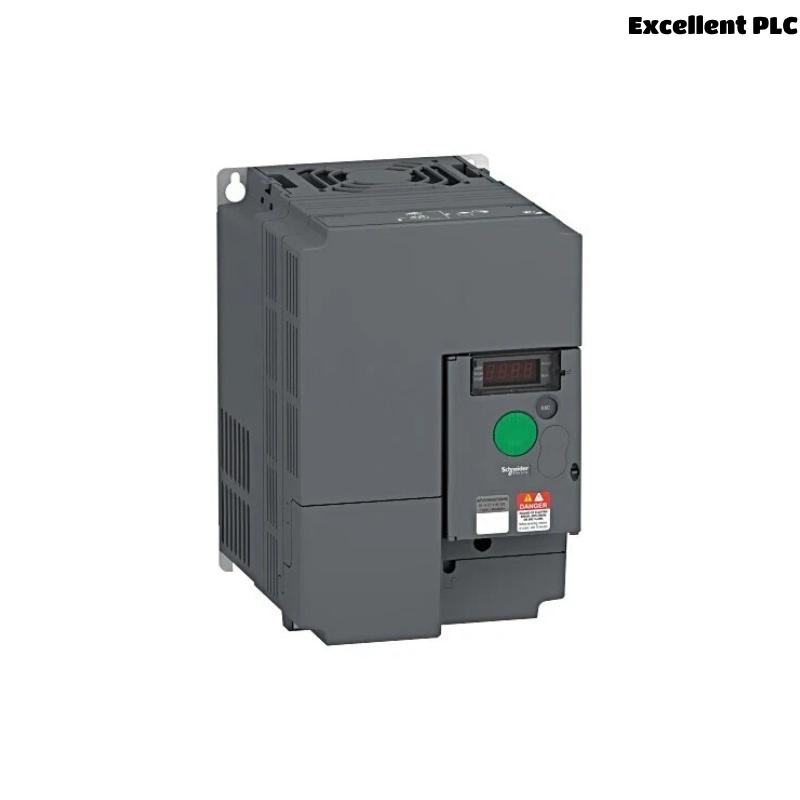

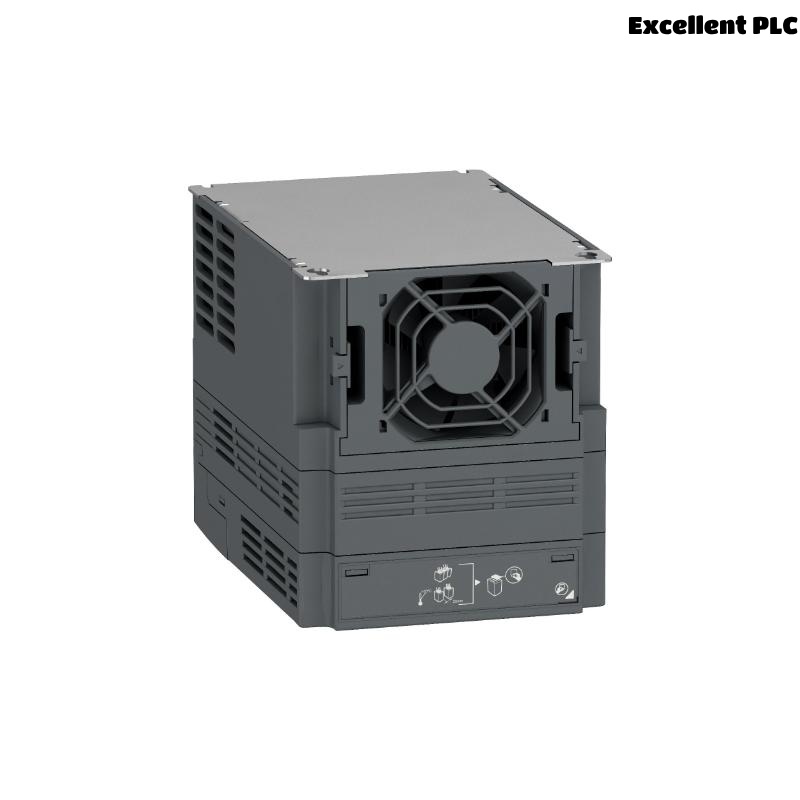

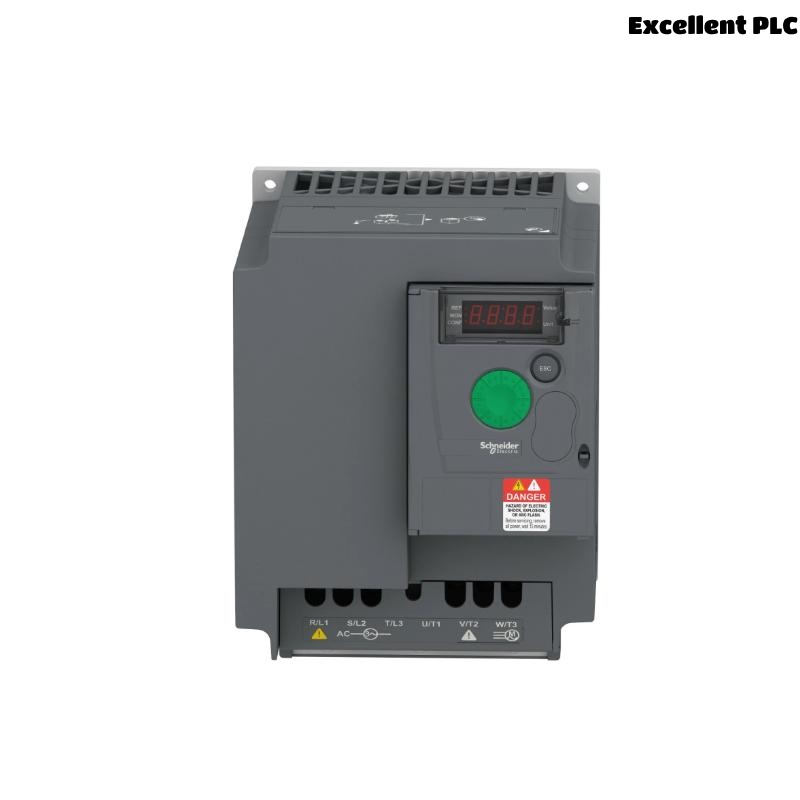

Schneider ATV310HU75N4E Variable Speed Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Schneider ATV310HU75N4E is a compact, robust variable speed drive designed for asynchronous motors. It offers efficient control of motor speed and torque, delivering energy savings and improved process performance. Engineered for reliability, it is particularly suitable for industrial and commercial applications in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV310HU75N4E |
| Power Supply | 380–460 V AC, 3-phase, 50/60 Hz |
| Motor Power | 7.5 kW (10 HP) |
| Output Frequency | 0.5…400 Hz |
| Control Method | V/F and Sensorless Vector Control |
| Protection Level | IP20 |
| Operating Temperature | -10°C to +50°C |
| Dimensions (H x W x D) | 150 x 171 x 232 mm |
| Weight | 3.7 kg |
| Communication | Modbus embedded |
| Overload Capacity | 150% of rated current for 60 seconds |
Applications
-
Conveyors and material handling systems
-
Pumps and fans in HVAC and water treatment
-
Packaging and textile machines
-
Food & beverage processing lines
-
General purpose industrial machinery
Advantages
-
Compact design for easy panel integration
-
High torque performance at low speed
-
Energy-efficient operation
-
Built-in EMC filter for noise reduction
-
User-friendly interface for quick commissioning
-
Robust operation in demanding environments
FAQ
Q1: What motor types are supported?
A1: Supports three-phase asynchronous (induction) motors.
Q2: Can this drive be used for constant torque applications?
A2: Yes, it is suitable for both constant and variable torque loads.
Q3: Does it support Modbus communication?
A3: Yes, it has embedded Modbus RTU communication.
Q4: What is the overload capacity?
A4: It can handle 150% of rated current for 60 seconds.
Q5: Is it easy to install in control panels?
A5: Yes, its compact size and IP20 protection make it panel-friendly.
Q6: Can it operate in high-temperature environments?
A6: Yes, it can operate at up to +50°C without derating.
Q7: Is there built-in EMC filtering?
A7: Yes, an EMC filter is integrated.
Q8: Does it provide sensorless vector control?
A8: Yes, it supports sensorless vector control for better torque at low speeds.
Q9: What is the maximum output frequency?
A9: Up to 400 Hz.
Q10: Is it compliant with global standards?
A10: Yes, it complies with IEC and other international standards.
Recommended Related Models
| Model | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV310HU15N4E | 1.5 kW | 130 x 150 x 180 | 2.2 kg |
| ATV310HU22N4E | 2.2 kW | 130 x 150 x 180 | 2.4 kg |
| ATV310HU30N4E | 3 kW | 150 x 171 x 232 | 3.0 kg |
| ATV310HU40N4E | 4 kW | 150 x 171 x 232 | 3.2 kg |
| ATV310HU55N4E | 5.5 kW | 150 x 171 x 232 | 3.5 kg |
| ATV310HU90N4E | 9 kW | 180 x 215 x 260 | 4.5 kg |
Popular Schneider Models
| Model | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV12H075M2 | 0.75 kW | 142 x 72 x 129 | 1.0 kg |
| ATV320U22N4B | 2.2 kW | 143 x 73 x 158 | 1.4 kg |
| ATV630D15N4 | 15 kW | 418 x 270 x 232 | 16.0 kg |
| ATV71HU30N4 | 3 kW | 250 x 180 x 180 | 6.8 kg |
| ATV930C13N4 | 132 kW | 970 x 430 x 320 | 90.0 kg |
| ATV212HU30N4 | 3 kW | 220 x 110 x 145 | 4.0 kg |
FAQ
Q1: What motor types are supported?
A1: Supports three-phase asynchronous (induction) motors.
Q2: Can this drive be used for constant torque applications?
A2: Yes, it is suitable for both constant and variable torque loads.
Q3: Does it support Modbus communication?
A3: Yes, it has embedded Modbus RTU communication.
Q4: What is the overload capacity?
A4: It can handle 150% of rated current for 60 seconds.
Q5: Is it easy to install in control panels?
A5: Yes, its compact size and IP20 protection make it panel-friendly.
Q6: Can it operate in high-temperature environments?
A6: Yes, it can operate at up to +50°C without derating.
Q7: Is there built-in EMC filtering?
A7: Yes, an EMC filter is integrated.
Q8: Does it provide sensorless vector control?
A8: Yes, it supports sensorless vector control for better torque at low speeds.
Q9: What is the maximum output frequency?
A9: Up to 400 Hz.
Q10: Is it compliant with global standards?
A10: Yes, it complies with IEC and other international standards.
Recommended Related Models
| Model | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV310HU15N4E | 1.5 kW | 130 x 150 x 180 | 2.2 kg |
| ATV310HU22N4E | 2.2 kW | 130 x 150 x 180 | 2.4 kg |
| ATV310HU30N4E | 3 kW | 150 x 171 x 232 | 3.0 kg |
| ATV310HU40N4E | 4 kW | 150 x 171 x 232 | 3.2 kg |
| ATV310HU55N4E | 5.5 kW | 150 x 171 x 232 | 3.5 kg |
| ATV310HU90N4E | 9 kW | 180 x 215 x 260 | 4.5 kg |
Popular Schneider Models
| Model | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|
| ATV12H075M2 | 0.75 kW | 142 x 72 x 129 | 1.0 kg |
| ATV320U22N4B | 2.2 kW | 143 x 73 x 158 | 1.4 kg |
| ATV630D15N4 | 15 kW | 418 x 270 x 232 | 16.0 kg |
| ATV71HU30N4 | 3 kW | 250 x 180 x 180 | 6.8 kg |
| ATV930C13N4 | 132 kW | 970 x 430 x 320 | 90.0 kg |
| ATV212HU30N4 | 3 kW | 220 x 110 x 145 | 4.0 kg |
