Schneider BMXCPS4002S Redundant Power Supply Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

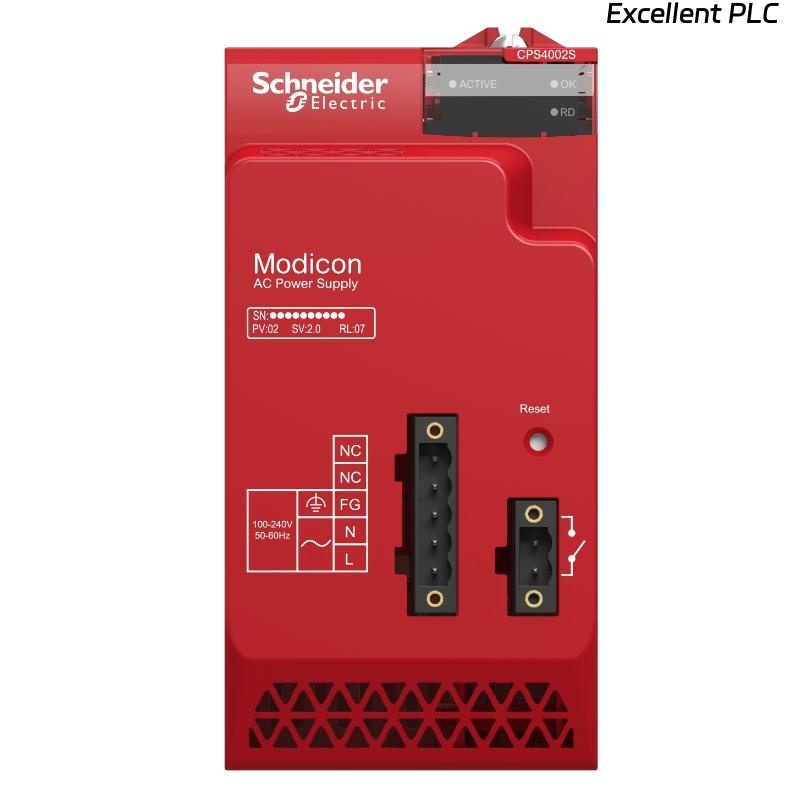

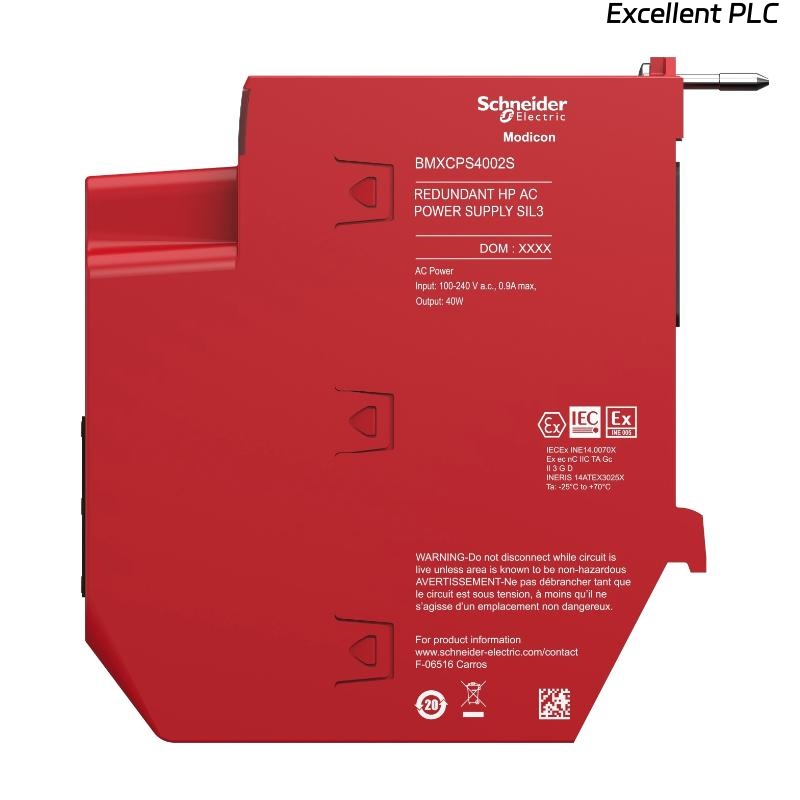

The Schneider BMXCPS4002S Redundant Power Supply Module is a safety-rated power supply designed for high-reliability industrial automation systems. Developed by Schneider Electric, it belongs to the Modicon X80 series, which provides a unified I/O platform for both Modicon M340 and Modicon M580 controllers.
This module is engineered to deliver stable and redundant power in critical applications where system continuity is essential. It supports a wide primary voltage range of 100 to 240V AC and provides regulated DC outputs for control system operation. Its redundant design enhances system availability by minimizing downtime risks associated with power failures.
With robust construction and compliance with multiple international standards, the BMXCPS4002S is suitable for use in demanding industrial environments, including infrastructure, energy, and process industries. The module is designed for easy integration into X80 racks and must be installed in the dedicated leftmost CPS slot for proper operation.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | BMXCPS4002S |
| Brand | Schneider Electric |
| Product Type | Redundant Power Supply Module (Safety) |
| Series | Modicon X80 |
| Primary Voltage | 100 to 240 V AC |
| Secondary Power Output | 40 W at 24 V DC |
| Secondary Current (3.3V DC) | 4.5 A |
| Maximum Power Dissipation | 8.5 W |
| Input Connector | 5-pin connector for line supply |
| Alarm Output | 2-pin connector for relay |
| Protective Earth | Yes |
| Protection Rating | IP20 |
| Certifications | CE, RCM, CSA, EAC, UL, Merchant Navy |
| Standards Compliance | EN 61131-2, EN 61000-6-5, EN 61850-3, EN 61010-2-201 |
| Installation Position | Leftmost CPS slot in rack |
| Compatibility | Modicon M340 / M580, X80 racks |
| Included Accessories | 5-way and 2-way removable terminal blocks |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.51 kg |
Applications
• Smart Infrastructure Systems – Ensures stable and redundant power supply for building automation and infrastructure control systems.
• Water and Wastewater Treatment – Supports continuous operation of control systems in critical process environments.
• Power Generation Facilities – Provides reliable power for control and monitoring systems in energy production plants.
• Mining, Minerals and Metals – Designed for harsh industrial environments requiring high system availability.
• Data Centers – Enhances reliability of automation and monitoring systems with redundant power support.
• Consumer Packaged Goods Industry – Maintains consistent operation of automated production lines.
Advantages
• Redundant Power Capability – Ensures high system availability by supporting backup power configurations.
• Wide Input Voltage Range – Compatible with global power systems, simplifying deployment across regions.
• Stable DC Output – Provides regulated and reliable power for sensitive control modules.
• Robust Industrial Design – Built to withstand demanding environments with high electrical and mechanical reliability.
• Comprehensive Certifications – Meets multiple international standards for safety and performance.
• Easy Integration – Designed for seamless installation in Modicon X80 racks with dedicated CPS slots.
FAQ
- What is the main function of the BMXCPS4002S module?
It provides regulated and reliable power to Modicon X80 racks and supports redundant configurations to improve system availability in critical applications. - How does redundancy work in this power supply module?
Two power supply modules can be installed in the system to ensure that if one fails, the other continues supplying power without interrupting operation. - What type of input power does the module accept?
It accepts a wide AC input range from 100V to 240V, making it suitable for use in different regions and industrial environments. - What outputs are provided by this module?
It delivers 24V DC output power and supports internal system voltages such as 3.3V DC for rack operation. - Is the module suitable for safety-critical applications?
Yes, it is designed as a safety power supply and complies with multiple industrial safety and EMC standards. - What is the correct installation position in the rack?
The module must be installed in the leftmost slot of the rack, specifically marked for CPS modules, to ensure proper functionality. - How is fault indication handled?
The module includes a relay output via a 2-pin connector that can be used for alarm signaling in case of faults or abnormal conditions. - Can the module operate in harsh industrial environments?
Yes, it is designed to operate reliably in demanding conditions such as power plants, mining sites, and industrial facilities. - What type of protection does the module provide?
It offers electrical protection features and complies with IP20 rating, making it suitable for installation within control cabinets. - Does the module require special grounding?
Yes, proper protective earth connection is required to ensure safety and optimal performance during operation.
Related Models
| Model | Description |
|---|---|
| BMXCPS2000 | Standard power supply module for X80 |
| BMXCPS3500 | Higher capacity power supply module |
| BMXCPS2010 | Compact power supply variant |
| BMXCPS3020 | Mid-range power supply module |
| BMXCPS4001S | Non-redundant safety power supply |
| BMXCPS4022S | Advanced redundant power supply module |
Popular Models
| Model | Description |
|---|---|
| BMXP342020 | Modicon M340 processor module |
| BMEP584040 | Modicon M580 CPU module |
| BMXDDI1602 | Digital input module |
| BMXDDO1602 | Digital output module |
| BMXAMI0810 | Analog input module |
| BMXAMO0410 | Analog output module |
