Product Introduction

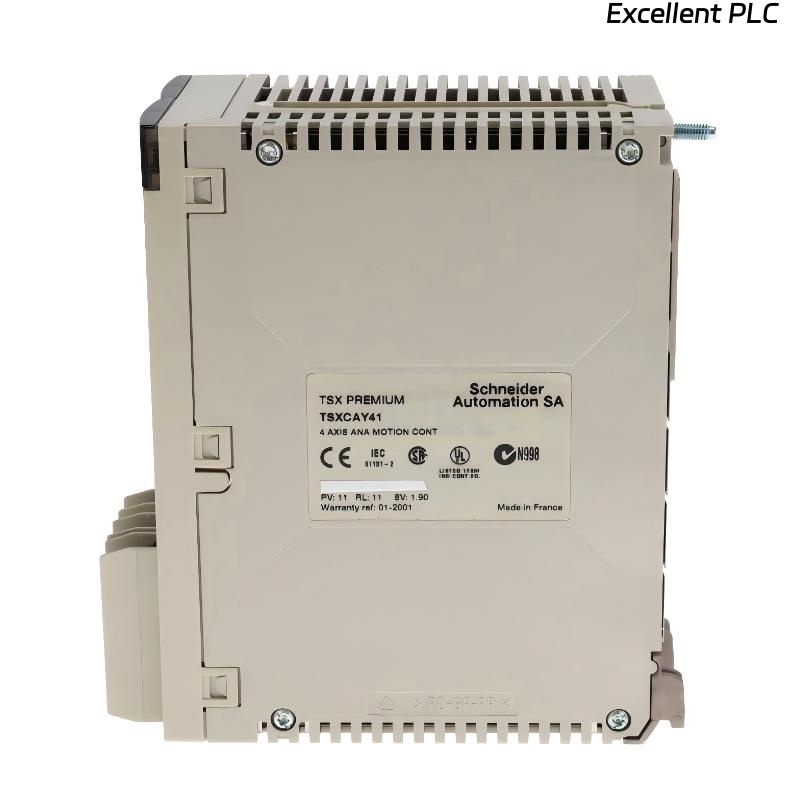

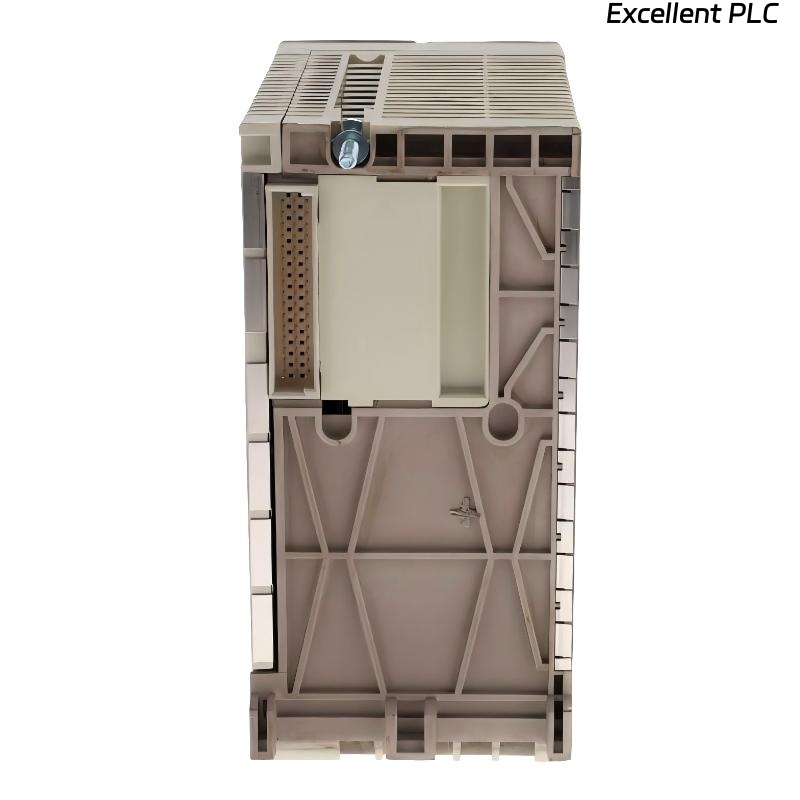

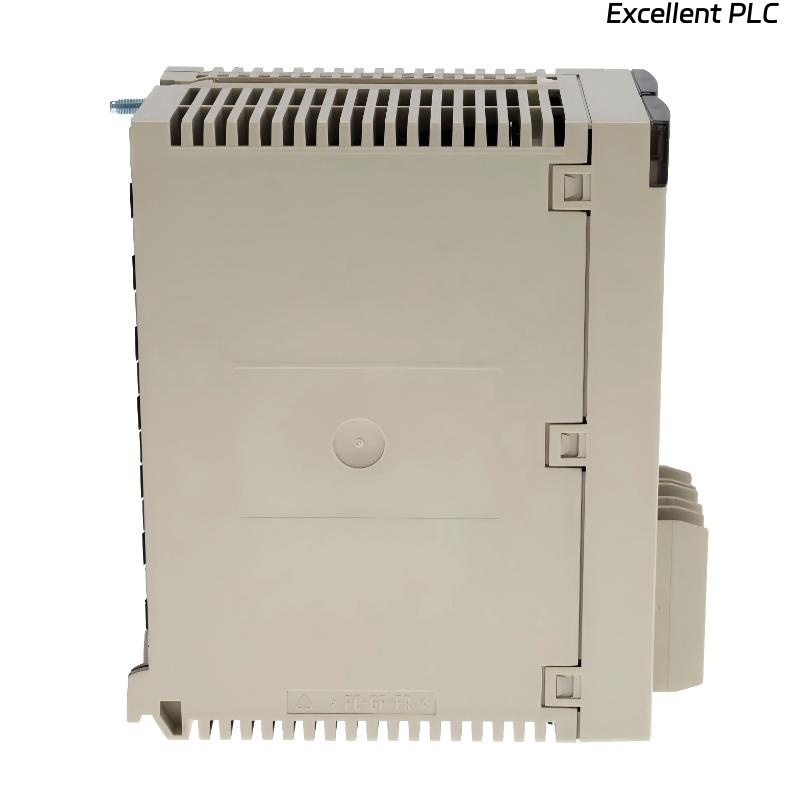

The Schneider TSXCAY41 is a dedicated motion control module designed for precise multi-axis analog control within industrial automation systems. As part of the Modicon TSX series, this module is engineered to handle coordinated motion tasks where accuracy, repeatability, and response time are critical.
It supports 4-axis analog control, making it suitable for applications requiring synchronized positioning, speed regulation, and trajectory control. The module interfaces seamlessly with programmable logic controllers (PLCs), allowing integration into complex control architectures without additional overhead.
With configurable cycle times ranging from milliseconds to several seconds, the TSXCAY41 provides flexibility for both high-speed dynamic motion and slower, process-oriented control tasks. Its robust design ensures reliable operation in standard industrial environments, including temperature variations and continuous duty cycles.
The module is commonly deployed in manufacturing lines, packaging systems, and material handling equipment where coordinated motion is essential for productivity and quality control.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | TSXCAY41 |
| Manufacturer | Schneider Electric |
| Module Type | Motion Control Module |
| Control Type | 4-Axis Analog Control |
| Supply Voltage | 24 VDC |
| Cycle Time | 8 ms to 10 s |
| Operating Temperature | 0 to +60 °C |
| Compatibility | Modicon TSX Series PLC |
| Mounting Type | Rack-mounted |
| Communication Interface | Backplane Bus |
| Dimensions | 179.9 × 80.7 × 99.5 mm |
| Weight | 0.61 kg |
Applications
● Multi-axis positioning systems in automated production lines, where synchronized movement improves accuracy and throughput
● Packaging machinery, enabling coordinated motion of conveyors, feeders, and sealing units
● Material handling equipment, including pick-and-place systems and robotic transfer units
● CNC and semi-CNC machinery, supporting analog-driven motion control requirements
● Assembly automation, where precise timing and axis coordination are essential
● Process control environments, integrating motion with continuous process variables
Advantages
● 4-axis integrated control capability, reducing the need for multiple modules and simplifying system design
● Flexible cycle time configuration, allowing adaptation to both high-speed and slower control applications
● Stable analog output performance, ensuring smooth and precise motion control
● Seamless PLC integration, minimizing engineering effort during system setup and commissioning
● Robust industrial design, capable of operating reliably in harsh temperature conditions
● Improved system efficiency, through synchronized motion and reduced control latency
